61-16KS01 (C-160) - Toro Lawn Tractor (1976) 6.000 BRAKE, CLUTCH, SPEED CONTROL LINKAGE Parts Diagram

Lawn Tractor

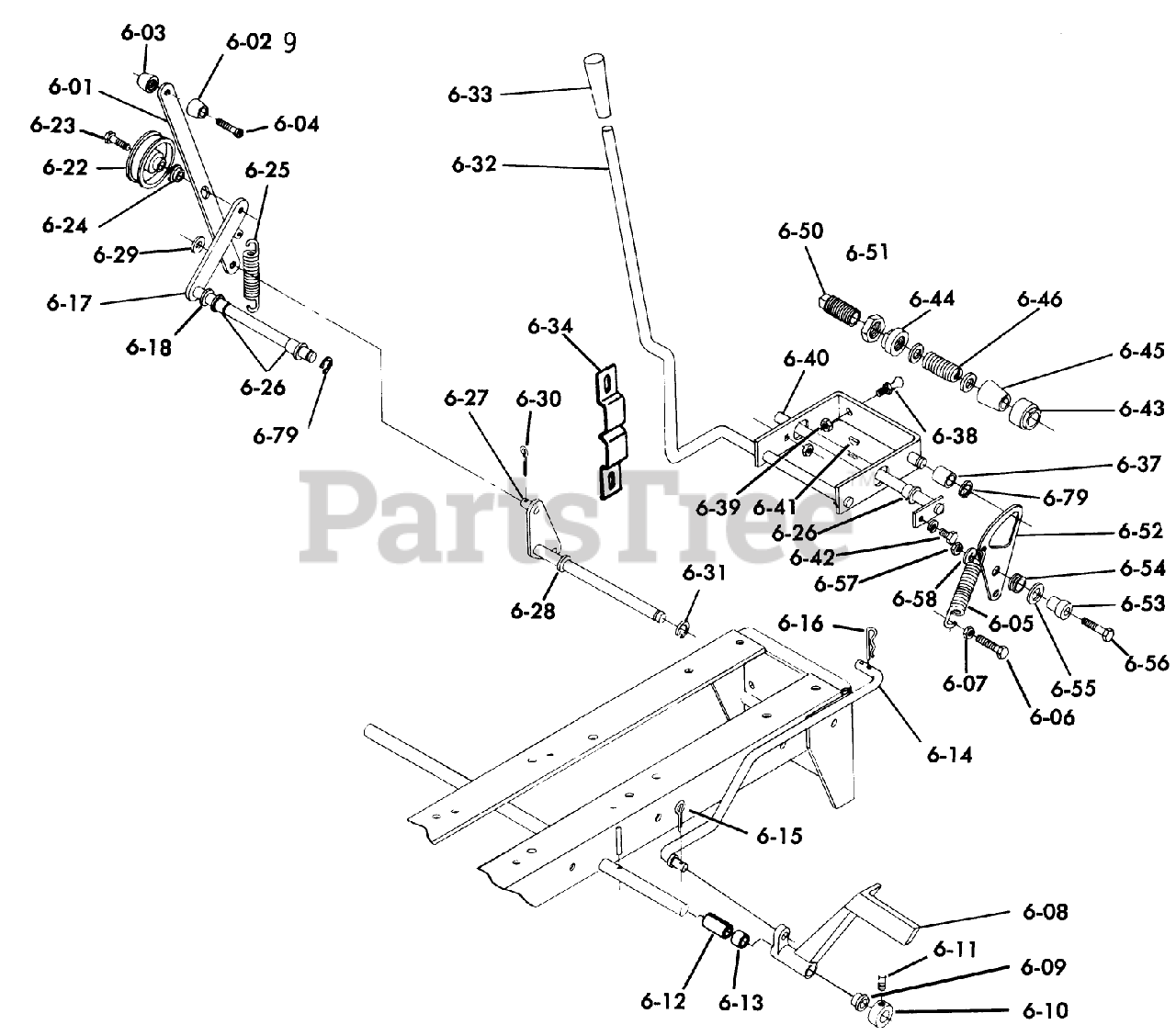

6.000 BRAKE, CLUTCH, SPEED CONTROL LINKAGE Parts Diagram

  • Title

6-01

Toro 100634

HANDLE R (NS)

$

$

Not available

6-02

Toro 8693

KNOB

$6.99

$

In Stock, Qty 9

0

6-03

Toro 8722

KNOB

$21.99

$

In Stock, only 3 left!

0

6-04

Toro 910797

Machine Screw
(Superseded to 3250-23)

$3.49

$

Usually ships in 3-6 days

0

6-05

Toro 1230

Spring

$

$

Not available

6-06

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

6-07

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

6-08

Toro 102747

PEDAL R

$

$

Not available

6-09

Toro 6254

BUSHING

$20.99

$

In Stock, only 2 left!

0

6-10

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

6-11

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

6-13

Toro 4064

Spacer
(Superseded to 703269)

$122.99

$

Usually ships in 3-6 days

0

6-14

Toro 6113

Gasket

$

$

Not available

6-15

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

6-16

Toro 933503

USE 933503P PIN

$5.99

$

Usually ships in 3-6 days

0

6-17

Toro 6130

Idler Arm

$

$

Not available

6-18

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

6-18

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

6-18

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

6-18

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

6-22

Toro 7434

Idler Pulley
(Superseded to 112426)

$26.99

$

In Stock, only 1 left!

0

6-23

Toro 911404

HEX HD CAP SCREW

$0.99

$

In Stock, Qty 7

0

6-24

Toro 7435

SPACER-BRAKE LINK

$

$

Not available

6-25

Toro 9170

SPRING-EXTENSION

$

$

Not available

6-26

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

6-27

Toro 7474

ever Brake

$

$

Not available

6-28

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

6-29

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

6-30

Toro 932001

Cotter Pin
(Superseded to 327-22)

$13.99

$

Usually ships in 3-6 days

0

6-31

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

6-32

Toro 103891

Cam Control

$

$

Not available

6-33

Toro 6129

KNOB

$12.99

$

Usually ships in 3-6 days

0

6-34

Toro 103996

SPRING-DETENT

$

$

Not available

6-34

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

6-34

Toro 926694

SCREW

$

$

Not available

6-37

Toro 100656

BEARING-CAM RETURN

$6.49

$

In Stock, Qty 5

0

6-38

Toro 6127

PIN

$

$

Not available

6-39

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

6-40

Toro 7604

Cam Pivot Rod
(Superseded to 741211)

$253.99

$

Usually ships in 3-6 days

0

6-41

Toro 937007

WOODRUFF KEY

$

$

Not available

6-42

Toro 926694

SCREW

$

$

Not available

6-43

Toro 7599

FRICTION COLLAR

$

$

Not available

6-44

Toro 7601

COLLAR BRKT PIVOT

$

$

Not available

6-45

Toro 7600

FRICTION CONE

$

$

Not available

6-46

Toro 7602

SPRING FRICTION

$

$

Not available

6-50

Toro 7603

Collar Friction

$

$

Not available

6-51

Toro 915241

NUT

$1.99

$

Usually ships in 3-6 days

0

6-52

Toro 6142

Cam Plate

$

$

Not available

6-53

Toro 6143

Spacer

$

$

Not available

6-54

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 16

0

6-55

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

6-56

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

6-57

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

6-58

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

6-12

Toro 979207

SPACER

$

$

Not available

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

6-47

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

6-47

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0
