61-16KS01 (C-160) - Toro Lawn Tractor (1976) 10.000 FUEL AND EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

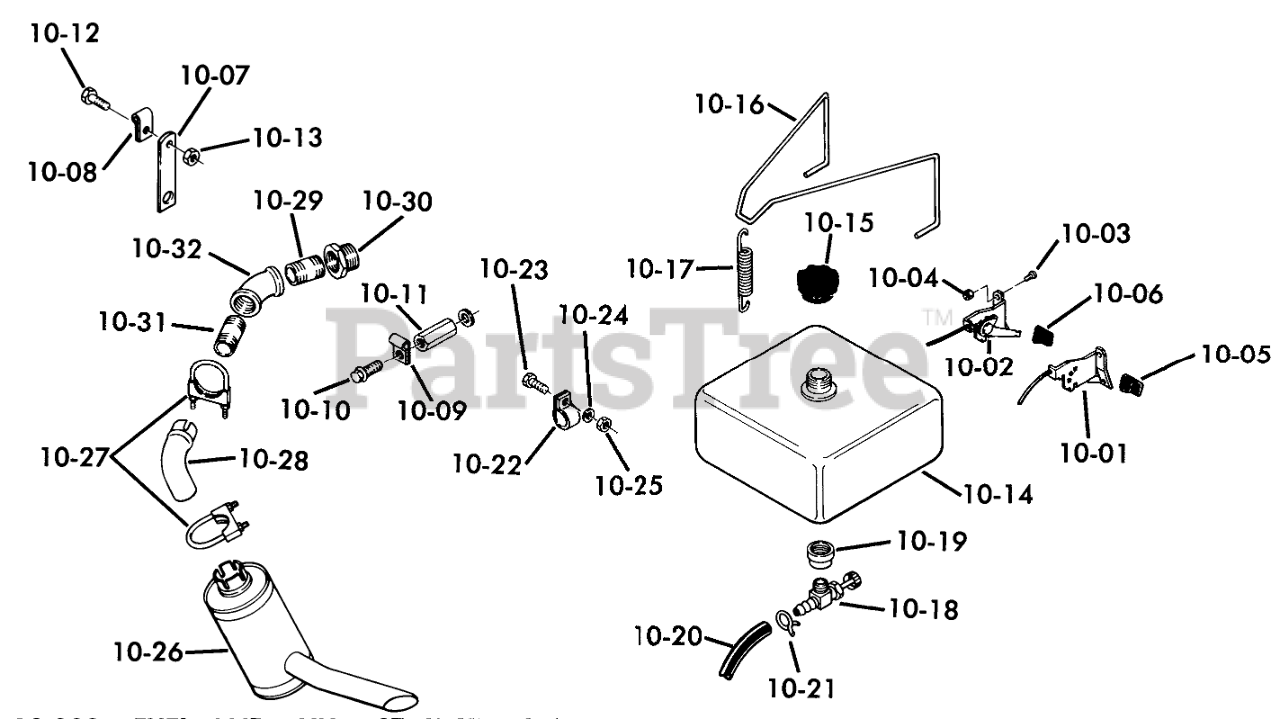

10.000 FUEL AND EXHAUST SYSTEMS Parts Diagram

  • Title
10-01

Toro 101837

Choke Control
(Superseded to 106752)

$

$

Not available

10-02

Toro 101834

THROTTLE CONTROL

$142.99

$

In Stock, only 1 left!

0

10-03

Toro 8713

SCREW

$

$

Not available

10-04

Toro 915964

#10-24 Kep-Nut
(Superseded to 32149-7)

$0.99

$

In Stock, only 3 left!

0

10-05

Toro 102186

KNOB-CHOKE

$18.99

$

In Stock, Qty 7

0

10-06

Toro 102185

KNOB-THROTTLE

$18.99

$

Usually ships in 3-6 days

0

10-07

Toro 100452

Strap

$

$

Not available

10-08

Toro 100729

THROTTLE CONTROL CLP

$6.99

$

Usually ships in 3-6 days

0

10-09

Toro 2879

Clip
(Superseded to 7922)

$3.99

$

Usually ships in 3-6 days

0

10-10

Toro 960150

Screw
(Superseded to 3234-26)

$3.49

$

In Stock, Qty 15

0

10-11

Toro 5431

Special Nut

$

$

Not available

10-12

Toro 960150

Screw
(Superseded to 3234-26)

$3.49

$

In Stock, Qty 15

0

10-13

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

10-14

Toro 104065

ASSY-FUEL TANK

$

$

Not available

10-15

Toro 102321

Cap
(Superseded to 108011)

$61.99

$

In Stock, only 1 left!

0

10-16

Toro 100427

HOLD DOWN WIRE

$10.99

$

In Stock, only 1 left!

0

10-17

Toro 6949

CLUTCH SPRING

$

$

Not available

10-18

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

10-19

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

10-20

Toro 8214

Fuel Hose
(Superseded to 110521)

$

$

Not available

10-21

Toro 950154

Clamp

$

$

Not available

10-22

Toro 101861

CLAMP-HOSE

$

$

Not available

10-23

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

10-24

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

10-25

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

10-26

Toro 105255

MUFFLER

$

$

Not available

10-27

Toro 102645

ASSY-MUFFLER CLAMP

$15.99

$

In Stock, only 1 left!

0

10-28

Toro 102228

MUFFLER INLET TUBE

$

$

Not available

10-29

Toro 102265

NIPPLE

$

$

Not available

10-30

Toro 943151

REDUCER 1 1/4-1

$

$

Not available

10-31

Toro 943364

Nipple 1" Pipe

$

$

Not available

10-32

Toro 943046

ELBOW

$

$

Not available
