61-16KS01 (C-160) - Toro Lawn Tractor (1976) 1.000 TRANSAXLE Parts Diagram

Lawn Tractor

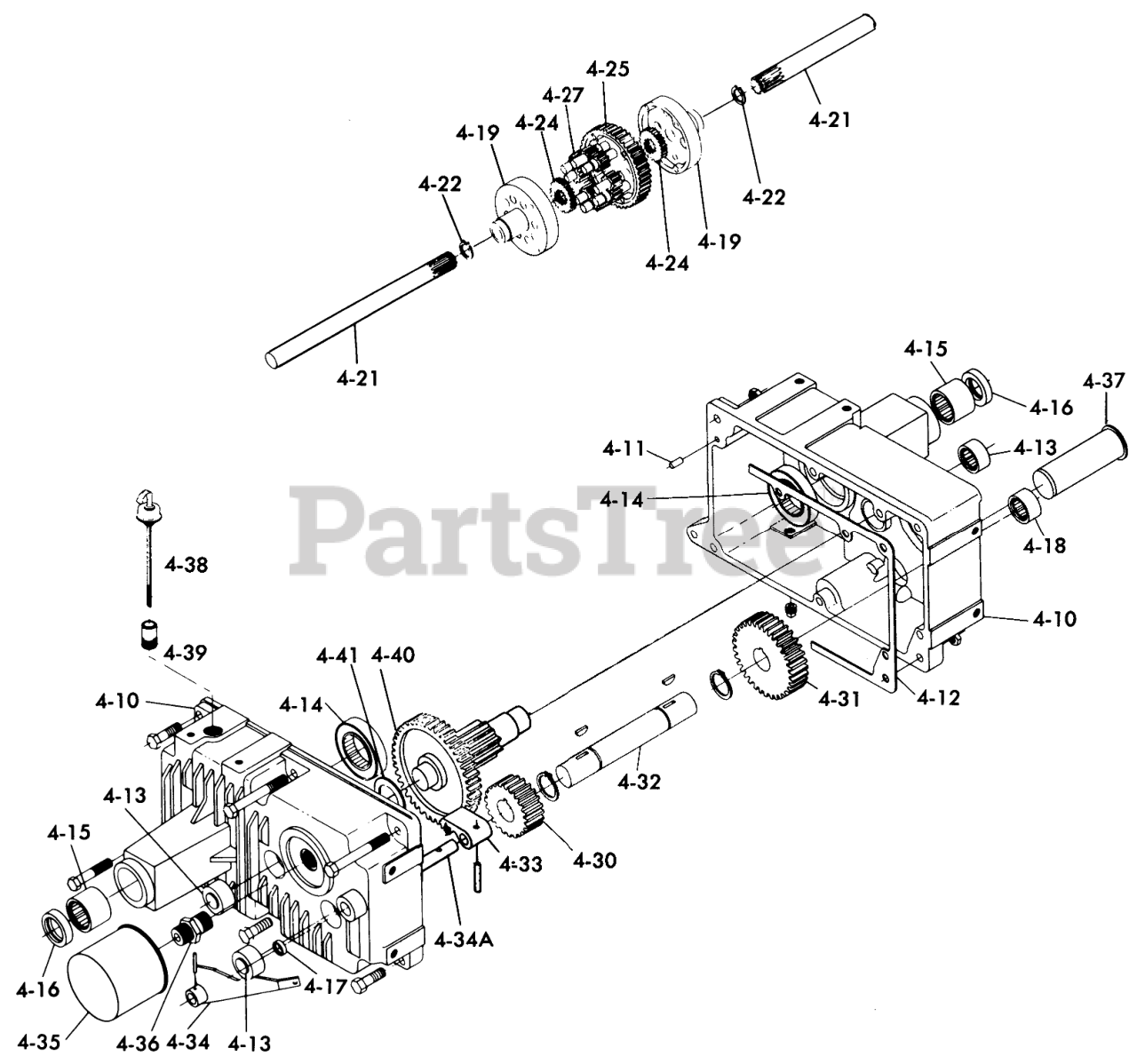

1.000 TRANSAXLE Parts Diagram

  • Title

Toro 103640

Transmission Gearcase Assembly

$

$

Currently unavailable

4-10

Toro 103636

RH TRANSMISSION CASE

$

$

Not available

4-10

Toro 102617

Case LH

$

$

Not available

4-10

Toro 943460

PLUG 1/4 PIPE ALLEN
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

4-10

Toro 908143

H H C S
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

4-10

Toro 908043

HHCS
(Superseded to 323-15)

$1.99

$

In Stock, only 4 left!

0

4-10

Toro 908040

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

4-10

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

4-10

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

4-10

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

4-10

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

4-11

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

4-12

Toro 5999

GASKET

$

$

Not available

4-13

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

4-14

Toro 1533

BALL BRG 1 1/2 I.D.

$

$

Not available

4-15

Toro 1526

Bearing-Axle

$

$

Not available

4-16

Toro 6449

SEAL-OIL

$24.99

$

In Stock, only 1 left!

0

4-17

Toro 5959

SEAL BRAKE SHAFT

$

$

Not available

4-18

Toro 8049

Needle Bearing
(Superseded to 5960)

$

$

Not available

4-19

Toro 105060

DIFFERENTIAL END CAP

$256.99

$

Usually ships in 3-6 days

0

4-19

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, only 1 left!

0

4-19

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

4-21

Toro 102764

Axle
(Superseded to 99-5359)

$

$

Not available

4-22

Toro 7169

SNAP RING

$

$

Not available

4-24

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

4-25

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1209.99

$

Usually ships in 3-6 days

0

4-27

Toro 101623

GEAR-PINION, 11T

$116.99

$

Usually ships in 3-6 days

0

4-30

Toro 102782

GEAR 24T

$

$

Not available

4-31

Toro 101885

Gear 44T

$

$

Not available

4-32

Toro 5965

SHAFT GEAR

$

$

Not available

4-32

Toro 936131

Snap Ring
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 15

0

4-32

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 5

0

4-33

Toro 103888

PAWL PARKING

$

$

Not available

4-34

Toro 103496

Brake Lever

$

$

Not available

4-34A

Toro 104348

Shaft

$

$

Not available

4-34A

Toro 933152

Pin-Roll
(Superseded to 32121-50)

$3.49

$

In Stock, only 3 left!

0

4-34A

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

4-35

Toro 102819

Filter
(Superseded to 79-5270)

$21.99

$

In Stock, only 1 left!

0

4-36

Toro 5991

FITTING

$

$

Not available

4-37

Toro 5992

Strainer
(Superseded to 106047)

$

$

Not available

4-38

Toro 101847

Dipstick
(Superseded to 101847-03)

$

$

Not available

4-39

Toro 105209

Nipple
(Superseded to 107968)

$

$

Not available

4-40

Toro 102865

GEAR ASSY

$

$

Not available

4-40

Toro 103395

PINION SHAFT

$

$

Not available

4-40

Toro 102781

Gear-42T

$

$

Not available

4-41

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0
