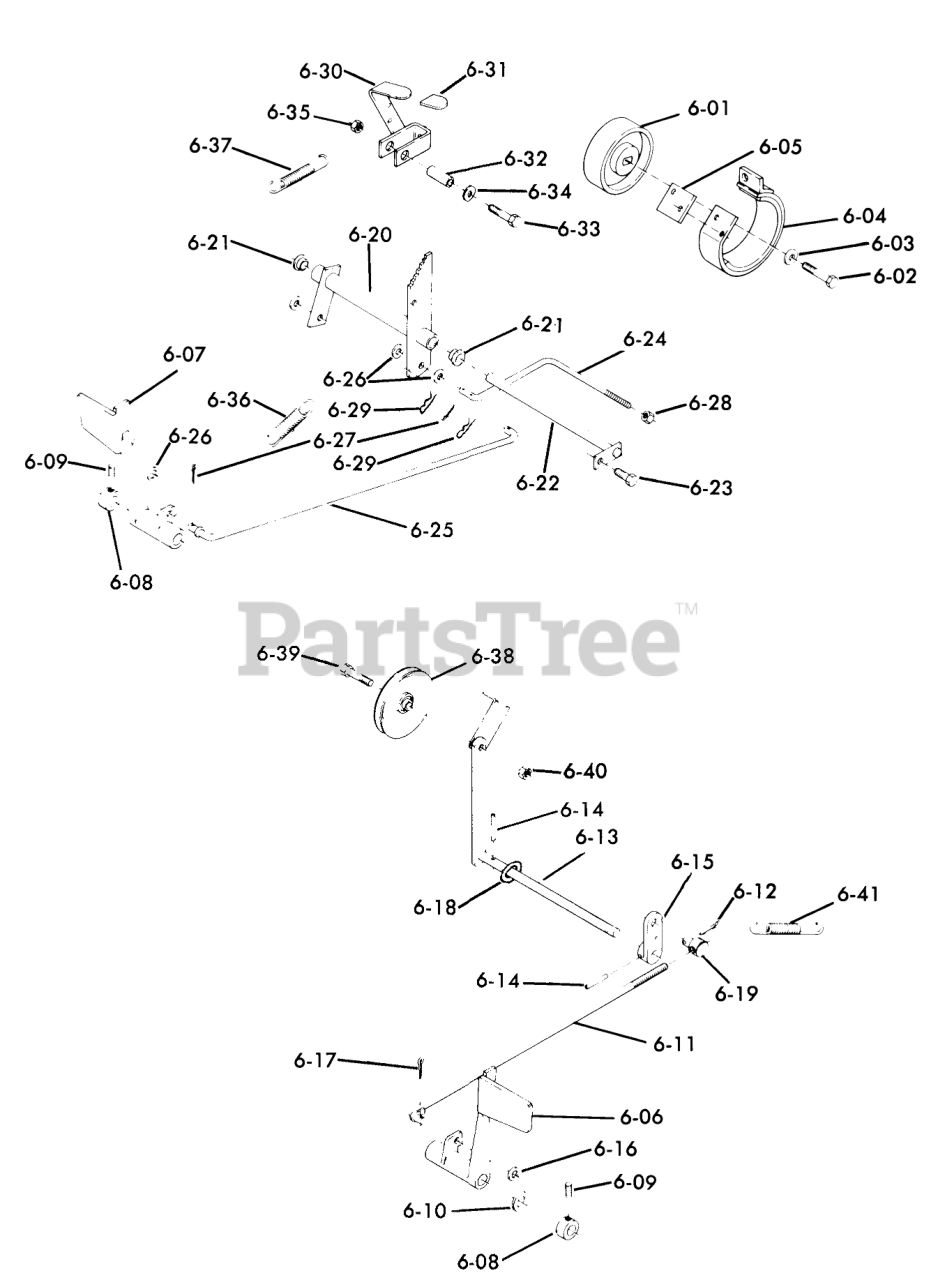

61-16K804 (C-160) - Toro Lawn Tractor (1976) BRAKE/CLUTCH LINKAGE Parts Diagram

Lawn Tractor

BRAKE/CLUTCH LINKAGE Parts Diagram

  • Title

6-01

Toro 102717

Brake Drum
(Superseded to 106719)

$109.99

$

Usually ships in 3-6 days

0

6-02

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

6-03

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

6-04

Toro 9593

BRAKE BAND ASM

$156.99

$

In Stock, only 4 left!

0

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

6-05

Toro 9598

Plate-Stop
(Superseded to 94-6696-03)

$10.99

$

Usually ships in 3-6 days

0

6-06

Toro 103599

Clutch Pedal

$

$

Not available

6-07

Toro 103323

PEDAL-BRAKE R

$

$

Not available

6-08

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

6-09

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

6-10

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 1 left!

0

6-11

Toro 103347

ROD AND GUIDE ASM

$58.99

$

Usually ships in 3-6 days

0

6-12

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

6-13

Toro 105390

Idler Arm Assembly

$

$

Not available

6-14

Toro 933267

PIN-SPIROL

$1.49

$

In Stock, Qty 11

0

6-15

Toro 104404

Clutch Pivot Arm

$

$

Not available

6-16

Toro 920248

WASHER-NYLON

$1.49

$

Usually ships in 3-6 days

0

6-17

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

6-18

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

6-19

Toro 104456

Stud

$

$

Not available

6-20

Toro 103543

Bellcrank Assy
(Superseded to 103543-03)

$

$

Not available

6-21

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

6-22

Toro 104053

Rod Assy

$

$

Not available

6-23

Toro 926694

SCREW

$

$

Not available

6-24

Toro 103538

Brake Rod
(Superseded to 105900)

$60.99

$

Usually ships in 3-6 days

0

6-25

Toro 105886

ROD

$

$

Not available

6-26

Toro 920248

WASHER-NYLON

$1.49

$

Usually ships in 3-6 days

0

6-27

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

6-28

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 16

0

6-29

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

6-30

Toro 104069

Brake Lever Assy

$

$

Not available

6-31

Toro 6820

GRIP

$2.99

$

In Stock, only 2 left!

0

6-32

Toro 102025

SPACER

$

$

Not available

6-33

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

6-34

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

6-35

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

6-36

Toro 9111

Spring
(Superseded to 107677)

$16.99

$

In Stock, Qty 11

0

6-37

Toro 103628

SPRING-EXTENSION

$12.99

$

In Stock, only 1 left!

0

6-38

Toro 7451

PULLEY-IDLER
(Superseded to 95-7668)

$25.99

$

In Stock, only 1 left!

0

6-39

Toro 911404

HEX HD CAP SCREW

$0.99

$

In Stock, Qty 7

0

6-40

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

6-41

Toro 1014

Spring

$

$

Not available
