61-16K803 (C-160) - Toro Lawn Tractor (1976) KOHLER 7 H.P. ENGINE K161T, SPEC 281269J Parts Diagram

Lawn Tractor

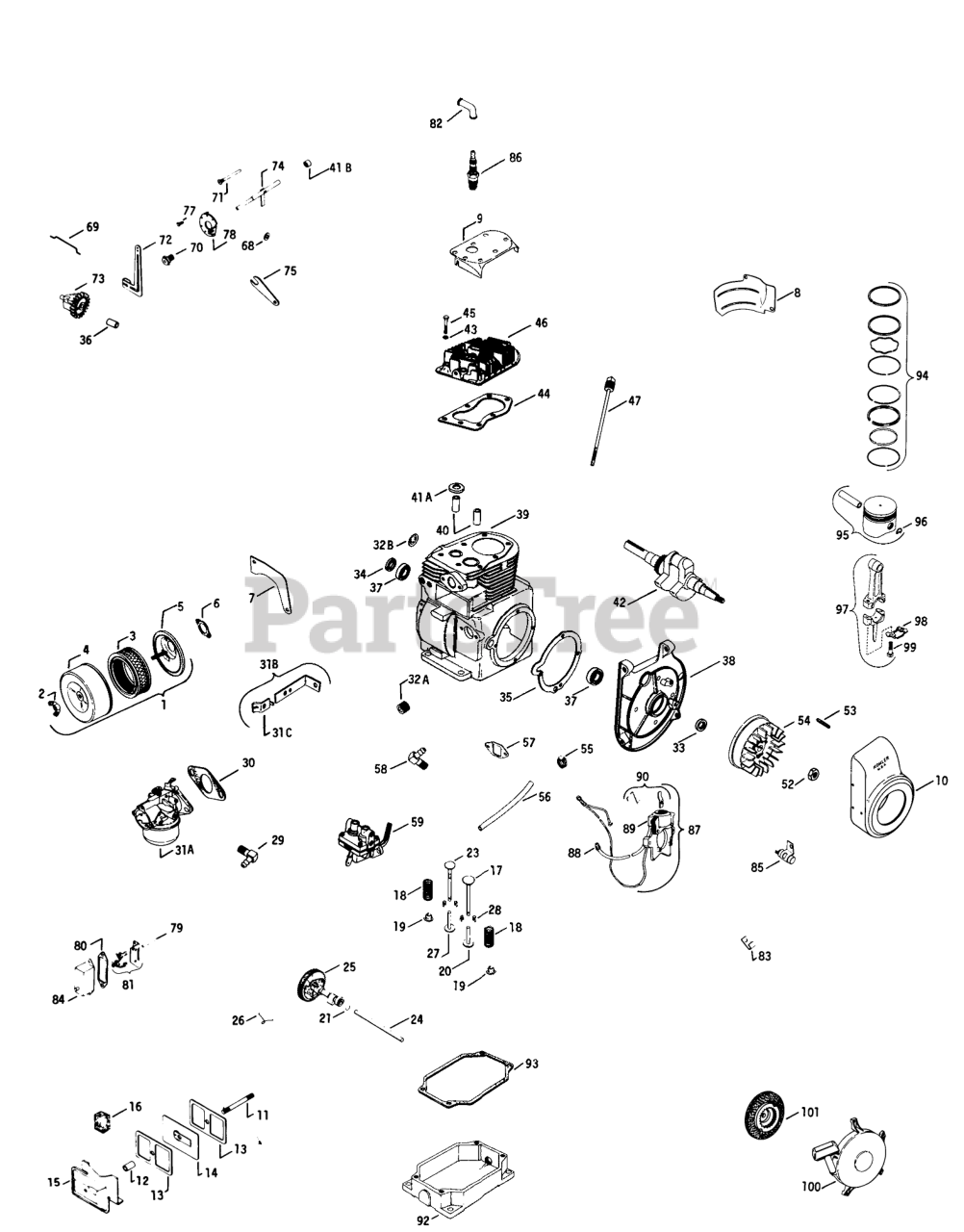

KOHLER 7 H.P. ENGINE K161T, SPEC 281269J Parts Diagram

  • Title

1

Kohler A-230837

Cleaner, air-assembly
(Superseded to A-230837-S)

$

$

Not available

2

Kohler X-276-7

Nut-Wing
(Superseded to X-276-7-S)

$

$

Not available

3

Kohler 230840

Element, Air Cleaner
(Superseded to 230840-S)

$34.99

$

In Stock, only 3 left!

0

4

Kohler 230839

Cover, air cleaner
(Superseded to 230839-S)

$

$

Not available

5

Kohler 230838

Base Air Cleaner
(Superseded to 230838-S)

$

$

Not available

6

Kohler 220537

Gasket
(Superseded to 41 041 11)

$3.49

$

In Stock, Qty 10

0

7

Kohler 230757

Baffle side air
(Superseded to 230757-S)

$25.99

$

Usually ships in 2-5 days

0

8

Kohler 234795

Baffle cylinder
(Superseded to 234795-S)

$19.99

$

Usually ships in 2-5 days

0

9

Kohler 234796

Baffle, Head
(Superseded to 234796-S)

$32.99

$

Usually ships in 2-5 days

0

10

Toro 41-027-21

Housing, blower

$

$

Currently unavailable

11

Kohler 230043

Stud valve cover
(Superseded to 230043-S)

$

$

Not available

12

Kohler 230046

Seal
(Superseded to 230046-S)

$6.49

$

In Stock, only 1 left!

0

13

Kohler 230048

Gasket-Valve Cover
(Superseded to 230048-S)

$7.49

$

In Stock, Qty 7

0

14

Kohler 230066

Breather
(Superseded to 230066-S)

$

$

Not available

15

Kohler A-234678

Cover, Valve
(Superseded to 230774)

$35.99

$

Usually ships in 2-5 days

0

16

Kohler 231419

Filter
(Superseded to 231419-S)

$8.49

$

In Stock, Qty 6

0

17

Kohler 230008

Valve-Intake
(Superseded to 230008-S)

$

$

Not available

18

Kohler 230010

Spring, Valve
(Superseded to 230010-S)

$8.99

$

In Stock, only 1 left!

0

19

Kohler 230011

Retainer-Spring
(Superseded to 230011-S)

$9.49

$

In Stock, Qty 6

0

20

Kohler 230013

Tappet, Valve
(Superseded to 230013-S)

$

$

Not available

21

Kohler 230293

Spacer camshaft .005
(Superseded to 230293-S)

$7.49

$

Usually ships in 2-5 days

0

21

Kohler 230294

Spacer, Camshaft.010
(Superseded to 230294-S)

$

$

Not available

23

Kohler 230710

Valve, exhaust
(Superseded to 230710-S)

$70.99

$

In Stock, only 2 left!

0

24

Kohler 230053

Pin, Camshaft
(Superseded to 41 380 03-S)

$

$

Not available

25

Kohler A-230155-S

Kit, camshaft

$

$

Not available

26

Toro 47-089-01

Spring

$

$

Currently unavailable

27

Toro 23127771

Tappet, exhaust valve

$

$

Currently unavailable

28

Toro 24100131

Keeper, spring

$

$

Currently unavailable

29

Kohler X-391-1

Elbow
(Superseded to 25 155 02-S)

$14.99

$

In Stock, only 1 left!

0

30

Kohler 210223

Gasket-Carburetor
(Superseded to 210223-S)

$8.99

$

Usually ships in 2-5 days

0

31A

Kohler G-230500

Carburetor-Assembly
(Superseded to 41 053 13)

$367.99

$

Usually ships in 2-5 days

0

31A

Kohler 231555

Repairkit
(Superseded to 25 757 01-S)

$22.99

$

In Stock, Qty 6

0

31B

Kohler A-236921

Bracket, choke
(Superseded to A-236921-S)

$

$

Not available

31C

Kohler 235778

Clip
(Superseded to 235778-S)

$10.99

$

Usually ships in 2-5 days

0

32A

Kohler X-75-3

Plug
(Superseded to X-75-3-S)

$

$

Not available

32B

Kohler X-230-11

Plug
(Superseded to X-230-11-S)

$2.99

$

In Stock, only 2 left!

0

33

Kohler X-583-1

Seal Front Oil
(Superseded to X-583-1-S)

$11.99

$

In Stock, only 2 left!

0

34

Kohler X-583-2

Seal Rear Oil
(Superseded to X-583-2-S)

$11.99

$

In Stock, only 1 left!

0

35

Kohler 230071

Gasket
(Superseded to 230071-S)

$11.99

$

Usually ships in 2-5 days

0

36

Kohler 230125-S

Pin-Dowel

$41.99

$

Usually ships in 2-5 days

0

37

Kohler 231625

Ball Bearing
(Superseded to 231625-S)

$70.99

$

In Stock, only 1 left!

0

38

Toro 41-156-02

Plate, bearing

$

$

Currently unavailable

39

Block, cylinder-assembly (Use B-234989 Miniblock)

$

$

Not available

40

Kohler 230007-S

Guide-Valve

$25.99

$

Usually ships in 2-5 days

0

41A

Kohler 230170

Insert
(Superseded to 230170-S)

$

$

Not available

41B

Kohler 234866

Bearing
(Superseded to 234866-S)

$9.99

$

Usually ships in 2-5 days

0

42

Kohler 230450

Crankshaft
(Superseded to 230450-S)

$741.99

$

Usually ships in 2-5 days

0

43

Kohler 220534

Washer
(Superseded to 220534-S)

$5.49

$

In Stock, Qty 5

0

44

Kohler 230024

Gasket, head
(Superseded to 41 041 10)

$18.99

$

Usually ships in 2-5 days

0

45

Kohler 230175

Screw, H.C. 5/16-18 x 1-1/2
(Superseded to 41 086 02)

$8.49

$

In Stock, only 4 left!

0

46

Kohler 230402

Head, Cylinder
(Superseded to 41 755 25)

$

$

Not available

47

Kohler A-230092

Dipstick
(Superseded to 230092-S)

$31.99

$

In Stock, only 1 left!

0

52

Kohler X-119-14

Nut
(Superseded to 25 100 02-S)

$

$

Not available

53

Kohler X-286-15

Key
(Superseded to X-286-17-S)

$3.49

$

In Stock, only 1 left!

0

54

Toro 41-025-01

Flywheel (Use 41025 11 after serial no. 6366215)

$

$

Currently unavailable

55

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

56

Kohler X-697-6

Line, Fuel
(Superseded to X-697-4)

$

$

Not available

57

Toro 47-041-01

Gasket, fuel pump

$

$

Currently unavailable

58

Kohler X-391-1

Elbow
(Superseded to 25 155 02-S)

$14.99

$

In Stock, only 1 left!

0

59

Kohler C-230361

Pump, fuel
(Superseded to 41 559 01-S)

$190.99

$

In Stock, only 2 left!

0

68

Kohler X-25-58

Washer
(Superseded to X-25-58-S)

$3.99

$

Usually ships in 2-5 days

0

69

Kohler 230078

Link-Governor
(Superseded to 230078-S)

$22.99

$

In Stock, only 2 left!

0

70

Kohler 230476

Bushing Governor
(Superseded to 230476-S)

$

$

Not available

71

Kohler 231355

Pin-GovemorStop
(Superseded to 231355-S)

$10.99

$

Usually ships in 2-5 days

0

72

Kohler A-234178

Lever, Governor
(Superseded to A-234178-S)

$

$

Not available

73

Kohler A-237031

Gear, Governor
(Superseded to A-235743-S)

$79.99

$

Usually ships in 2-5 days

0

74

Kohler 230540-S

Shaft-Governor Cross

$116.99

$

Usually ships in 2-5 days

0

75

Kohler 230557

Bracket, speed control
(Superseded to 230477-S)

$

$

Not available

77

Kohler X-67-5

Pin
(Superseded to X-67-5-S)

$2.49

$

Usually ships in 2-5 days

0

78

Kohler 231329

Disc, regulating

$

$

Not available

79

Kohler X-489-2

Rod, Breaker
(Superseded to 41 411 01)

$

$

Not available

80

Kohler 220174

Gasket, Cover
(Superseded to 52 041 11)

$3.49

$

In Stock, only 3 left!

0

81

Kohler A-220474

Breaker
(Superseded to 47 150 03-S)

$23.99

$

In Stock, only 1 left!

0

82

Kohler 220791

Boot, Spark Plug
(Superseded to 220791-S)

$

$

Not available

83

Kohler 230249

Clip
(Superseded to 230249-S)

$

$

Not available

84

Kohler A-220136

Cover breaker
(Superseded to A-220136-S)

$

$

Not available

85

Kohler 235786

Condenser
(Superseded to 47 147 01)

$42.99

$

Usually ships in 2-5 days

0

86

Kohler 270321-S

Spark plug
(Superseded to 41 132 06-S)

$

$

Not available

87

Toro 41-085-01

Stator-assembly

$

$

Currently unavailable

88

Kohler 234424

Cable, Hi-Tension
(Superseded to 234424-S)

$

$

Not available

89

Kohler 238059

Kit, coil
(Superseded to 47 755 20)

$231.99

$

In Stock, only 1 left!

0

90

Kohler 237919

Kit, Coil Clip
(Superseded to 237919-S)

$

$

Not available

92

Kohler 231417

Pan, oil
(Superseded to 41 199 05)

$

$

Not available

93

Kohler 230057

Gasket, pan
(Superseded to 41 041 03)

$9.99

$

In Stock, only 1 left!

0

94

Kohler 232575

Ring Set Std.
(Superseded to 232575-S)

$113.99

$

Usually ships in 2-5 days

0

94

Kohler 232576

Ring Set .010
(Superseded to 232576-S)

$102.99

$

Usually ships in 2-5 days

0

94

Kohler 232577

Ring Set.020
(Superseded to 232577-S)

$148.99

$

Usually ships in 2-5 days

0

94

Kohler 232578

Ring Set .030
(Superseded to 232578-S)

$148.99

$

Usually ships in 2-5 days

0

95

Kohler A-234950

Piston-assembly (Std.)(Includes pin & retainers)
(Superseded to 41 874 05)

$351.99

$

Usually ships in 2-5 days

0

95

Kohler A-234952

Piston-assembly (.003)(Includes pin & retainers)
(Superseded to 41 874 06-S)

$

$

Not available

95

Kohler A-234954

Piston-assembly (.010)(Includes pin & retainers)
(Superseded to 41 874 07)

$342.99

$

Usually ships in 2-5 days

0

95

Kohler A-234956

Piston-assembly (.020)(Includes pin & retainers)
(Superseded to 41 874 08)

$

$

Not available

95

Kohler A-234958

Piston-assembly (.030)(Includes pin & retainers)
(Superseded to 41 874 09)

$355.99

$

Usually ships in 2-5 days

0

96

Kohler 230004

Retainer, Pin
(Superseded to 230004-S)

$6.49

$

In Stock, only 2 left!

0

97

Kohler B-230039

Rod, Connecting Std.
(Superseded to B-230039-S)

$

$

Not available

97

Kohler B-230039-10

Rod, Connecting
(Superseded to B-230039-10-S)

$

$

Not available

98

Kohler 230525

Lock, Conn. Rod

$

$

Not available

99

Kohler 230526

90A9-5/66734 SENSAT

$

$

Not available

100

Kohler A-231643

Starter, recoil-assem.
(Superseded to 41 755 26)

$

$

Not available

101

Kohler A-231644

Cup, drive w/screen (Replaced by 41 071 02--41 071 02 must be used after serial no. 6366215)
(Superseded to 41 071 02)

$

$

Not available

101

Kohler 230165

Gasket Set
(Superseded to 41 004 01)

$111.99

$

Usually ships in 2-5 days

0

101

Kohler B-234989

Miniblock
(Superseded to C-234989)

$

$

Not available

101

Toro 30537

Service Engine

$

$

Currently unavailable
