61-16K803 (C-160) - Toro Lawn Tractor (1976) KOHLER 12 H.P. ENGINE K301S, SPEC 47421D Parts Diagram

Lawn Tractor

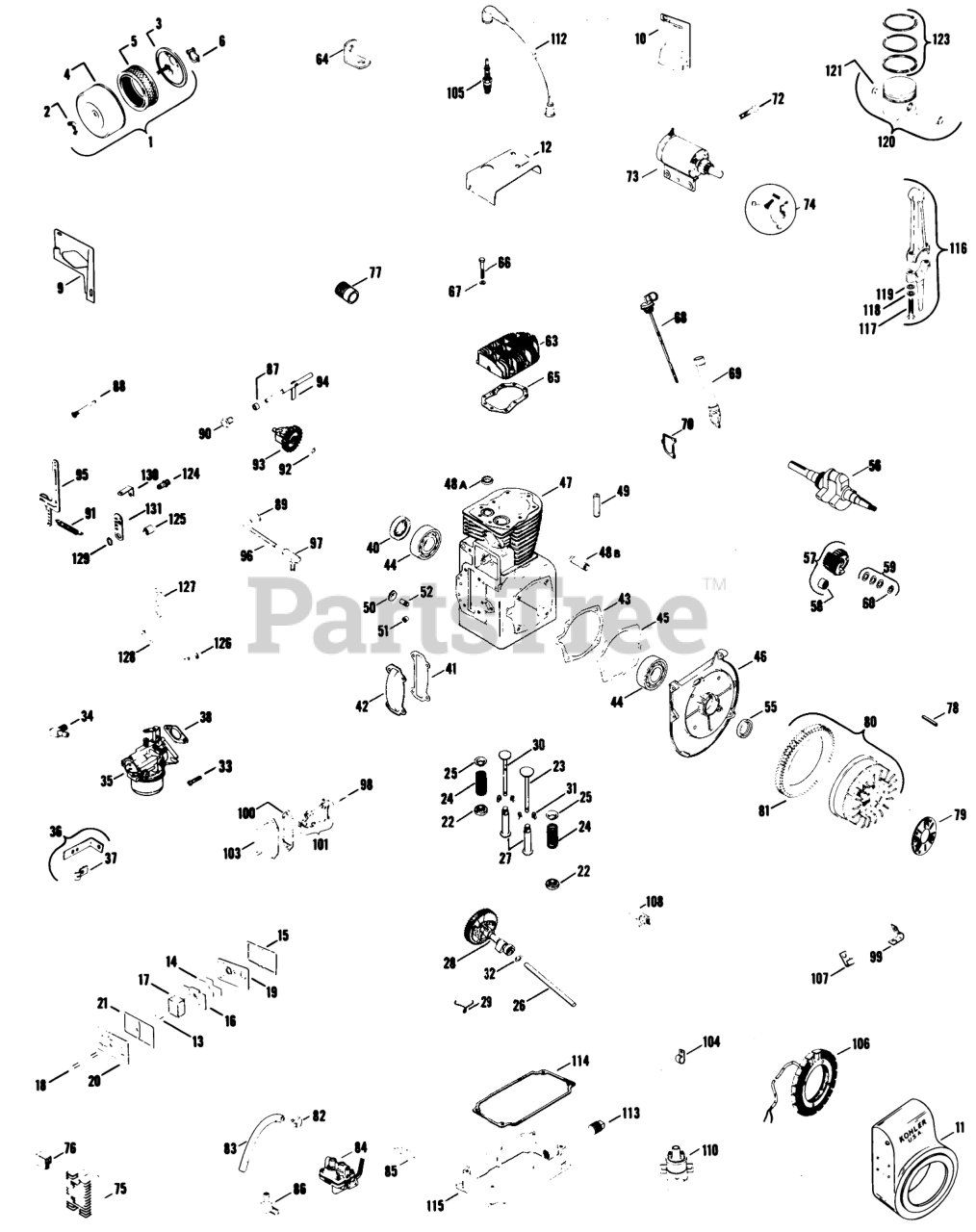

KOHLER 12 H.P. ENGINE K301S, SPEC 47421D Parts Diagram

  • Title

1

Kohler A-235100

Cleaner-Air Assembly
(Superseded to A-235100-S)

$

$

Not available

2

Kohler X-276-7

Nut-Wing
(Superseded to X-276-7-S)

$

$

Not available

3

Kohler 235101

Base-Air Cleaner
(Superseded to 235101-S)

$

$

Not available

4

Kohler 235102

Cover-Air Cleaner
(Superseded to 235102-S)

$

$

Not available

5

Kohler 235116

Element
(Superseded to 235116-S)

$16.99

$

Usually ships in 2-5 days

0

6

Kohler 275341

Gasket-Air Horn
(Superseded to 275341-S)

$6.49

$

In Stock, only 3 left!

0

9

Kohler 235652

BaffLe side air
(Superseded to 235652-S)

$20.99

$

Usually ships in 2-5 days

0

10

Kohler 236676

Baffle cylinder
(Superseded to 236676-S)

$24.99

$

Usually ships in 2-5 days

0

11

Kohler 236680

Housing-Blower
(Superseded to 47 027 46-S)

$467.99

$

Usually ships in 2-5 days

0

12

Kohler 237677

Baffle-Head
(Superseded to 237677-S)

$47.99

$

Usually ships in 2-5 days

0

13

Kohler 231032

Seal
(Superseded to 231032-S)

$8.49

$

In Stock, only 1 left!

0

14

Kohler 235047

Reed
(Superseded to 235047-S)

$37.99

$

Usually ships in 2-5 days

0

15

Kohler 235048

Gasket
(Superseded to 235048-S)

$7.49

$

In Stock, Qty 9

0

16

Kohler 235117

Baffle breather
(Superseded to 235117-S)

$

$

Not available

17

Kohler 235118

Filter Breather
(Superseded to 235118-S)

$18.99

$

In Stock, only 4 left!

0

18

Kohler 235551

Stud, valve cover
(Superseded to 235551-S)

$11.99

$

Usually ships in 2-5 days

0

19

Kohler 235631

Plate
(Superseded to 235631-S)

$39.99

$

Usually ships in 2-5 days

0

20

Kohler 275143

Cover valve
(Superseded to A-235418-S)

$

$

Not available

21

Kohler 275144

Gasket
(Superseded to 275144-S)

$7.99

$

Usually ships in 2-5 days

0

22

Kohler 230011

Retainer-Spring
(Superseded to 230011-S)

$9.49

$

In Stock, Qty 6

0

23

Kohler 235008

Valve-Intake
(Superseded to 235008-S)

$

$

Not available

24

Kohler 235010

Spring
(Superseded to 235010-S)

$

$

Not available

25

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

$6.49

$

In Stock, only 2 left!

0

26

Kohler 235053

Pin (Service)
(Superseded to 47 380 09-S)

$

$

Not available

27

Kohler D-235327

Tappet
(Superseded to D-235327-S)

$

$

Not available

28

Kohler E-235646

Camshaft-assembly
(Superseded to H-235646)

$

$

Not available

29

Toro 47_089_01

Spring-Actuating

$

$

Currently unavailable

30

Kohler 235826

Valve, exhaust
(Superseded to 235826-S)

$70.99

$

Usually ships in 2-5 days

0

31

Kohler 240013

Keeper, Valve

$

$

Not available

32

Kohler 275066

Spacer
(Superseded to 275066-S)

$8.49

$

Usually ships in 2-5 days

0

32

Kohler 275067

Spacer
(Superseded to 275067-S)

$8.49

$

In Stock, only 2 left!

0

33

Kohler X-770-1

Screw sitd. hd.
(Superseded to X-770-1-S)

$

$

Not available

34

Kohler X-391-1

Elbow
(Superseded to 25 155 02-S)

$14.99

$

In Stock, only 1 left!

0

35

Kohler A-237772

Carburetor-assembly
(Superseded to 47 853 22)

$

$

Not available

35

Kohler 231555

Repairkit
(Superseded to 25 757 01-S)

$22.99

$

In Stock, Qty 5

0

36

Kohler A-236921

Bracket, choke
(Superseded to A-236921-S)

$

$

Not available

37

Kohler 235778

Clip
(Superseded to 235778-S)

$10.99

$

Usually ships in 2-5 days

0

38

Kohler 271030

Gasket
(Superseded to 271030-S)

$7.49

$

Usually ships in 2-5 days

0

40

Kohler X-379-9

Seal rear oil
(Superseded to 47 032 07)

$

$

Not available

41

Kohler 235025

Gasket
(Superseded to 235025-S)

$10.99

$

In Stock, Qty 6

0

42

Kohler 235026

Cover
(Superseded to 235026-S)

$

$

Not available

43

Kohler 235070

Gasket
(Superseded to 235070-S)

$7.49

$

In Stock, only 1 left!

0

44

Kohler 235376

Ball Bearing
(Superseded to 235376-S)

$232.99

$

Usually ships in 2-5 days

0

45

Kohler 235757

Gasket
(Superseded to 235757-S)

$12.99

$

Usually ships in 2-5 days

0

46

Toro 45_156_02

Plate Bearing

$

$

Currently unavailable

47

Block, cylinder-assembly (Use B-237416 Miniblock)

$

$

Not available

48A

Kohler 230170

Insert
(Superseded to 230170-S)

$

$

Not available

48B

Kohler 236559

Shaft
(Superseded to 236559-S)

$

$

Not available

49

Kohler 235007-S

Guide Valve

$

$

Not available

50

Kohler X-230-11

Plug
(Superseded to X-230-11-S)

$2.99

$

In Stock, only 2 left!

0

51

Kohler 234866

Bearing
(Superseded to 234866-S)

$9.99

$

Usually ships in 2-5 days

0

52

Kohler 235125-S

Shaft-Govemor

$87.99

$

Usually ships in 2-5 days

0

55

Kohler X-271-30

Seal, Front OiI
(Superseded to 47 032 06)

$22.99

$

In Stock, only 2 left!

0

56

Kohler B-235837

Crankshaft
(Superseded to 47 142 16)

$729.99

$

Usually ships in 2-5 days

0

57

Kohler A-236507

Gear
(Superseded to 47 042 01)

$201.99

$

Usually ships in 2-5 days

0

58

Kohler 236506

Bearing,needle
(Superseded to 236506-S)

$79.99

$

Usually ships in 2-5 days

0

59

Toro 47_755_01

Kit-Spacer

$

$

Currently unavailable

60

Kohler X-269-34

Retainer
(Superseded to X-269-34-S)

$3.49

$

In Stock, only 2 left!

0

63

Kohler 237670

Belt Guide
(Superseded to 237670-S)

$

$

Not available

64

Kohler 236742

Lift Cable
(Superseded to 47 445 02-S)

$6.49

$

Usually ships in 2-5 days

0

65

Kohler 237658

Gasket-Head
(Superseded to 47 041 10)

$38.99

$

In Stock, only 1 left!

0

66

Kohler 270158

Screw
(Superseded to 270158-S)

$4.49

$

Usually ships in 2-5 days

0

66

Kohler 270721

Screw-H.C.
(Superseded to 270721-S)

$7.49

$

In Stock, only 3 left!

0

67

Kohler 270889

Washer
(Superseded to 270889-S)

$8.49

$

In Stock, Qty 9

0

68

Kohler 237052

Dipstick
(Superseded to 237052-S)

$178.99

$

Usually ships in 2-5 days

0

69

Kohler 236964

Tube, fill
(Superseded to 236964-S)

$

$

Not available

70

Kohler 237064

Gasket
(Superseded to 237064-S)

$10.99

$

Usually ships in 2-5 days

0

72

Kohler 234948

Screw
(Superseded to 234948-S)

$9.49

$

Usually ships in 2-5 days

0

73

Kohler A-237534

Starter
(Superseded to 45 098 07)

$363.99

$

Usually ships in 2-5 days

0

74

Kohler 237367

Kit, Brush & Spring
(Superseded to 48 755 15)

$

$

Not available

75

Kohler 237335

Regulator
(Superseded to 41 403 06)

$227.99

$

Usually ships in 2-5 days

0

76

Kohler 237429

Connector
(Superseded to 237429-S)

$

$

Not available

77

Kohler X-229-1

Nipple

$

$

Not available

77

Kohler X-25-88

Washer
(Superseded to X-25-104)

$

$

Not available

77

Kohler X-119-14

Nut
(Superseded to 25 100 02-S)

$

$

Not available

78

Toro X-236-15

Key

$

$

Currently unavailable

79

Toro 47_162_03

Screen grass

$

$

Currently unavailable

80

Toro 47_025_08

Flywheel-Assembly

$

$

Currently unavailable

81

Kohler 236285

Gear Ring

$

$

Not available

82

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 2 left!

0

83

Kohler X-697-1

Line Fuel
(Superseded to X-810-3)

$8.99

$

Usually ships in 2-5 days

0

84

Kohler A-235845

Pump, fuel
(Superseded to A-235845-S)

$272.99

$

In Stock, only 1 left!

0

85

Toro 47_041_01

Gasket, pump

$

$

Currently unavailable

86

Kohler X-391-1

Elbow
(Superseded to 25 155 02-S)

$14.99

$

In Stock, only 1 left!

0

87

Kohler X-400-80

Spacer
(Superseded to X-400-80-S)

$9.49

$

Usually ships in 2-5 days

0

88

Kohler 231355

Pin-GovemorStop
(Superseded to 231355-S)

$10.99

$

Usually ships in 2-5 days

0

89

Kohler 235278

Retainer Rod
(Superseded to 235278-S)

$6.49

$

In Stock, only 1 left!

0

90

Kohler 235476

Bushing
(Superseded to 235476-S)

$

$

Not available

91

Kohler 235496

Spring-Governor
(Superseded to 235496-S)

$17.99

$

Usually ships in 2-5 days

0

92

Kohler 237022

Washer
(Superseded to 237022-S)

$7.49

$

Usually ships in 2-5 days

0

93

Kohler A-237031

Gear, Governor
(Superseded to A-235743-S)

$79.99

$

Usually ships in 2-5 days

0

94

Kohler 237455

Shaft, Governor
(Superseded to A-235256-S)

$46.99

$

Usually ships in 2-5 days

0

95

Kohler A-237653

Lever, Governor
(Superseded to A-237653-S)

$79.99

$

In Stock, only 1 left!

0

96

Kohler 235277

Rod ball joint
(Superseded to 235277-S)

$35.99

$

Usually ships in 2-5 days

0

97

Kohler 237130

Ball Joint
(Superseded to 237130-S)

$27.99

$

Usually ships in 2-5 days

0

98

Kohler X-489-1

Rod, breaker
(Superseded to 46 411 01)

$

$

Not available

99

Kohler X-728-1

Clip
(Superseded to X-728-1-S)

$2.49

$

Usually ships in 2-5 days

0

100

Kohler 220174

Gasket, Cover
(Superseded to 52 041 11)

$3.49

$

In Stock, only 3 left!

0

101

Kohler A-220474

Breaker
(Superseded to 47 150 03-S)

$23.99

$

In Stock, only 1 left!

0

103

Kohler A-220136

Cover breaker
(Superseded to A-220136-S)

$

$

Not available

104

Kohler 234511

Clip
(Superseded to 234511-S)

$6.49

$

Usually ships in 2-5 days

0

105

Kohler 235040-S

Plug, spark
(Superseded to 235041-S)

$20.99

$

Usually ships in 2-5 days

0

106

Kohler 237878

Stator
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 15

0

107

Kohler 275182

Clip
(Superseded to 275303-S)

$6.49

$

In Stock, only 1 left!

0

108

Kohler 230722

Condenser
(Superseded to 230722-S)

$31.99

$

Usually ships in 2-5 days

0

110

Kohler 231281

Coil
(Superseded to 231281-S)

$149.99

$

In Stock, only 1 left!

0

112

Kohler 238057

Kit, Hi-Tension
(Superseded to 238057-S)

$

$

Not available

113

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

114

Kohler 235057

Gasket
(Superseded to 235057-S)

$10.99

$

In Stock, only 1 left!

0

115

Kohler 237763

Base, oil pan
(Superseded to 237763-S)

$456.99

$

Usually ships in 2-5 days

0

116

Kohler A-237344

Rod, Connecting
(Superseded to 47 067 09)

$

$

Not available

117

Toro 47_086_01

Screw, connecting rod

$

$

Currently unavailable

118

Kohler X-22-1

Washer
(Superseded to X-22-1-S)

$3.99

$

Usually ships in 2-5 days

0

119

Kohler 235003

Washer

$

$

Not available

120

Kohler A-235827

Piston-assembly (Std.)(Includes pin & retainers)
(Superseded to 47 874 06)

$303.99

$

In Stock, only 1 left!

0

120

Kohler A-235864

Piston-assembly (.003)(Includes pin & retainers)
(Superseded to 47 874 07-S)

$

$

Not available

120

Kohler A-235865

Piston-assembly (.010)(Includes pin & retainers)
(Superseded to 47 874 08)

$406.99

$

Usually ships in 2-5 days

0

120

Kohler A-235866

Piston-assembly (.020)(Includes pin & retainers)
(Superseded to 47 874 09)

$406.99

$

Usually ships in 2-5 days

0

120

Kohler A-235867

Piston-assembly (.030)(Includes pin & retainers)
(Superseded to 47 874 10)

$406.99

$

Usually ships in 2-5 days

0

121

Kohler 235811

Pin, Retainer
(Superseded to 47 018 01)

$6.49

$

Usually ships in 2-5 days

0

123

Kohler 235889

Ring set-Std. & .003 (Svc.)
(Superseded to 48 108 01)

$114.99

$

Usually ships in 2-5 days

0

123

Kohler 235890

Ring set-.010 (Service)
(Superseded to 48 108 02)

$196.99

$

Usually ships in 2-5 days

0

123

Kohler 235891

Ring set-.020 (Service)
(Superseded to 48 108 03)

$196.99

$

In Stock, only 1 left!

0

123

Kohler 235892

Ring set-.030 (Service)
(Superseded to 48 108 04-S)

$195.99

$

Usually ships in 2-5 days

0

124

Kohler 231052

Clamp, swivel wire
(Superseded to 48 755 10)

$22.99

$

Usually ships in 2-5 days

0

125

Kohler 235085

Spacer
(Superseded to 235085-S)

$

$

Not available

126

Kohler 235278

Retainer Rod
(Superseded to 235278-S)

$6.49

$

In Stock, only 1 left!

0

127

Kohler 235550

Bellcrank
(Superseded to 47 257 01-S)

$

$

Not available

128

Kohler 235756

Rod, throttle
(Superseded to 235756-S)

$19.99

$

Usually ships in 2-5 days

0

129

Kohler 275690

Washer
(Superseded to 275690-S)

$6.49

$

In Stock, only 2 left!

0

130

Kohler 235084

Spacer
(Superseded to 235084-S)

$

$

Not available

131

Kohler 235086

Bracket
(Superseded to 235086-S)

$

$

Not available

131

Kohler 237727

Gasket Set
(Superseded to 47 004 01)

$149.99

$

Usually ships in 2-5 days

0

131

Kohler B-237416

Miniblock
(Superseded to C-237416)

$

$

Not available

131

Kohler C-237530

Short Block
(Superseded to D-237530)

$

$

Not available

131

Toro 47460

Service Engine

$

$

Currently unavailable
