61-12KS03 (C-120) - Toro Lawn Tractor (1976) WHEELS AND TIRES HARDWARE Parts Diagram

Lawn Tractor

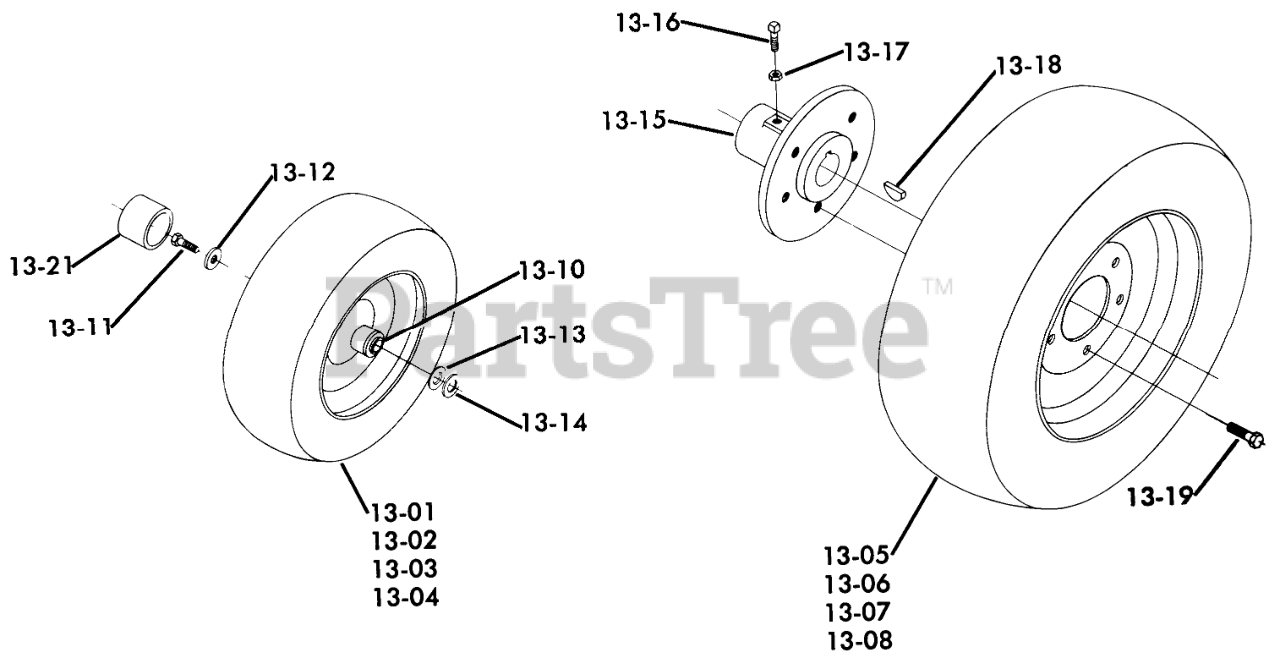

WHEELS AND TIRES HARDWARE Parts Diagram

  • Title

13-01

Toro 105881

ASSY-WHEEL & TIRE

$

$

Not available

13-02

Toro 105882

WHEEL ASSY

$

$

Not available

13-03

Toro 9792

TIRE TURF SAVER 16X6.50-8

$

$

Not available

13-04

Toro 5512

Tube
(Superseded to 1669)

$

$

Not available

13-05

Toro 5432

Wheel and Tire

$

$

Not available

13-06

Toro 5433

Wheel
(Superseded to 110677)

$

$

Not available

13-07

Toro 5434

Tire
(Superseded to 102786)

$

$

Not available

13-08

Toro 7007

TUBE-INNER
(Superseded to 231-90)

$

$

Not available

13-05

Toro 79762

Wheel & Tire Assembly

$

$

Currently unavailable

13-07

Toro 7607

Tire-Cleat, Rear
(Superseded to 110934)

$

$

Not available

13-10

Toro 4999

Bearing
(Superseded to 110513)

$21.99

$

In Stock, only 2 left!

0

13-11

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

13-12

Toro 103470

WASHER

$67.99

$

Usually ships in 3-6 days

0

13-13

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

13-14

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

13-15

Toro 105763

Hub Rear
(Superseded to 105763-03)

$191.99

$

In Stock, only 1 left!

0

13-16

Toro 909554

Screw-Set
(Superseded to 3243-5)

$2.99

$

In Stock, Qty 13

0

13-17

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

13-18

Toro 937108

KEY-WOODRUFF

$5.99

$

In Stock, only 3 left!

0

13-19

Toro 1004

Lug Nut

$

$

Not available

13-21

Toro 103565

HUB CAP

$

$

Not available

13-09

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0
