61-12KS01 (C-120) - Toro Lawn Tractor (1976) 5.000 FRONT AXLE AND STEERING Parts Diagram

Lawn Tractor

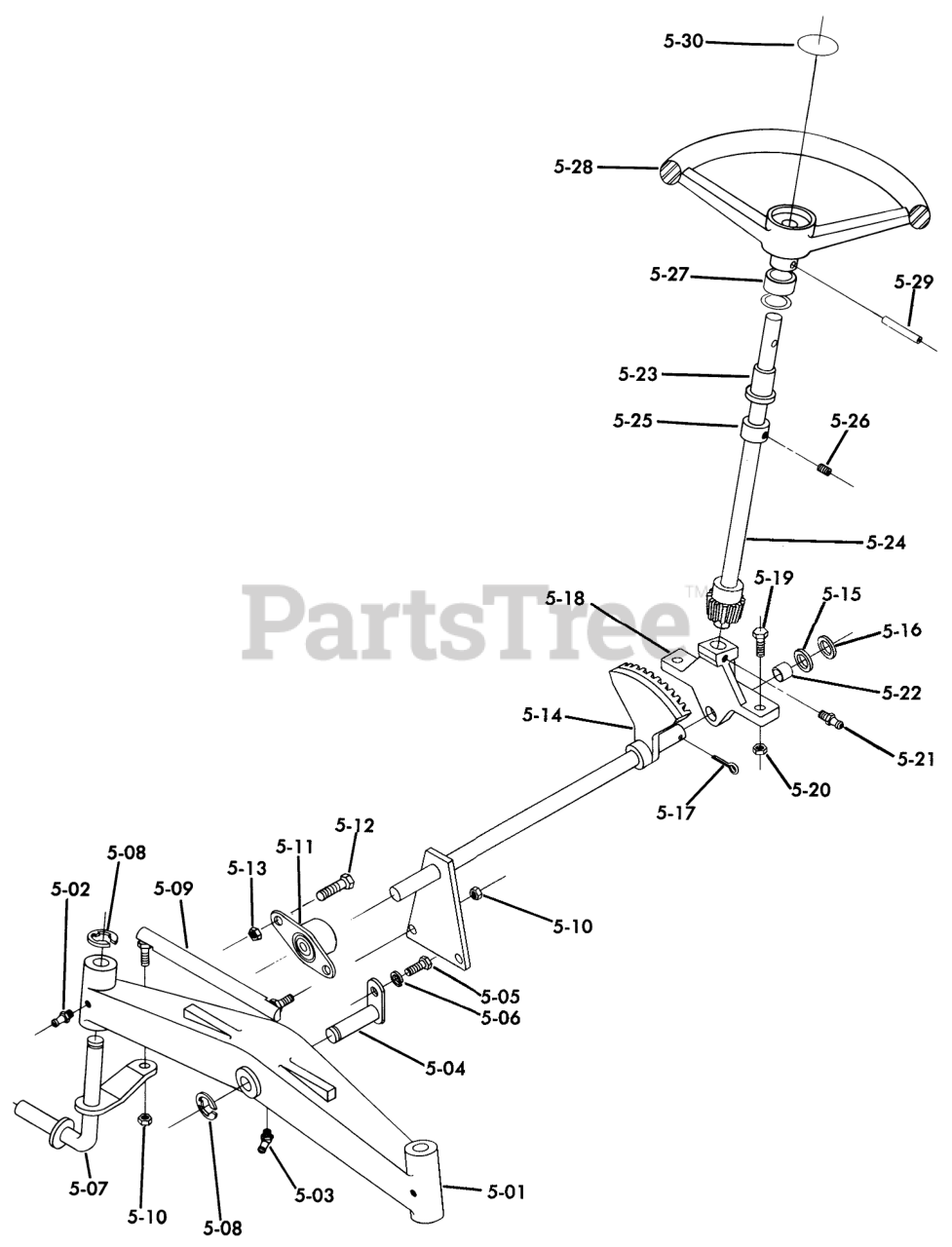

5.000 FRONT AXLE AND STEERING Parts Diagram

  • Title
5-01

Toro 5638

AXLE-FRONT
(Superseded to 5638-01)

$

$

Not available

5-02

Toro 1030

Zerk

$

$

Not available

5-03

Toro 1481

FITTING-GREASE

$6.49

$

In Stock, Qty 9

0

5-04

Toro 6216

PIN AND PLATE ASM

$51.99

$

Usually ships in 3-6 days

0

5-05

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

5-06

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

5-07

Toro 5630

R.H. Spindle
(Superseded to 115426)

$96.99

$

Usually ships in 3-6 days

0

5-07

Toro 5631

L.H. Spindle
(Superseded to 115425)

$96.99

$

In Stock, only 1 left!

0

5-08

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

5-09

Toro 102592

Tie Rod RH
(Superseded to 78-2900)

$76.99

$

In Stock, only 4 left!

0

5-09

Toro 102593

Tie Rod LH
(Superseded to 78-2900)

$76.99

$

In Stock, only 4 left!

0

5-10

Toro 915002

NUT-6
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

5-11

Toro 6472

BEARING-FLANGED

$24.99

$

In Stock, only 4 left!

0

5-12

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

5-13

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

5-14

Toro 104889

Lower Steering Shaft
(Superseded to 114198-01)

$

$

Not available

5-15

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

5-16

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

5-17

Toro 932035

PIN-4

$

$

Not available

5-18

Toro 6396

Support
(Superseded to 88-2710-03)

$

$

Not available

5-19

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

5-20

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

5-21

Toro 1030

Zerk

$

$

Not available

5-22

Toro 6397

BEARING-BRONZE

$24.99

$

In Stock, only 3 left!

0

5-23

Toro 101442

BEARING

$

$

Not available

5-24

Toro 104887

Upper Steering Shaft
(Superseded to 92-4987)

$

$

Not available

5-25

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

5-26

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

5-27

Toro 104007

Collar
(Superseded to 107687)

$

$

Not available

5-27

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, Qty 5

0

5-28

Toro 102715

STEERING WH 13" SOFT

$

$

Not available

5-29

Toro 933221

Pin-Roll
(Superseded to 32121-111)

$2.99

$

In Stock, Qty 20+

0

5-30

Toro 102856

STEERING WHEEL INSE

$

$

Not available
