61-12K802 (C-120) - Toro Lawn Tractor (1976) TRANSMISSION 8-SPEED Parts Diagram

Lawn Tractor

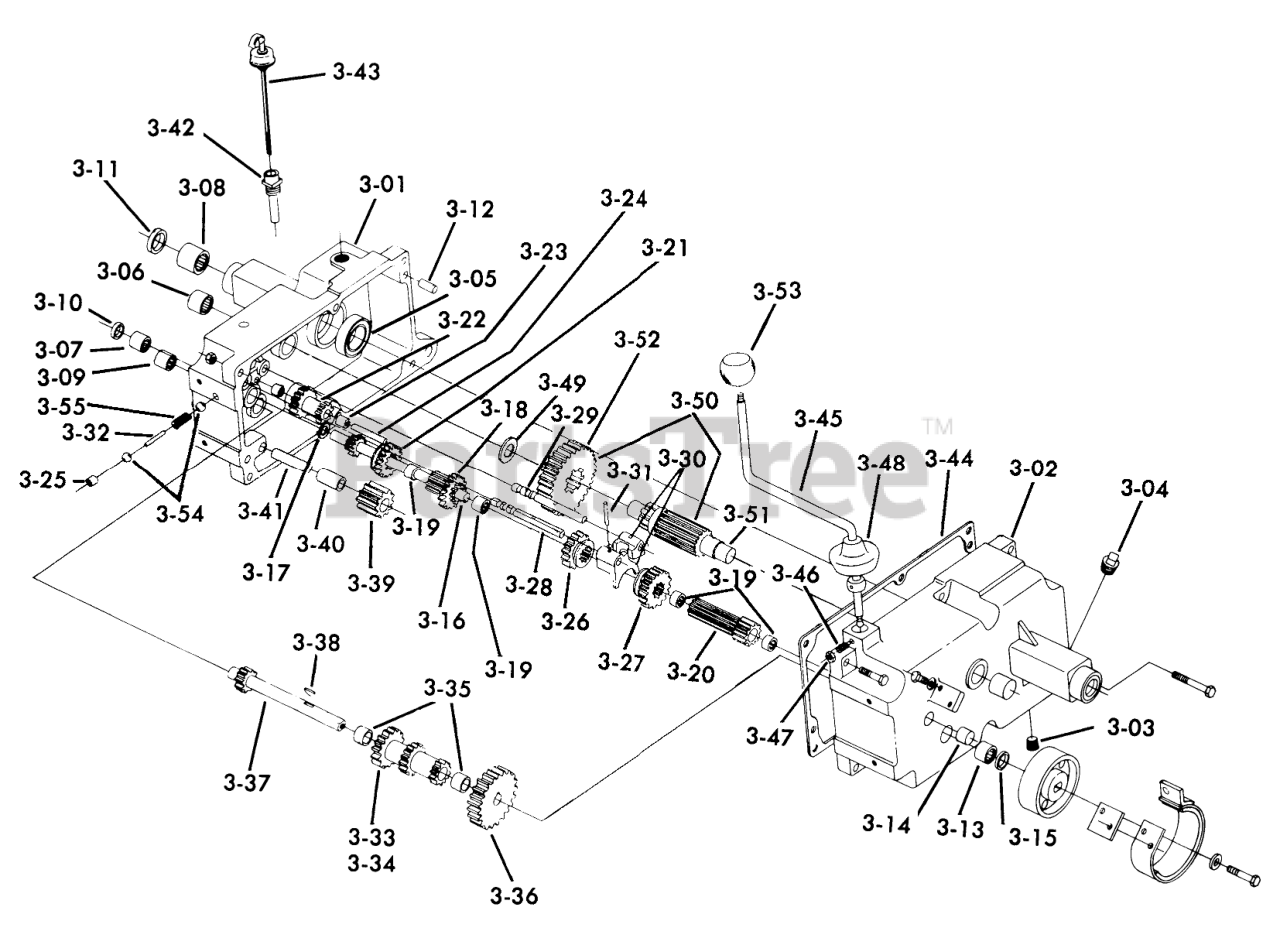

TRANSMISSION 8-SPEED Parts Diagram

  • Title

3-01

Toro 8163

Case RH

$

$

Not available

3-02

Toro 6941

Case L.H.

$

$

Not available

Toro 908043

HHCS
(Superseded to 323-15)

$1.99

$

In Stock, Qty 20+

0

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

3-03

Toro 943460

PLUG 1/4 PIPE ALLEN
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

3-04

Toro 943420

Plug
(Superseded to 281-2)

$2.99

$

Usually ships in 3-6 days

0

3-05

Toro 1533

BALL BRG 1 1/2 I.D.

$

$

Not available

3-06

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

3-07

Toro 1542

BEARING-NEEDLE

$43.99

$

In Stock, only 2 left!

0

3-08

Toro 1526

Bearing-Axle

$

$

Not available

3-09

Toro 1529

BEARING-NEEDLE

$50.99

$

Usually ships in 3-6 days

0

3-10

Toro 100442

SEAL-OIL

$7.49

$

In Stock, Qty 6

0

3-11

Toro 100443

SEAL-OIL

$14.99

$

In Stock, Qty 9

0

3-12

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

3-13

Toro 1523

BEARING-NEEDLE

$42.99

$

Usually ships in 3-6 days

0

3-14

Toro 1531

Bearing Needle

$

$

Not available

3-15

Toro 100441

SEAL-OIL

$9.99

$

Usually ships in 3-6 days

0

3-16

Toro 7201

SHAFT-INPUT

$

$

Not available

3-17

Toro 7418

WASHER-THR

$7.49

$

In Stock, only 4 left!

0

3-18

Toro 7204

GEAR

$

$

Not available

3-19

Toro 1518

BEARING-NEEDLE

$31.99

$

Usually ships in 3-6 days

0

3-20

Toro 5175

GEAR

$

$

Not available

3-21

Toro 7205

GEAR-SLIDING

$

$

Not available

3-22

Toro 7206

Gear
(Superseded to 100-1338)

$318.99

$

Usually ships in 3-6 days

0

3-23

Toro 7207

BEARING-NEEDLE

$34.99

$

Usually ships in 3-6 days

0

3-24

Toro 7208

GEAR-SHAFT REDUCTION

$11.99

$

In Stock, only 2 left!

0

3-25

Toro 1243

CUP-PLUG

$5.99

$

In Stock, Qty 10

0

3-26

Toro 5173

GEAR-HI AND 2ND

$149.99

$

Usually ships in 3-6 days

0

3-27

Toro 5174

GEAR-LOW AND REVERSE

$

$

Not available

3-28

Toro 5615

RAIL-SHIFT

$117.99

$

Usually ships in 3-6 days

0

3-29

Toro 5616

RAIL-REAR SHIFT

$90.99

$

Usually ships in 3-6 days

0

3-30

Toro 3503

FORK-SHIFT

$139.99

$

Usually ships in 3-6 days

0

3-31

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

3-32

Toro 5614

PIN-SHIFT

$

$

Not available

3-33

Toro 7269

GEAR-CLUSTER

$

$

Not available

3-34

Toro 3525

Cluster Gear
(Superseded to 7269)

$

$

Not available

3-35

Toro 1504

BUSHING-BRONZE

$50.99

$

Usually ships in 3-6 days

0

3-36

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

3-37

Toro 9840

Cluster Shaft
(Superseded to 704156)

$

$

Not available

3-38

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 20+

0

3-39

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$165.99

$

Usually ships in 3-6 days

0

3-40

Toro 1516

BUSHING

$14.99

$

Usually ships in 3-6 days

0

3-41

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

3-42

Toro 102703

NIPPLE-FILL, TRANSMISSION

$

$

Not available

3-43

Toro 101847

Dipstick
(Superseded to 101847-03)

$

$

Not available

3-44

Toro 3912

GASKET-TRANSMISSION

$10.99

$

In Stock, only 2 left!

0

3-45

Toro 5632

Shift Stick
(Superseded to 95-7684)

$200.99

$

In Stock, only 1 left!

0

3-46

Toro 1239

SETSCREW

$10.99

$

In Stock, Qty 7

0

3-47

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

3-48

Toro 3577

COVER-DUST

$

$

Not available

3-49

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

3-50

Toro 102974

GEAR ASM

$

$

Not available

3-51

Toro 101625

PINION SHAFT

$

$

Not available

3-52

Toro 101626

GEAR

$

$

Not available

3-53

Toro 102871

SHIFT KNOB

$

$

Not available

3-54

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 5

0

3-55

Toro 3518

Spring
(Superseded to 106030)

$2.99

$

In Stock, Qty 20+

0
