61-08K801 (B-60) - Toro Lawn Tractor (1976) LIGHTS (STANDARD ON C-160, C-120 ONLY) Parts Diagram

Lawn Tractor

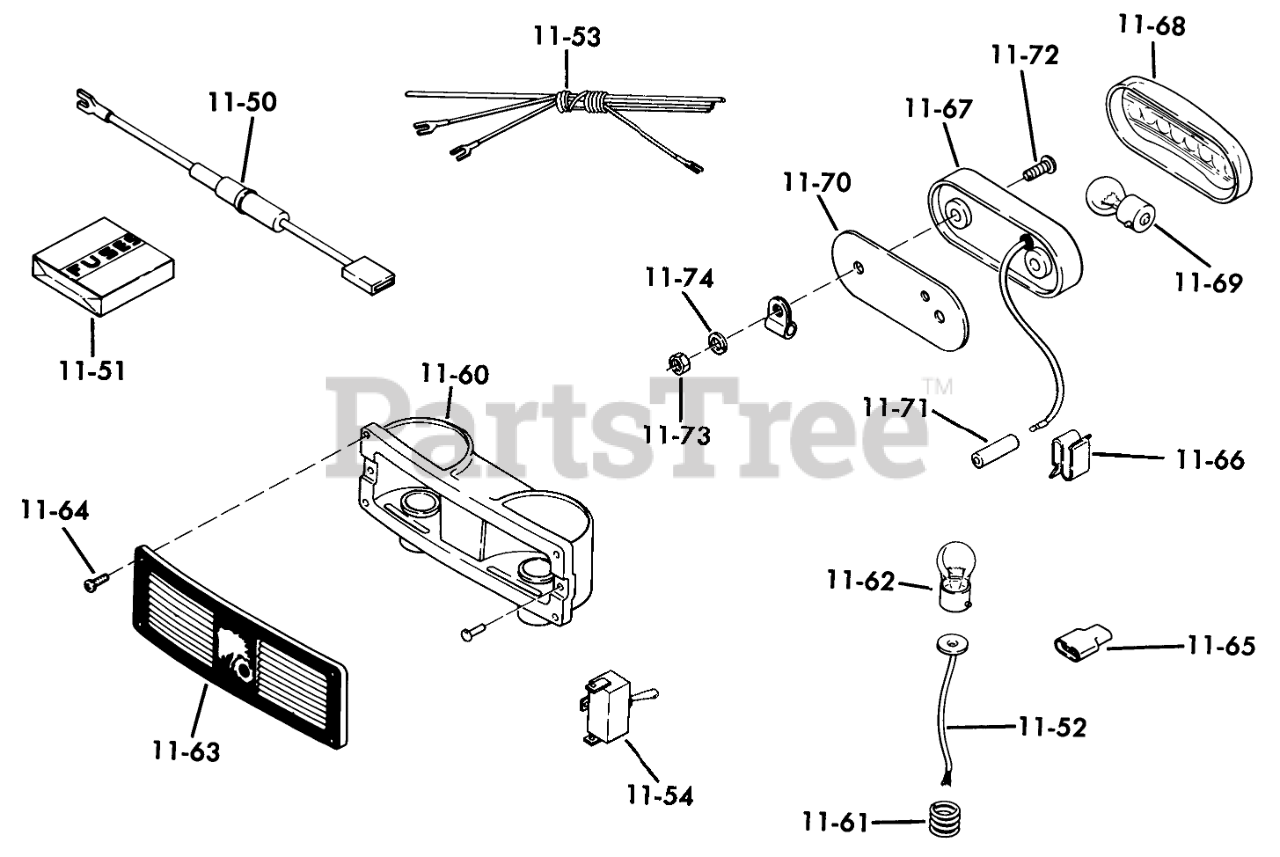

LIGHTS (STANDARD ON C-160, C-120 ONLY) Parts Diagram

  • Title

11-50

Toro 101846

ASSY FUSED CONNECTOR

$

$

Not available

11-51

Toro 101639

FUSE

$3.49

$

Usually ships in 3-6 days

0

11-52

Toro 7226

WIRE ASSY

$

$

Not available

11-53

Toro 103137

Wire Harness-Lights

$

$

Not available

11-54

Toro 102138

SWITCH-LIGHTS

$42.99

$

Usually ships in 3-6 days

0

11-60

Toro 7223

ASSY REFLECTOR HOUSI

$

$

Not available

11-61

Toro 7227

SPRING

$

$

Not available

11-62

Toro 7228

BULB

$25.99

$

In Stock, only 2 left!

0

11-63

Toro 103771

Lens
(Superseded to 98-1713)

$96.99

$

In Stock, only 1 left!

0

11-64

Toro 7229

Pan HD Swage
(Superseded to 88-2120)

$

$

Not available

11-65

Toro 7618

CONNECTOR 3 WIRE

$

$

Not available

11-66

Toro 3023

SPEED CLIP

$

$

Not available

11-67

Toro 8041

Base
(Superseded to 105202)

$

$

Not available

11-68

Toro 8042

Lens
(Superseded to 112564)

$10.99

$

In Stock, only 4 left!

0

11-69

Toro 8043

Bulb

$

$

Currently unavailable

11-70

Toro 8044

Mounting Pad

$

$

Not available

11-71

Toro 6922

CONNECTOR 2 WIRE

$

$

Not available

11-72

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

11-73

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

11-74

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0
