61-07K802 (B-60) - Toro Lawn Tractor (1976) 8.000 SHEET METAL AND COVERS (FIG. 8) Parts Diagram

Lawn Tractor

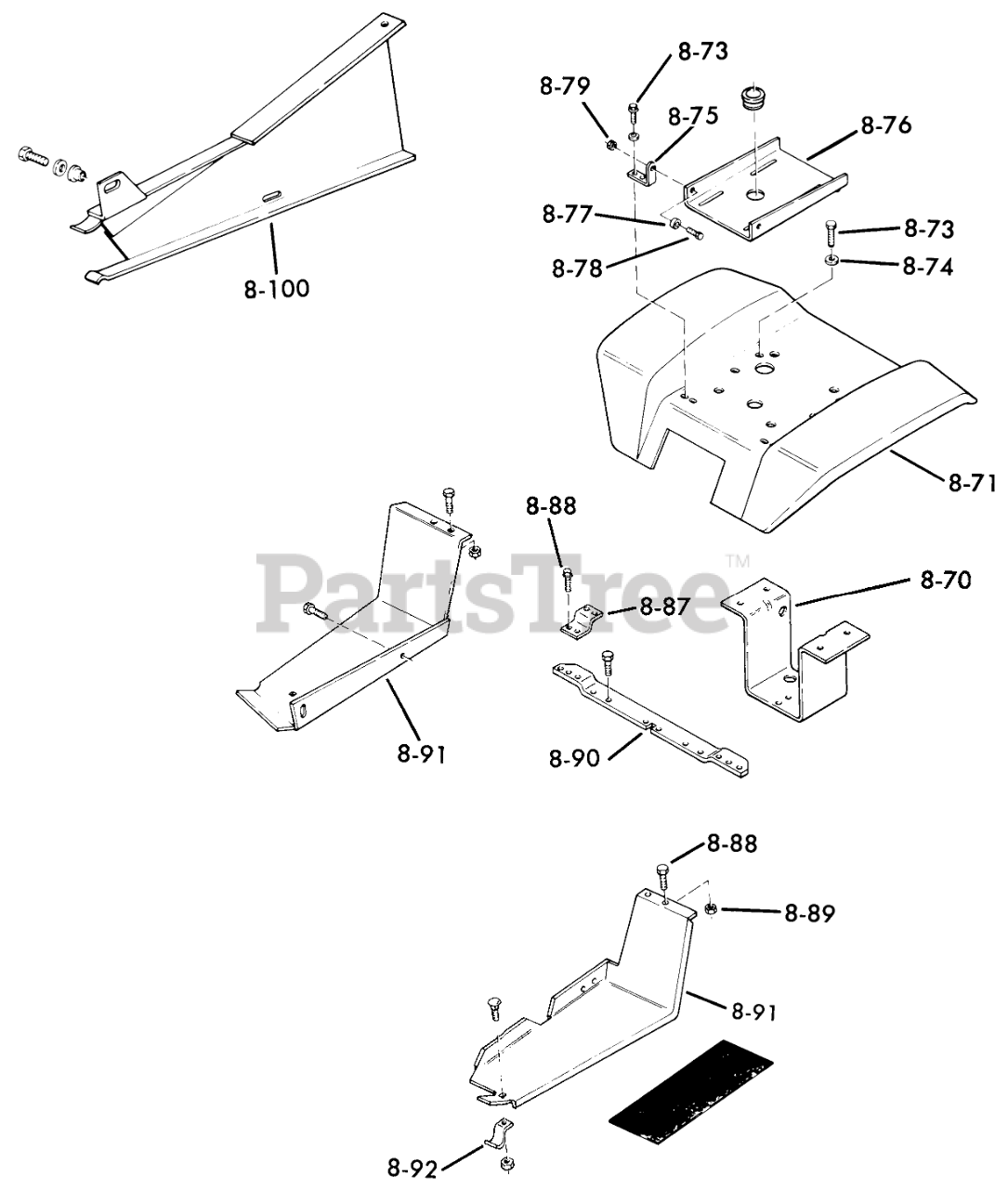

8.000 SHEET METAL AND COVERS (FIG. 8) Parts Diagram

  • Title
8-70

Toro 105527

Bracket-Fender

$

$

Not available

8-71

Toro 105444

Fender

$

$

Not available

8-73

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

8-74

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

8-75

Toro 105524

BRACKET-PIVOT

$

$

Not available

8-76

Toro 103886

Plate Seat Pivot
(Superseded to 111714)

$

$

Not available

8-77

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

8-78

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

8-79

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

8-87

Toro 105531

BRACKET-FENDER R

$

$

Not available

8-88

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

8-88

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

8-88

Toro 103887

BUMPER-RUBBER

$4.49

$

In Stock, only 3 left!

0

8-90

Toro 105486

Bracket-Footrest

$

$

Not available

8-90

Toro 926694

SCREW

$

$

Not available

8-91

Toro 103372

Footrest-RH

$

$

Not available

8-91

Toro 105843

Footrest-LH

$

$

Not available

8-91

Toro 105201

PAD-FOOTREST

$

$

Not available

8-91

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

8-91

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

8-91

Toro 960175

Screw

$

$

Not available

8-92

Toro 7456

BRACKET

$

$

Not available

8-92

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

8-92

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

8-100

Toro 105391

Belt Guard Assy

$

$

Not available

8-100

Toro 908046

H H C S
(Superseded to 324-4)

$3.99

$

Usually ships in 3-6 days

0

8-100

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0

8-100

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

8-100

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

8-100

Toro 960175

Screw

$

$

Not available

8-06A

Toro 101850

ROD-HOOD STOP

$21.99

$

Usually ships in 3-6 days

0

8-06A

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

8-44

Toro 5606

Tape
(Superseded to 106556)

$

$

Not available
