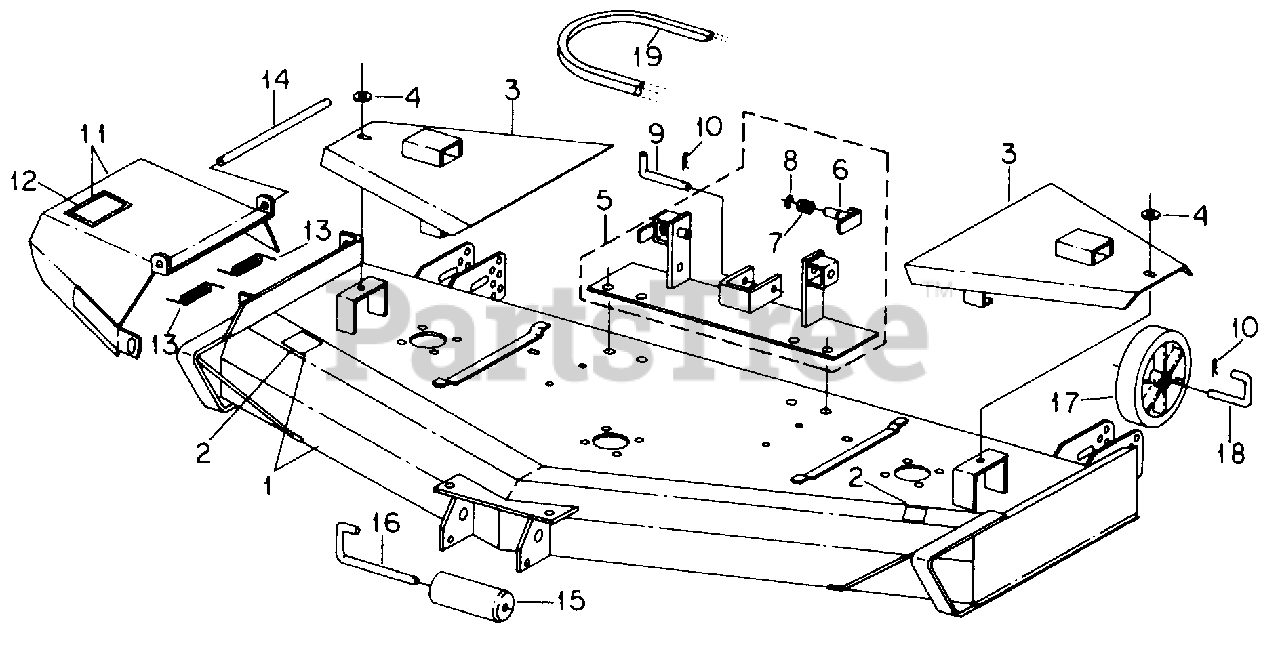

60C - Cub Cadet 60" Mower Deck Frame Parts Diagram

60" Mower Deck

Frame Parts Diagram

  • Title
1

Cub Cadet 1286-684-C91

Housing w/Product Graphics

$

$

Currently unavailable

2

Cub Cadet 83-640-C1

Product Graphic, Danger

$

$

Currently unavailable

3

Cub Cadet 83-626-C1

Cover, V-Belt

$

$

Currently unavailable

Cub Cadet IH-180122

Bolt, 3/8 X 1 Type 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 21-752-R1

Washer, .406 X 1.500 X .054

$

$

Currently unavailable

5

Cub Cadet 83-617-C91

Bracket Assy, Rear Mtg

$

$

Currently unavailable

Cub Cadet 180-175

Bolt, 1/2 X 1-1/4 Type 5

$

$

Currently unavailable

Cub Cadet IH-120396

Washer, .531 X 1.062 X .074
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120384

Washer, 1/2 Lock
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 5

0

Cub Cadet IH-120378

Nut, 1/2 Type 5
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

$

$

Currently unavailable

$

$

Currently unavailable

8

Cub Cadet 83-624-C1

Ring, Snap

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

11

Cub Cadet 83-628-C91

Shield w/Product Graphic, Deflector

$

$

Currently unavailable

Cub Cadet IH-180120

Bolt, 3/8 X 3/4 Type 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120388

Washer, .438 X 1.000 X .064
(Superseded to 936-0406)

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet 83-639-C1

Product Graphic, Danger

$

$

Currently unavailable

$

$

Currently unavailable

14

Cub Cadet 83-630-C1

Rod, Deflector

$

$

Currently unavailable

Cub Cadet 120-123

Pin, 1/8 X 1-1/4 Cot

$

$

Currently unavailable

15

Cub Cadet 489-470-R1

Roller, Front

$

$

Currently unavailable

16

Cub Cadet 83-627-C1

Pin, Roller

$

$

Currently unavailable

Cub Cadet 120-123

Pin, 1/8 X 1-1/4 Cot

$

$

Currently unavailable

17

Cub Cadet 83-631-C1

Wheel, Gauge 8 In.

$

$

Currently unavailable

18

Cub Cadet 83-632-C1

Pin, Gauge Wheel

$

$

Currently unavailable

19

Cub Cadet 487-046-R1

Belt, Spindle Drive

$

$

Currently unavailable
