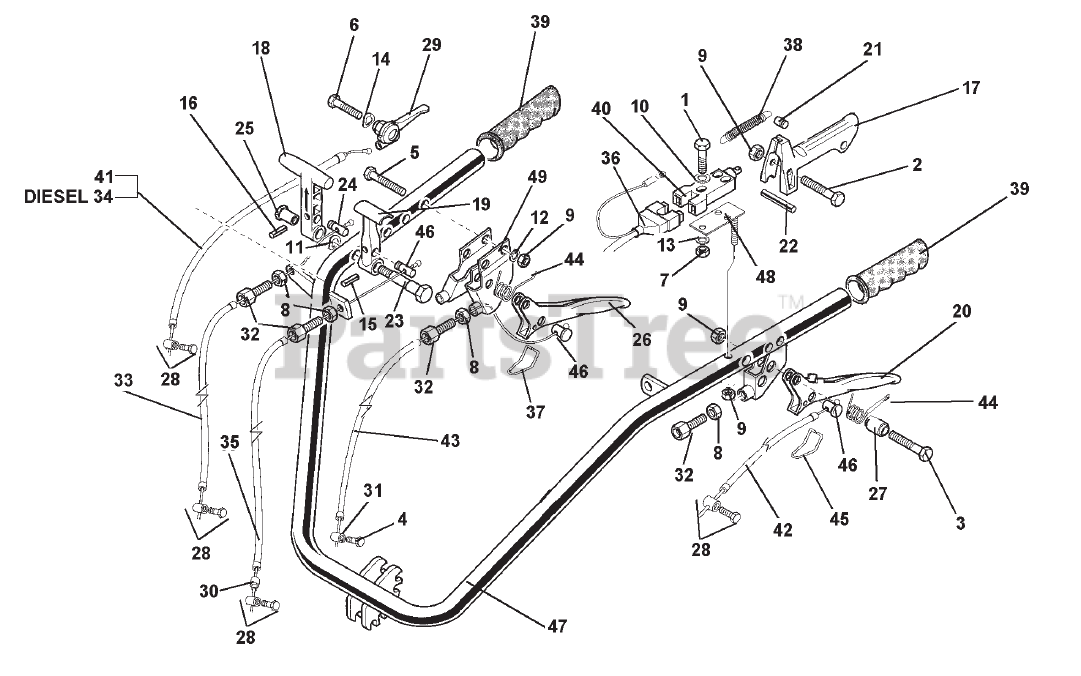

605 - BCS America Two-Wheeled Tractor Handlebar (SN: 152469 & Above) Parts Diagram

Two-Wheeled Tractor

Handlebar (SN: 152469 & Above) Parts Diagram

  • Title

1

BCS America 311.11086

SCREW TE M4X25

$1.49

$

In Stock, Qty 8

0

2

BCS America 311.11097

SCREW TE M6X45

$1.49

$

In Stock, only 2 left!

0

3

BCS America 311.12089

SCREW M6X25

$1.49

$

In Stock, only 3 left!

0

4

BCS America 311.12090

SCREW TE M6X16

$0.99

$

In Stock, only 4 left!

0

5

BCS America 311.12091

SCREW M6X40

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 311.12154

SCREW TE M8X40

$1.99

$

In Stock, only 4 left!

0

7

BCS America 312.11040

NUT M4

$0.99

$

In Stock, only 2 left!

0

8

BCS America 312.11080

NUT M8

$0.99

$

In Stock, only 3 left!

0

9

BCS America 312.41060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 4 left!

0

10

BCS America 314.11043

FLAT WASHER 4,3

$0.99

$

In Stock, Qty 8

0

11

BCS America 314.11084

WASHER

$0.99

$

In Stock, only 4 left!

0

12

BCS America 314.22064

WASHER, LOCK 6,4

$0.99

$

Usually ships in 5-8 days

0

13

BCS America 314.23043

LOCK WASHER B 4,3

$0.99

$

In Stock, Qty 6

0

14

BCS America 314.23084

WASHER, LOCK 8,4

$0.99

$

In Stock, Qty 10

0

15

BCS America 342.11040

PIN, LOCKING 4X20

$1.49

$

Usually ships in 5-8 days

0

16

BCS America 342.13020

PIN, LOCKING M4X20

$1.49

$

Usually ships in 5-8 days

0

17

BCS America 552.48041

MOTOR STOP LEVER

$24.99

$

In Stock, only 3 left!

0

18

BCS America 552.48283

REVERSER LEVER

$34.99

$

In Stock, only 3 left!

0

19

BCS America 552.48284

LEVER DIFFERENTIAL LOCKING

$13.99

$

In Stock, only 1 left!

0

20

BCS America 561.47655

CLUTCH LEVER

$45.99

$

In Stock, only 1 left!

0

21

BCS America 561.47711

SPRING PIN

$3.99

$

In Stock, only 1 left!

0

22

BCS America 561.48037

LEVER STOP FOR MOTOR STOP

$3.49

$

Usually ships in 5-8 days

0

23

BCS America 561.48285

PIN

$20.99

$

In Stock, only 1 left!

0

24

BCS America 561.48286

DRILLED PIN

$22.99

$

In Stock, only 1 left!

0

25

BCS America 561.48287

DRILLED PIN

$9.99

$

In Stock, only 2 left!

0

26

BCS America 561.48470

LEVER

$32.99

$

In Stock, only 1 left!

0

27

BCS America 561.50361

LEVER SPACER

$4.99

$

In Stock, only 1 left!

0

28

BCS America 580.02429

CLAMP, CABLE

$5.99

$

In Stock, only 2 left!

0

29

BCS America 580.02538

LEVER, ACCELERATOR

$34.99

$

In Stock, only 1 left!

0

30

BCS America 580.42167

CABLE END

$2.99

$

In Stock, only 2 left!

0

31

BCS America 580.42200

PIN, CABLE CLAMP

$6.49

$

Usually ships in 5-8 days

0

32

BCS America 580.42202

SCREW, ADJUSTING M8

$6.99

$

In Stock, only 1 left!

0

33

BCS America 580.43216

CABLE, CLUTCH

$25.99

$

In Stock, Qty 5

0

34

BCS America 580.43219

THROTTLE CABLE, DIESEL

$21.99

$

In Stock, only 1 left!

0

35

BCS America 580.43223

CABLE, DIFFERENTIAL LOCK OUT

$32.99

$

In Stock, only 3 left!

0

36

BCS America 580.47568

SWITCH WIRING HARNESS

$29.99

$

Usually ships in 5-8 days

0

37

BCS America 580.47649

HOOK

$7.99

$

Usually ships in 5-8 days

0

38

BCS America 580.47712

SPRING

$14.99

$

In Stock, only 1 left!

0

39

BCS America 580.48000

GRIP

$7.49

$

Usually ships in 5-8 days

0

40

BCS America 580.48009

STOP SWITCH

$32.99

$

In Stock, only 1 left!

0

41

BCS America 580.48012

THROTTLE CABLE

$29.99

$

In Stock, only 3 left!

0

42

BCS America 580.49654

CLUTCH CABLE

$31.99

$

In Stock, only 2 left!

0

43

BCS America 580.49663

CABLE, CLUTCH

$32.99

$

In Stock, only 2 left!

0

44

BCS America 580.50345

LEVER SPRING

$3.49

$

In Stock, only 1 left!

0

45

BCS America 580.51670

HOOK

$5.49

$

Usually ships in 5-8 days

0

46

BCS America 581.50313

BARREL

$11.99

$

Usually ships in 5-8 days

0

47

BCS America 590.47608

HANDLE ASSEMBLY

$

$

Currently unavailable

48

BCS America 590.47709

SWITCH PLATE

$32.99

$

In Stock, only 1 left!

0

49

BCS America 590.48469

COUPLING FOR DOUBLE LEVER

$54.24

$

Usually ships in 5-8 days

0
