605 - BCS America Two-Wheeled Tractor Gears (SN: 150000 - 150738) Parts Diagram

Two-Wheeled Tractor

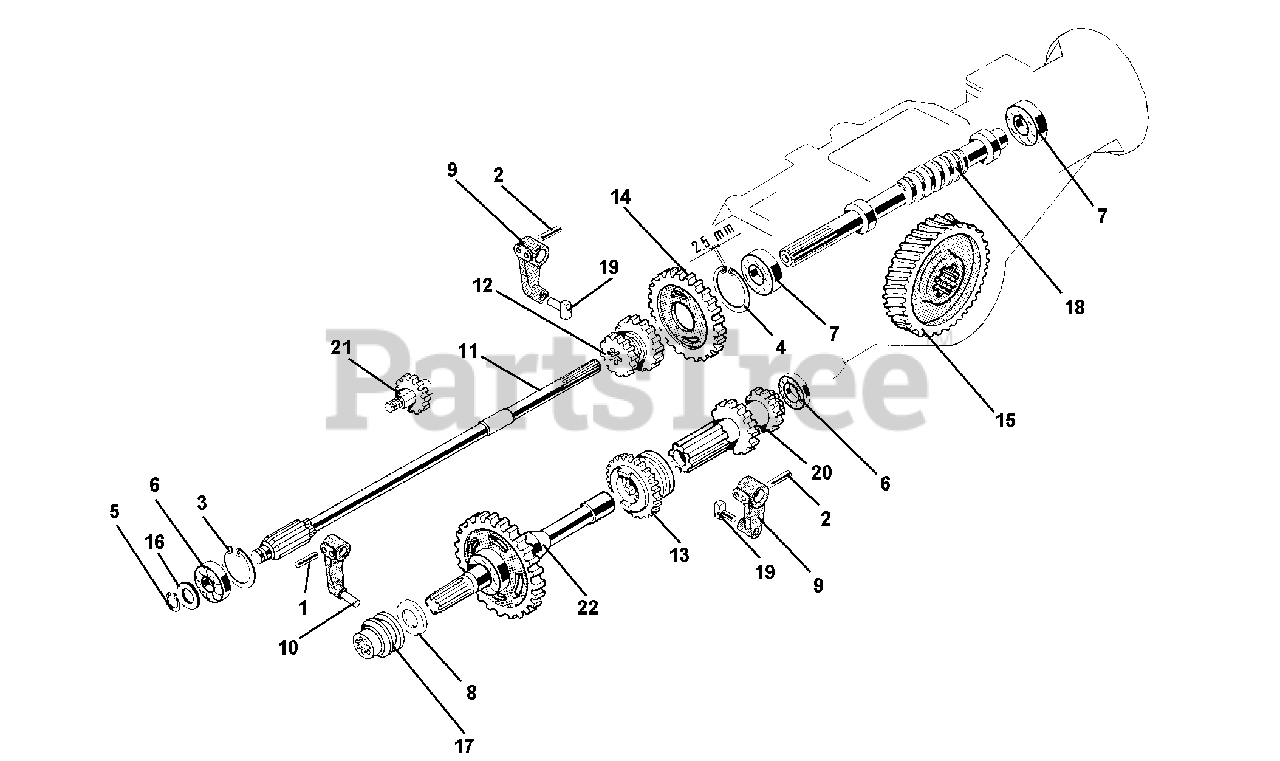

Gears (SN: 150000 - 150738) Parts Diagram

  • Title

1

BCS America 34213020

LOCKING PIN 4 X 20 SPIRAL

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 342.13024

LOCKING PIN 4 X 24 SPIRAL

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 351.11035

INSIDE CIRCLIP DIAM. 35

$2.49

$

Usually ships in 5-8 days

0

4

BCS America 351.11053

INSIDE CIRCLIP DIAM. 52

$7.49

$

Usually ships in 5-8 days

0

5

BCS America 351.21015

CIRCLIP

$0.99

$

Usually ships in 5-8 days

0

6

BCS America 371.11151

BEARING

$10.99

$

In Stock, only 1 left!

0

7

BCS America 371.11255

BEARING SKF 25 X 52 X 15 6205

$15.99

$

In Stock, only 1 left!

0

8

BCS America 382.12001

SEAL, OIL 20 X 35 X 7 STANDARD

$9.99

$

In Stock, only 2 left!

0

9

BCS America 521.43171

LEVER, SPEED CHG SLDG GR

$49.99

$

Usually ships in 5-8 days

0

10

BCS America 523.43168

SLIDE LEVER

$86.99

$

In Stock, only 1 left!

0

11

BCS America 524.47492

CLUTCH SHAFT FOR REVERSER

$429.99

$

Usually ships in 5-8 days

0

12

BCS America 524.47495

DOUBLE SLIDER

$

$

Not available

13

BCS America 524.47505

REVERSER SLIDER

$197.99

$

In Stock, only 1 left!

0

14

BCS America 524.48078

WHEELS FIRST SPEED

$

$

Not available

15

BCS America 541.43149

GEAR Z 49, LH MOTOR MOWER

$520.99

$

Usually ships in 5-8 days

0

16

BCS America 561.43932

WASHER 15.1 X 25 X 2

$1.99

$

In Stock, only 1 left!

0

17

BCS America 564.43164

SLIDER

$94.99

$

In Stock, only 1 left!

0

18

BCS America 564.48525

WORM GEAR

$257.50

$

Usually ships in 5-8 days

0

19

BCS America 580.43086

SHOE

$10.99

$

Usually ships in 5-8 days

0

20

BCS America 59047500

SECOND GEAR

$300.99

$

Usually ships in 5-8 days

0

21

BCS America 590.47509

REVERSER PIN

$341.99

$

Usually ships in 5-8 days

0

22

BCS America 590.48073

P.T.O. SHAFT

$310.99

$

Usually ships in 5-8 days

0
