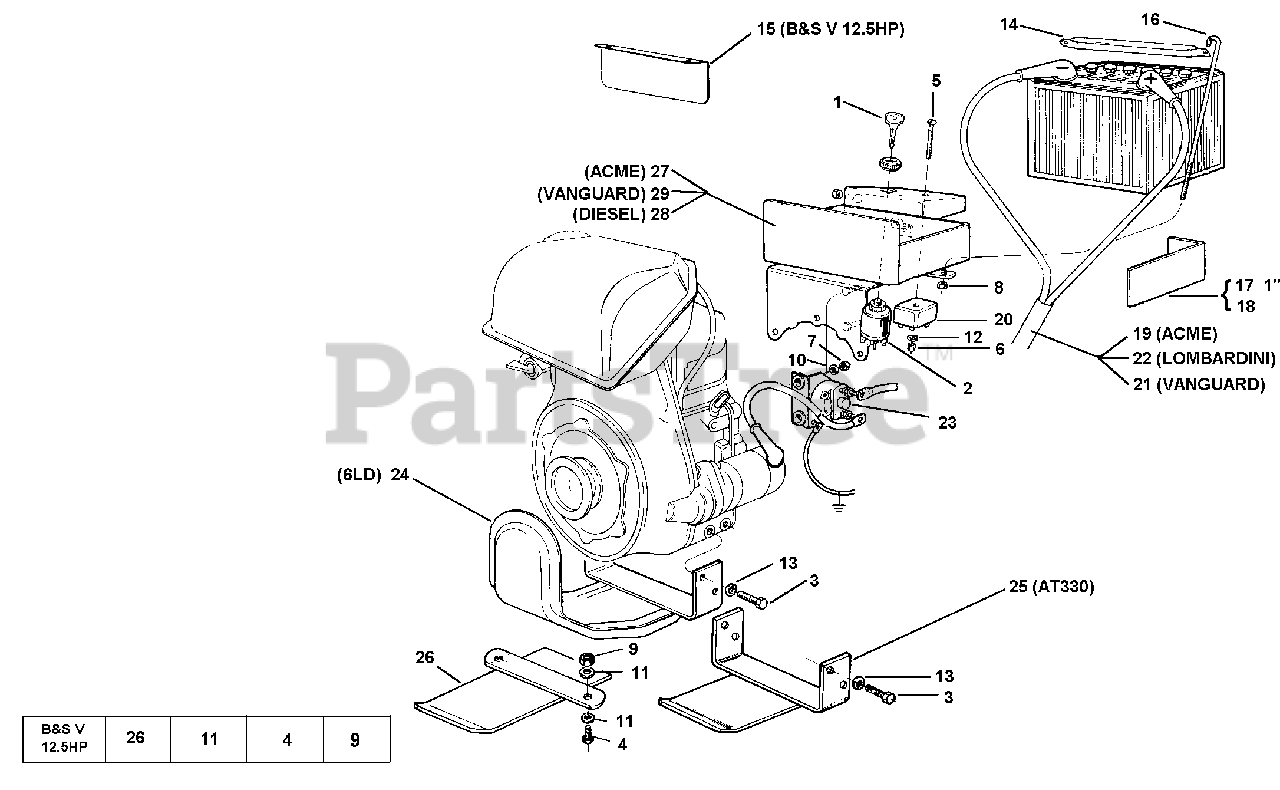

605 - BCS America Two-Wheeled Tractor Electric Start (SN: 150000 & Above) Parts Diagram

Two-Wheeled Tractor

Electric Start (SN: 150000 & Above) Parts Diagram

  • Title

1

BCS America 300.00276

KEY

$5.49

$

In Stock, only 2 left!

0

2

BCS America 300.00277

SWITCH

$127.99

$

Usually ships in 5-8 days

0

3

BCS America 311.11151

SCREW M8 X 16

$1.99

$

In Stock, only 4 left!

0

4

BCS America 311.12154

SCREW M8 X 40

$1.99

$

In Stock, only 4 left!

0

5

BCS America 311.61043

SCREW TC M4 X 30 UNI 6107

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 31211040

NUT M4

$0.99

$

In Stock, only 2 left!

0

7

BCS America 31211060

NUT M6

$0.99

$

In Stock, Qty 8

0

8

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 2 left!

0

9

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

10

BCS America 314.11064

WASHER, FLAT 6.4

$0.99

$

In Stock, Qty 10

0

11

BCS America 314.11084

WASHER, LOCK 8.4

$0.99

$

In Stock, only 4 left!

0

12

BCS America 314.23043

WASHER, LOCK 4.3

$0.99

$

In Stock, Qty 6

0

13

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

14

BCS America 561.19937

BATTERY BRACKET

$32.99

$

Usually ships in 5-8 days

0

15

BCS America 561.47457

GUARD, BATTERY

$

$

Currently unavailable

16

BCS America 56149590

BATTERY TIEROD

$14.99

$

Usually ships in 5-8 days

0

17

BCS America 580.43031

SHOCK PROOF RUBBER

$

$

Currently unavailable

18

BCS America 580.43032

ANTISHOCK BAT

$32.06

$

Usually ships in 5-8 days

0

19

BCS America 580.43034

ELEC. START CABLES MC 715

$58.46

$

Usually ships in 5-8 days

0

20

BCS America 580.43036

RECTIFIER

$61.99

$

Usually ships in 5-8 days

0

21

BCS America 58047460

ELECTRIC STARTER CABLES B&S

$106.99

$

Usually ships in 5-8 days

0

22

BCS America 580.48124

ELECTRIC STARTER WIRES

$

$

Currently unavailable

23

BCS America 581.00052

BOSCH RELAY 0332002160

$532.99

$

Usually ships in 5-8 days

0

24

BCS America 590.43046

MOTOR HOOD

$

$

Currently unavailable

25

BCS America 59047450

ENGINE GUARD

$69.99

$

Usually ships in 5-8 days

0

26

BCS America 590.47454

GUARD B&S 12.5HP

$144.99

$

Usually ships in 5-8 days

0

27

BCS America 590.47708

BATTERY SUPPORT

$105.99

$

Usually ships in 5-8 days

0

28

BCS America 590.48122

BATTERY SUPPORT

$

$

Currently unavailable

29

BCS America 590.49763

BATTERY SUPPORT

$

$

Currently unavailable
