605 (190-605-100) - Cub Cadet Utility Dump Cart Utility Dump Cart Parts Diagram

Utility Dump Cart

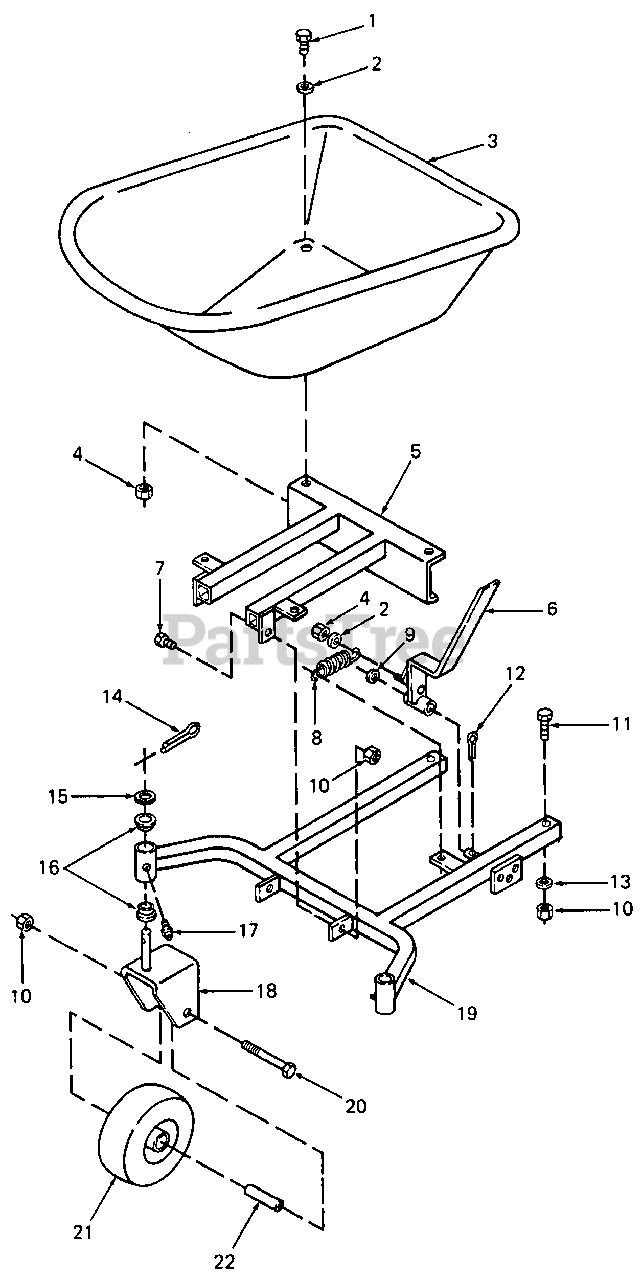

Utility Dump Cart Parts Diagram

  • Title

1

Cub Cadet 710-0514

Bolt, Hex, 3/8-16 X 1.0

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0133

Washer, Flat, 3/8

$5.49

$

In Stock, Qty 7

0

3

Cub Cadet AF-44201

Tray, Poly

$

$

Not available

4

Cub Cadet 712-0375

Nut, Lock, 3/8

$4.49

$

In Stock, Qty 6

0

5

Cub Cadet TE-1000590

Weldment, Cart Tray Frame

$

$

Currently unavailable

6

Cub Cadet TE-1000587

Weldment, Handle

$

$

Not available

7

Cub Cadet 710-0865

Bolt, Hex, 1/2-13 X 1.0

$

$

Not available

8

Cub Cadet TE-1000298

Spring, Idler (Extension)

$

$

Not available

9

Cub Cadet TE-9421879

Washer, Flat, 5/8

$

$

Currently unavailable

10

Cub Cadet 712-0384

Nut, Lock, 1/2
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

11

Cub Cadet 710-0489

Bolt, Hex, 1/2-13 X 2.0

$7.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 714-0142

Pin, Cotter, 3/16 X 1-1/2

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

14

Cub Cadet TE-103422

Pin, Cotter, 1/4 X 2.0

$

$

Currently unavailable

15

Cub Cadet 736-0250

Washer, Flat, 1

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet TE-1000308

Bushing, Caster Fork

$

$

Not available

17

Cub Cadet TE-1000340

Fitting, Grease

$

$

Not available

18

Cub Cadet TE-1000179

Weldment, Fork

$

$

Not available

19

Cub Cadet TE-1000593

Weldment, Cart Frame

$

$

Currently unavailable

20

Cub Cadet 710-0382

Bolt, Hex, 1/2-13 X 5.0

$12.99

$

In Stock, only 2 left!

0

21

Cub Cadet TE-1000336

Wheel, Pneumatic Gage, 3-1/2 X 9

$

$

Not available

22

Cub Cadet TE-1000187

Tube, Caster Wheel Spacer

$

$

Currently unavailable
