604 - BCS America Two-Wheeled Tractor Handlebar (SN: 5001 - 5949) Parts Diagram

Two-Wheeled Tractor

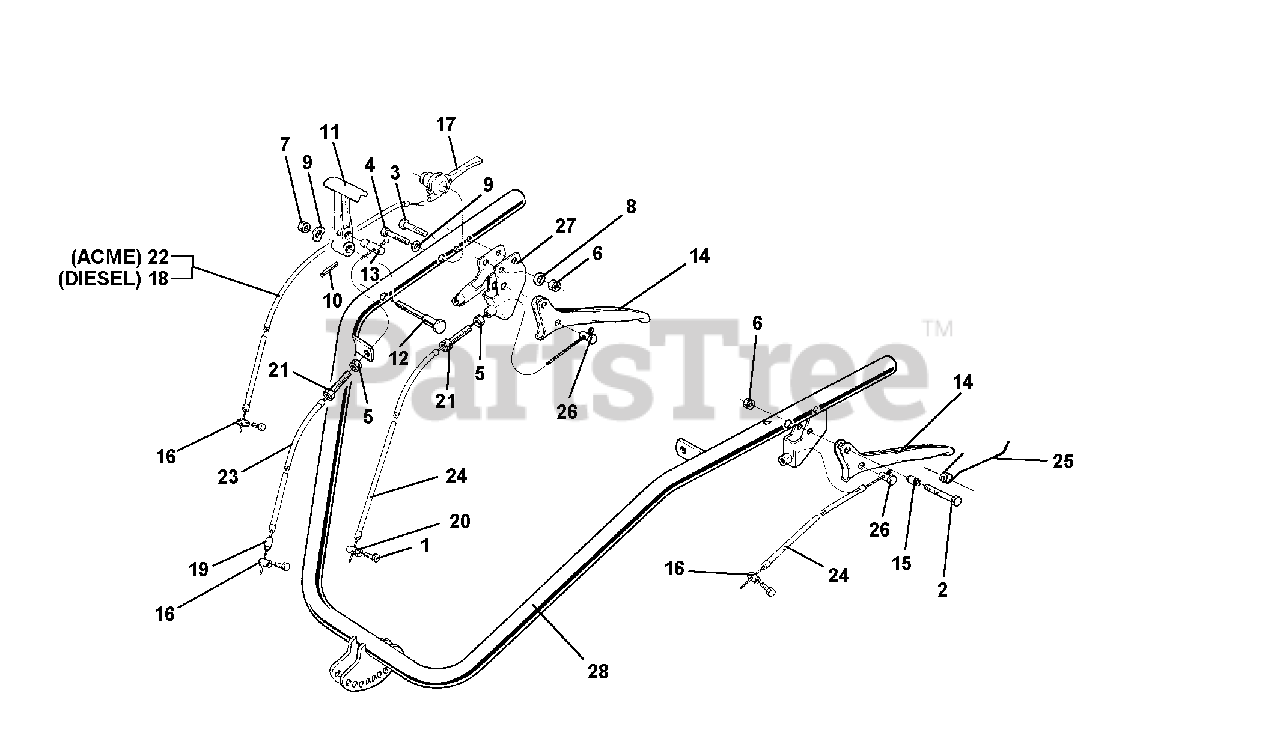

Handlebar (SN: 5001 - 5949) Parts Diagram

  • Title

1

BCS America 311.11091

SCREW TE M6 X 14

$1.49

$

In Stock, only 4 left!

0

2

BCS America 311.12089

SCREW M6 X 25

$1.49

$

In Stock, only 3 left!

0

3

BCS America 311.12091

SCREW M6 X 40

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.12154

SCREW TE M8 X 40

$1.99

$

In Stock, only 4 left!

0

5

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

6

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 4 left!

0

7

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

8

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

9

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

10

BCS America 34211040

PIN, LOCKING 4 X 20

$1.49

$

Usually ships in 5-8 days

0

11

BCS America 552.48284

LEVER DIFFERENTIAL LOCKING

$13.99

$

In Stock, only 1 left!

0

12

BCS America 561.48285

PIN

$20.99

$

In Stock, only 1 left!

0

13

BCS America 561.48286

DRILLED PIN

$22.99

$

In Stock, only 1 left!

0

14

BCS America 56148470

LEVER

$32.99

$

In Stock, only 1 left!

0

15

BCS America 561.50361

LEVER SPACER

$4.99

$

In Stock, only 1 left!

0

16

BCS America 580.02429

CLAMP, CABLE

$5.99

$

In Stock, only 2 left!

0

17

BCS America 580.02538

LEVER, ACCELERATOR

$34.99

$

In Stock, only 1 left!

0

18

BCS America 580.26222

CABLE & SHEATH, ACCEL AD114

$22.99

$

Usually ships in 5-8 days

0

19

BCS America 580.42167

END, SHEATH

$2.99

$

In Stock, only 2 left!

0

20

BCS America 58042200

PIN, CABLE CLAMP

$6.49

$

Usually ships in 5-8 days

0

21

BCS America 580.42202

SCREW, ADJUSTING M8

$6.99

$

In Stock, only 1 left!

0

22

BCS America 580.43242

CABLE & SHEATH, ACCEL. L 1380

$21.99

$

Usually ships in 5-8 days

0

23

BCS America 580.48547

WIRE AND SHEATH L 800

$11.99

$

Usually ships in 5-8 days

0

24

BCS America 58049670

SHEATH CABLE

$30.99

$

In Stock, only 1 left!

0

25

BCS America 580.50345

LEVER SPRING

$3.49

$

In Stock, only 1 left!

0

26

BCS America 581.50313

BARREL

$11.99

$

Usually ships in 5-8 days

0

27

BCS America 590.48469

COUPLING FOR DOUBLE LEVER

$54.24

$

Usually ships in 5-8 days

0

28

BCS America 590.48481

HANDLEBAR

$

$

Currently unavailable
