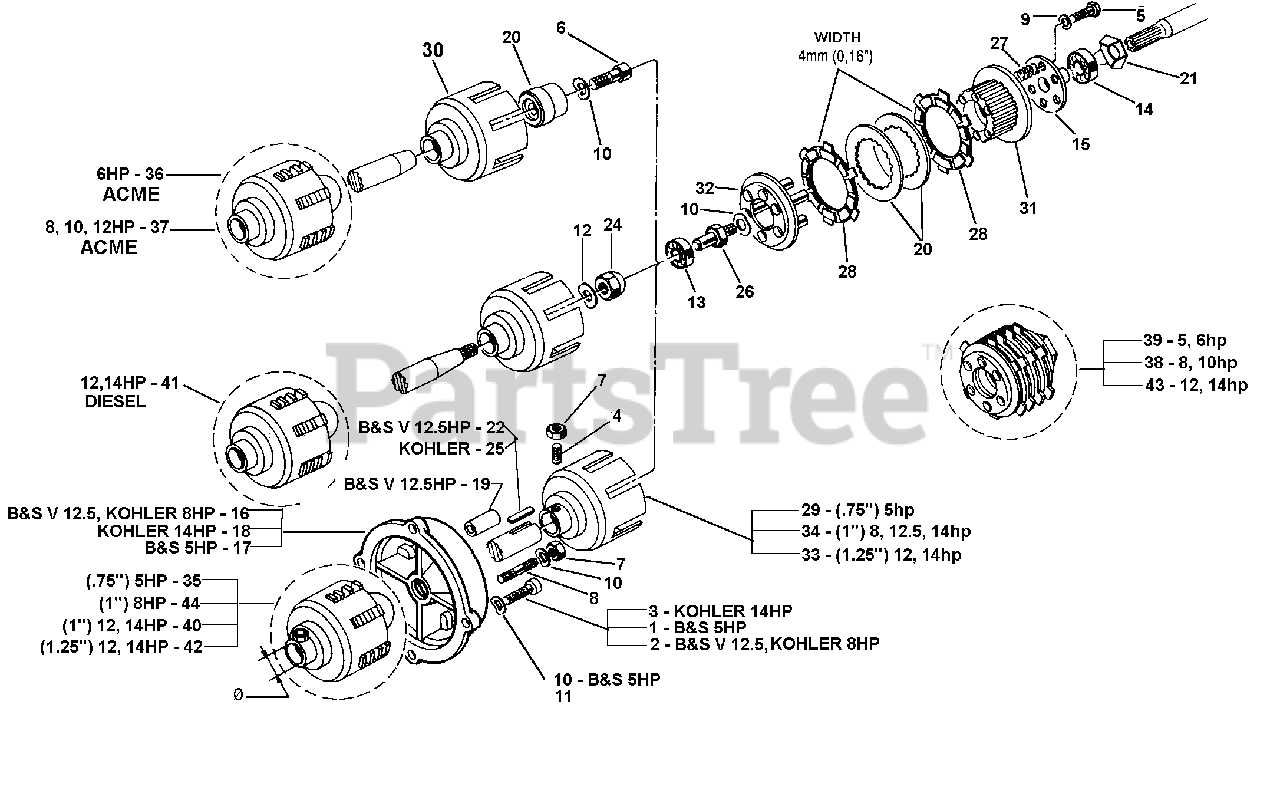

604 - BCS America Two-Wheeled Tractor Disc Clutch (SN: 6246 & Above) Parts Diagram

Two-Wheeled Tractor

Disc Clutch (SN: 6246 & Above) Parts Diagram

  • Title

1

BCS America 311.00003

SCREW 5/16 X 7/8

$1.99

$

Usually ships in 5-8 days

0

2

BCS America 311.00015

SCREW 3/8 X 1

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 311.00024

SCREW

$

$

Currently unavailable

4

BCS America 311.00781

SCREW M8 X 14

$1.99

$

In Stock, Qty 6

0

5

BCS America 311.12051

SCREW

$

$

Currently unavailable

6

BCS America 311.52085

SCREW M8 X 25

$1.49

$

Usually ships in 5-8 days

0

7

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

8

BCS America 313.12088

STUD M8 X 40 X 14 X 14

$8.49

$

In Stock, only 2 left!

0

9

BCS America 314.21062

SUPER WASHER

$0.99

$

Usually ships in 5-8 days

0

10

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

11

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, Qty 5

0

12

BCS America 31423170

WASHER, LOCK 17

$1.49

$

Usually ships in 5-8 days

0

13

BCS America 371.12099

BEARING

$22.99

$

Usually ships in 5-8 days

0

14

BCS America 371.12171

BEARING 17 X 40 X 12

$10.99

$

In Stock, only 3 left!

0

15

BCS America 523.49818

CLUTCH FLANGE

$120.99

$

Usually ships in 5-8 days

0

16

BCS America 531.49819

FLANGE FOR KOHLER ENGINE 8HP

$263.99

$

Usually ships in 5-8 days

0

17

BCS America 532.47468

FLANGE FOR 5HP B&S

$114.99

$

Usually ships in 5-8 days

0

18

BCS America 532.49783

FLANGE FOR KOHLER ENGINE 14HP

$383.99

$

Usually ships in 5-8 days

0

19

BCS America 561.47456

TWIN SPACER B&S

$

$

Currently unavailable

20

BCS America 56149820

INSIDE CLUTCH DISC

$18.99

$

Usually ships in 5-8 days

0

21

BCS America 563.43106

BEARING PLATE

$24.99

$

Usually ships in 5-8 days

0

22

BCS America 563.47458

KEY B&S 12.5HP

$20.99

$

Usually ships in 5-8 days

0

23

BCS America 563.47472

BEARING HOLDER BUSHING

$68.99

$

Usually ships in 5-8 days

0

24

BCS America 563.49562

SPECIAL NUT

$34.99

$

Usually ships in 5-8 days

0

25

BCS America 563.49782

KEY

$10.99

$

Usually ships in 5-8 days

0

26

BCS America 563.49816

SCREW 9 X 1

$32.99

$

In Stock, only 1 left!

0

27

BCS America 580.49815

DISC CLUTCH SPRING

$10.99

$

Usually ships in 5-8 days

0

28

BCS America 580.49821

OUTSIDE DISC

$68.99

$

Usually ships in 5-8 days

0

29

BCS America 590.47466

CLUTCH BELL

$122.20

$

Usually ships in 5-8 days

0

30

BCS America 590.49803

CLUTCH BELL

$872.99

$

Usually ships in 5-8 days

0

31

BCS America 590.49807

CLUTCH HUB

$223.99

$

Usually ships in 5-8 days

0

32

BCS America 59049810

CLUTCH BOTTOM

$84.99

$

Usually ships in 5-8 days

0

33

BCS America 590.49813

KOHLER CLUTCH BELL

$

$

Currently unavailable

34

BCS America 590.49823

CLUTCH BELL

$211.99

$

Usually ships in 5-8 days

0

35

BCS America 592.47465

DISC CLUTCH ASSEMBLY

$

$

Currently unavailable

36

BCS America 592.47469

DISC CLUTCH ASSEMBLY

$

$

Currently unavailable

37

BCS America 59247470

DISC CLUTCH ASSEMBLY

$776.99

$

Usually ships in 5-8 days

0

38

BCS America 592.47471

DISC ASSEMBLY

$463.99

$

Usually ships in 5-8 days

0

39

BCS America 592.47475

DISC ASSEMBLY

$397.54

$

Usually ships in 5-8 days

0

40

BCS America 592.47478

DISC CLUTCH ASSEMBLY

$

$

Currently unavailable

41

BCS America 59249800

DISC CLUTCH ASSEMBLY

$

$

Not available

42

BCS America 592.49801

DISC CLUTCH ASSEMBLY

$

$

Currently unavailable

43

BCS America 592.49802

DISC ASSEMBLY

$371.66

$

Usually ships in 5-8 days

0

44

BCS America 592.49809

DISC CLUTCH ASSEMBLY

$

$

Currently unavailable
