604 - BCS America Two-Wheeled Tractor Differential (SN: 5001 & Above) Parts Diagram

Two-Wheeled Tractor

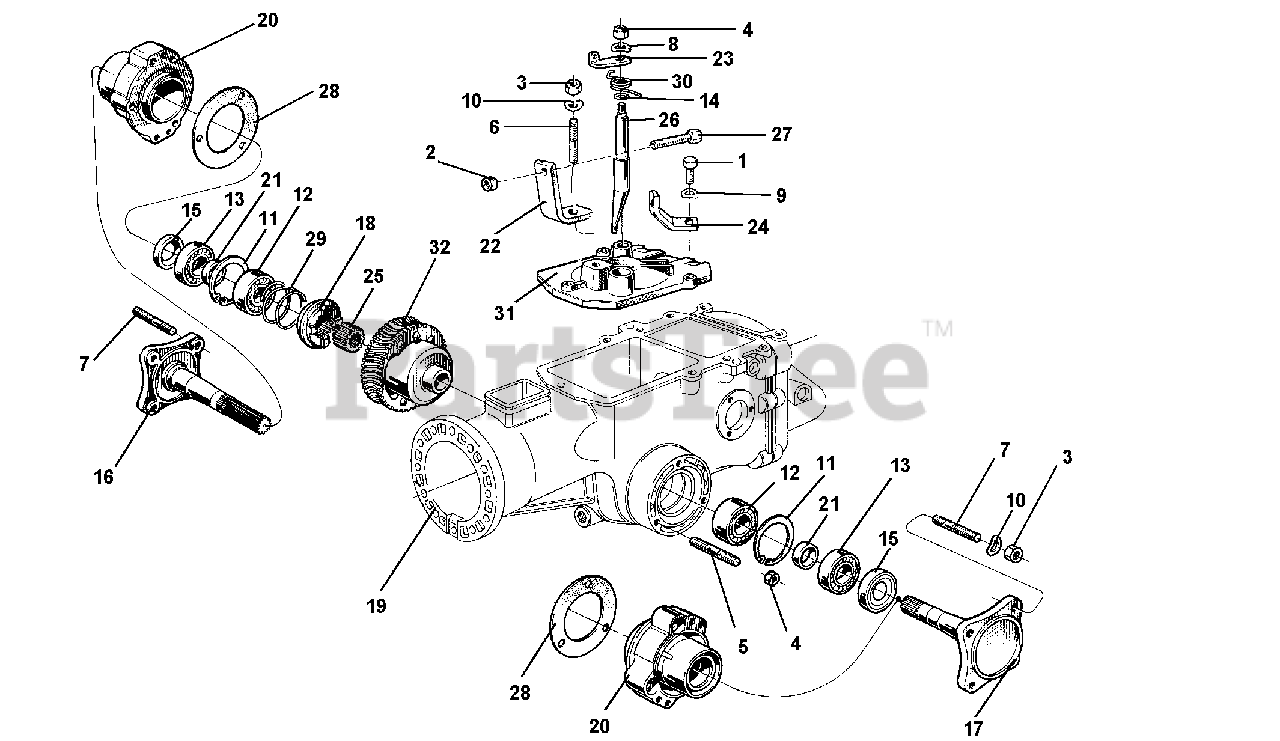

Differential (SN: 5001 & Above) Parts Diagram

  • Title
1

BCS America 311.12152

SCREW TE M8 X 30

$1.49

$

In Stock, only 4 left!

0

$0.99

$

In Stock, only 3 left!

0

$1.49

$

In Stock, only 3 left!

0

4

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

5

BCS America 31312080

STUD M8 X 46 X 20 X 12

$1.99

$

In Stock, only 1 left!

0

6

BCS America 313.12101

STUD M10 X 37 X 19 X 15 8G

$7.99

$

Usually ships in 5-8 days

0

7

BCS America 313.12102

STUD M10 X 40 X 22 X 14

$2.49

$

In Stock, only 4 left!

0

8

BCS America 314.11084

WASHER, FLAT 8.4

$0.99

$

In Stock, only 4 left!

0

9

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

10

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, Qty 5

0

11

BCS America 351.11047

CIRCLIP, INTERN. D 47

$1.99

$

In Stock, only 1 left!

0

12

BCS America 371.11202

BEARING 20 X 52 X 15 6304

$

$

Currently unavailable

13

BCS America 371.11253

BEARING 25 X 47 X 12

$15.99

$

Usually ships in 5-8 days

0

14

BCS America 38111400

O-RING 2056 14.00 X 1.78

$0.99

$

Usually ships in 5-8 days

0

15

BCS America 382.13002

SEAL, OIL 30 X 40 X 7 STANDARD

$7.99

$

In Stock, only 1 left!

0

16

BCS America 524.43852

HALF AXLE RIGHT LONG

$311.99

$

Usually ships in 5-8 days

0

17

BCS America 524.43853

HALF AXLE LEFT SHORT

$293.99

$

Usually ships in 5-8 days

0

18

$125.99

$

Usually ships in 5-8 days

0

19

BCS America 531.48055

CASING 5 SPEEDS GEARBOX

$

$

Currently unavailable

20

BCS America 532.43851

HUB FOR HALF-AXLE

$121.99

$

Usually ships in 5-8 days

0

21

BCS America 561.43865

RING FOR HALF AXLE

$38.99

$

Usually ships in 5-8 days

0

22

BCS America 561.43878

BRACKET CLUTCH CONTRAST

$33.99

$

Usually ships in 5-8 days

0

23

BCS America 56143880

LEVER RELEASE

$18.99

$

Usually ships in 5-8 days

0

24

BCS America 561.43883

CONTRAST DIFFERENTIAL SHEATH

$14.99

$

Usually ships in 5-8 days

0

25

BCS America 564.43857

SPACER FOR DIFFERENTIAL

$64.99

$

Usually ships in 5-8 days

0

$111.99

$

Usually ships in 5-8 days

0

27

BCS America 580.42202

SCREW, ADJUSTING M8

$6.99

$

Usually ships in 5-8 days

0

28

BCS America 580.43855

JOINT GASKET

$6.49

$

In Stock, only 3 left!

0

$3.99

$

Usually ships in 5-8 days

0

$7.99

$

Usually ships in 5-8 days

0

31

BCS America 590.43876

COVER DIFFERENTIAL

$

$

Currently unavailable

32

BCS America 590.4849

LEFT DIFFERENTIAL

$

$

Currently unavailable
