604 - BCS America Two-Wheeled Tractor Cone Clutch (SN: 5001 - 7625) Parts Diagram

Two-Wheeled Tractor

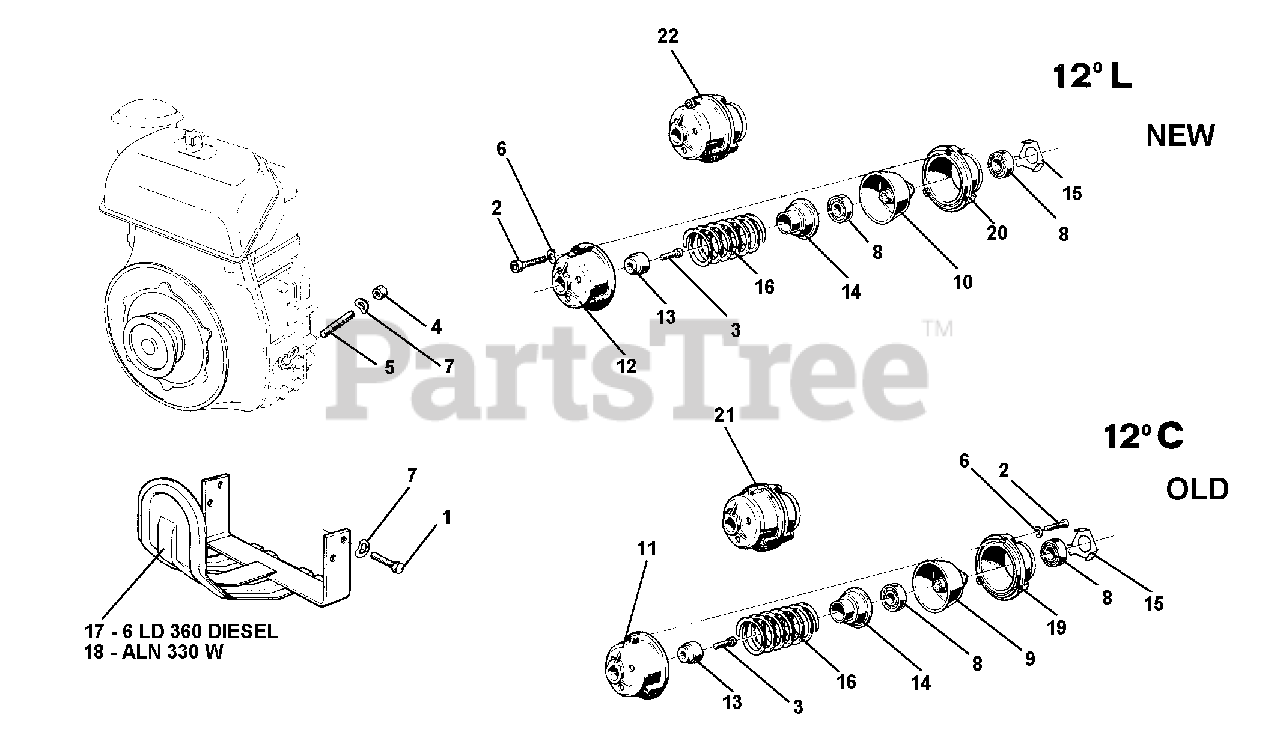

Cone Clutch (SN: 5001 - 7625) Parts Diagram

  • Title

1

BCS America 311.11151

SCREW M8 X 16

$1.99

$

In Stock, only 4 left!

0

2

BCS America 311.52059

SCREW M6 X 35

$1.99

$

Usually ships in 5-8 days

0

3

BCS America 311.52085

SCREW TE CE M8 X 25

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

5

BCS America 313.12088

STUD M8 X 40 X 14 X 14

$8.49

$

In Stock, only 2 left!

0

6

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

7

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

8

BCS America 371.12171

BEARING 17 X 40 X 12 6203 2RS

$10.99

$

In Stock, only 3 left!

0

9

BCS America 521.48095

CONE, CLUTCH

$241.99

$

In Stock, only 1 left!

0

10

BCS America 521.48105

LONG CLUTCH CONE

$211.99

$

Usually ships in 5-8 days

0

11

BCS America 531.43108

BELL, CLUTCH SPRING AL 290

$79.99

$

Usually ships in 5-8 days

0

12

BCS America 531.48107

LONG CLUTCH BELL

$88.99

$

Usually ships in 5-8 days

0

13

BCS America 561.43121

CENTERING

$17.99

$

Usually ships in 5-8 days

0

14

BCS America 561.43122

BUSH, SPRING HOLDER

$8.49

$

Usually ships in 5-8 days

0

15

BCS America 563.43106

BEARING PLATE

$24.99

$

Usually ships in 5-8 days

0

16

BCS America 58043110

SPRING CLUTCH

$60.99

$

Usually ships in 5-8 days

0

17

BCS America 590.43046

MOTOR HOOD LDA 520 MF 715 C

$

$

Currently unavailable

18

BCS America 590.43773

GUARD, MOWER MOTOR PULLEY

$175.99

$

Usually ships in 5-8 days

0

19

BCS America 590.48092

CLUTCH RING

$72.99

$

In Stock, only 1 left!

0

20

BCS America 590.48102

LONG CLUTCH RING

$175.99

$

Usually ships in 5-8 days

0

21

BCS America 59248090

REPLACED BY ITEM 22 CLUTCH

$

$

Not available

22

BCS America 592.48106

FITTED LONG CLUTCH

$325.99

$

Usually ships in 5-8 days

0
