604 (247-604-100) - Cub Cadet Edger Engine (1987) B&S 3.0 HP-80202-1830-01 Part 3 Parts Diagram

Edger Engine

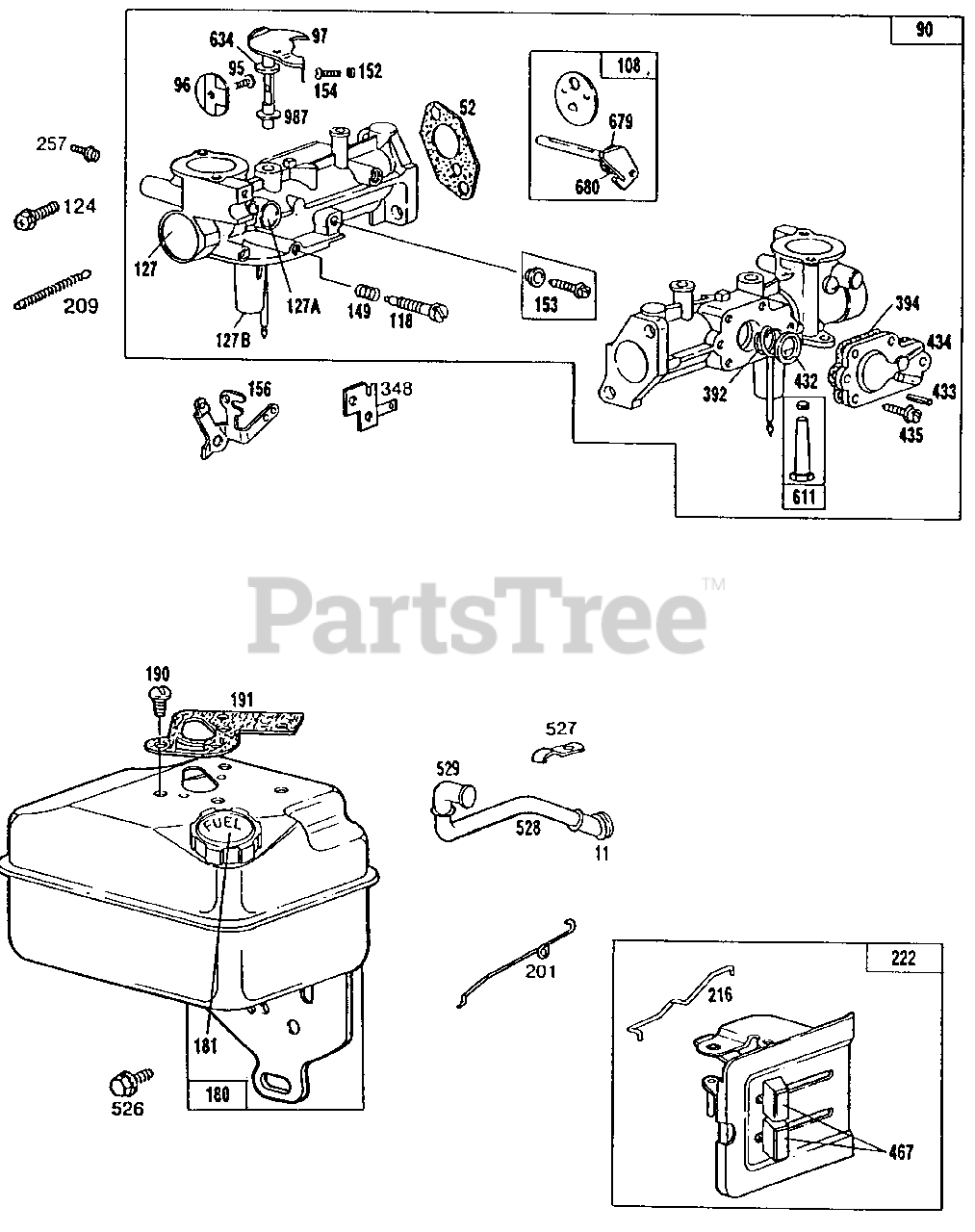

B&S 3.0 HP-80202-1830-01 Part 3 Parts Diagram

  • Title

11

Cub Cadet BS-66578

Grommet-Breather Tube
(Superseded to BS-692187)

$4.49

$

In Stock, Qty 19

0

52

Cub Cadet BS-271936

Gasket-Intake Elbow Mounting (2 used)
(Superseded to BS-273113S)

Note: (Included in Gasket Set-Part No. 397144)

$4.49

$

In Stock, Qty 17

0

90

Cub Cadet BS-490998

Carburetor Assembly

$

$

Not available

95

Cub Cadet BS-93499

Screw-Throttle Valve Mounting Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

96

Cub Cadet BS-223793

Valve-Throttle

$

$

Currently unavailable

97

Cub Cadet BS-490371

Shaft and Lever-Throttle

$

$

Currently unavailable

108

Cub Cadet BS-490495

Valve Group-Choke

$

$

Currently unavailable

118

Cub Cadet BS-231533

Valve-Needle

$

$

Not available

124

Cub Cadet BS-93357

Screw-Hex. Hd.

$

$

Not available

127

Cub Cadet BS-220352

Plug-Welch
(Superseded to BS-691718)

$13.99

$

In Stock, only 4 left!

0

127A

Cub Cadet BS-223789

Plug-Welch

$

$

Not available

127B

Cub Cadet BS-223472

Plug-Welch
(Superseded to BS-691739)

$4.49

$

Usually ships in 2-12 days

0

149

Cub Cadet BS-26336

Spring-Needle Valve

$

$

Not available

152

Cub Cadet BS-260575

Spring Throttle Adjustment

$

$

Currently unavailable

153

Cub Cadet BS-490501

Screw-Carburetor Cam and Lever

$4.99

$

Usually ships in 2-12 days

0

154

Cub Cadet BS-93527

Screw-Rd. Hd.

$

$

Not available

156

Cub Cadet BS-223857

Lever-Speed Adjuster (Remote or Manual Control)

$

$

Currently unavailable

180

Cub Cadet BS-490996

Tank Ass'y.-Fuel

$

$

Not available

181

Cub Cadet BS-490075

Cap-Fuel Tank
(Superseded to BS-494559)

$

$

Not available

190

Cub Cadet BS-94094

Screw-Fuel Tank Mounting Sem

$

$

Not available

191

Cub Cadet BS-271928

Gasket-Fuel Tank Mounting
(Superseded to BS-692241)

Note: (Included in Gasket Set-Part No. 397144)

$4.49

$

In Stock, Qty 20+

0

201

Cub Cadet BS-262325

Link-Air Vane Governor

$

$

Not available

209

Cub Cadet BS-262317

Spring-Air Vane Governor

$

$

Not available

216

Cub Cadet BS-262359

Link-Choke
(Superseded to BS-691824)

$9.99

$

In Stock, only 2 left!

0

222

Cub Cadet BS-490648

Bracket-Control

$

$

Currently unavailable

257

Cub Cadet BS-93543

Screw-Fil. Hd., 10-32 x 3/8"

$

$

Not available

348

Cub Cadet BS-296110

Plate Assembly-Stop Switch Insulator

$

$

Currently unavailable

392

Cub Cadet BS-262328

Spring-Fuel Pump Diaphragm
(Superseded to BS-691823)

$4.99

$

In Stock, only 2 left!

0

394

Cub Cadet BS-270026

Diaphragm

$3.99

$

In Stock, Qty 20+

0

432

Cub Cadet BS-221377

Cap-Spring
(Superseded to BS-690766)

$4.99

$

In Stock, only 3 left!

0

433

Cub Cadet BS-93265

Pin-Diaphragm

$

$

Currently unavailable

434

Cub Cadet BS-210959

Cover-Diaphragm
(Superseded to BS-691713)

$10.99

$

In Stock, only 1 left!

0

435

Cub Cadet BS-93141

Screw-Diaphragm Cover

$

$

Not available

467

Cub Cadet BS-280715

Knob-Control
(Superseded to BS-692295)

$9.49

$

In Stock, only 4 left!

0

526

Cub Cadet BS-93686

Screw-Tank Bracket to Cylinder Mounting Sem Uses: 66432 Washer

$

$

Currently unavailable

527

Cub Cadet BS-223786

Clamp-Breather Tube
(Superseded to BS-691741)

$4.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-231527

Tube-Breather
(Superseded to BS-692528)

$

$

Not available

529

Cub Cadet BS-67838

Grommet-Breather Tube (90ø Angle)
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 13

0

611

Cub Cadet BS-297219

Fuel Pipe and Clip Assembly

$

$

Not available

634

Cub Cadet BS-271853

Washer-Throttle Shaft (Foam)
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

679

Cub Cadet BS-270382

Washer-Choke Shaft (Foam)
(Superseded to BS-691869)

$3.99

$

In Stock, only 3 left!

0

680

Cub Cadet BS-221839

Washer-Choke Shaft

$

$

Not available

987

Cub Cadet BS-398970

Seal-Throttle Shaft
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0
