604 (247-604-100) - Cub Cadet Edger (1987) Edger Parts Diagram

Edger

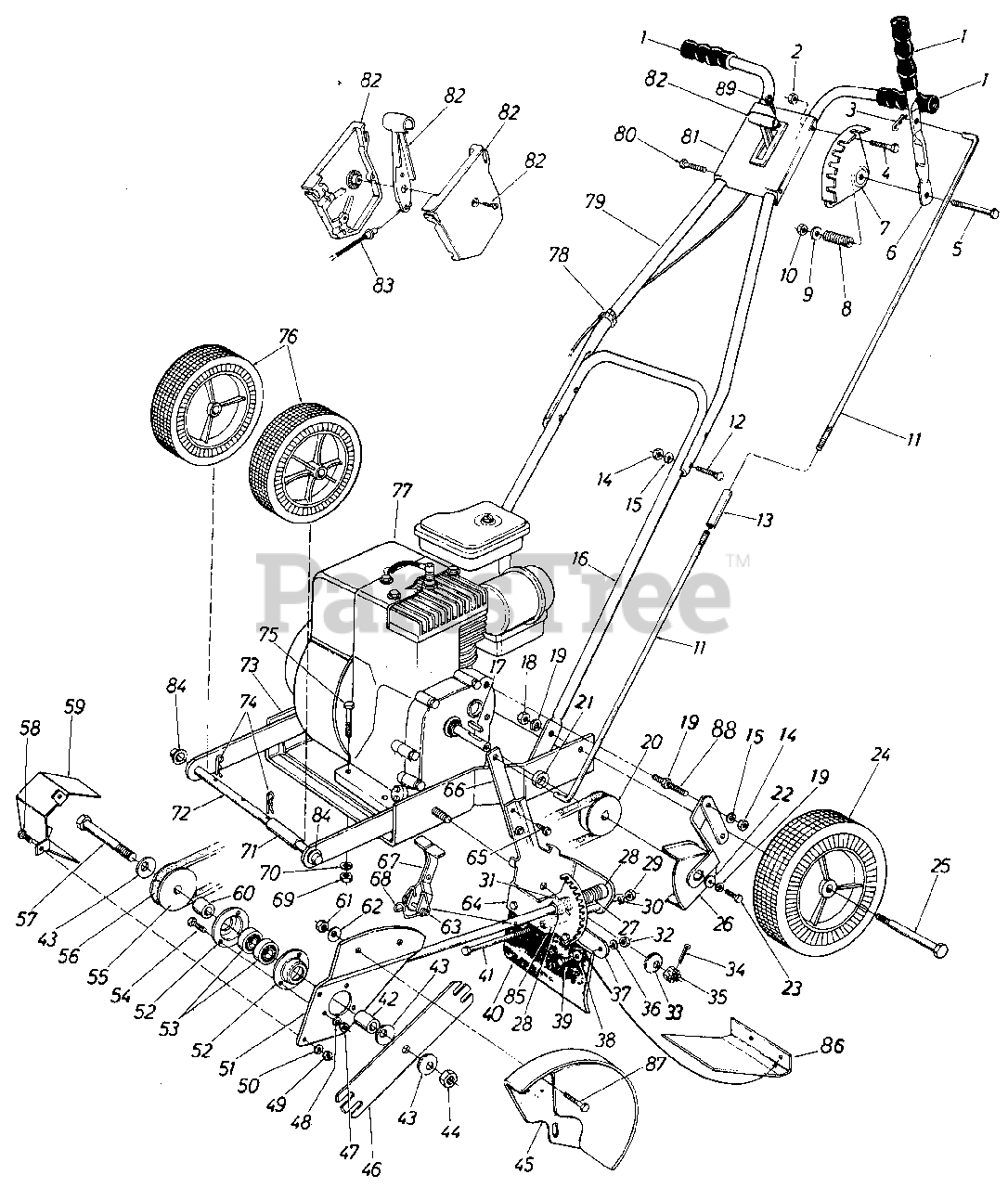

Edger Parts Diagram

  • Title

1

Cub Cadet 720-0120

GRIP-BLACK
(Superseded to 07071)

$12.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

3

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0106

SCREW-HEX 1/4-20 X 1.25

$3.99

$

In Stock, Qty 12

0

5

Cub Cadet 710-0380

SCREW-HEX 5/16-18 X 1.75
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 749-0666

HANDLE-ENGAGEMENT
(Superseded to 749-0666-0637)

Variations

Cub Cadet 749-0666-0637

Engagement Handle, Black - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

$35.99

$

In Stock, only 1 left!

0

7

Cub Cadet 781-0081

BRACKET-ADJ

Variations

Cub Cadet 781-0081-0480

USE 781-0081-0637 BRACKET-ADJ - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 781-0081-0483

USE 781-0081-0637 BRACKET-ADJ - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0081-0498

ADJUSTMENT BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0081-0637

BRACKET-ADJ - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0081-0638

BRACKET-ADJ - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0081-0662

ADJUSTMENT BRACKET - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0081-0691

ADJUSTMENT BRACKET - BLACK JACK (0691)

$

$

Not available

Cub Cadet 781-0081-0692

USE 781-0081-0637 BRACKET-ADJ - AGWAY BLUE (0692)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 732-0369

SPRING
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 736-0264

WASHER-FL-.344 X .62

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet 712-0158

NUT-HEX CENTER L-5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

11

Cub Cadet 747-0498

ROD-CLUTCH

$

$

Not available

12

Cub Cadet 710-0111

BOLT-CARRIAGE 1/4-20 X 1.25

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 750-0628

ROD-CONNECTING

$

$

Not available

14

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

15

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

Cub Cadet 09955

HANDLE-LOWER

$

$

Not available

17

Cub Cadet 714-0122

KEY-SQ 3/16 X .75

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, Qty 12

0

19

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 756-0327

PULLEY-ENGINE

$

$

Not available

21

Cub Cadet 750-0212

SPACER

$10.99

$

In Stock, Qty 18

0

22

Cub Cadet 736-0258

WASHER-FL-.385 X 1.00 X .135

$4.49

$

In Stock, only 3 left!

0

23

Cub Cadet 710-0152

BOLT-3/8 NF X 1"GR5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 734-0841

WHEEL ASSY

$

$

Not available

25

Cub Cadet 738-0108

SCREW-SHLD .498 DIA X 1.450
(Superseded to 938-0108)

$6.99

$

In Stock, Qty 6

0

26

Cub Cadet 13960

GUARD-BELT

$

$

Not available

27

Cub Cadet 732-0187

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 711-0379

BUSHING

$

$

Not available

29

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 715-0247

PIN-SPRING SPIR 3/16 X 1.00
(Superseded to 915-0247)

$

$

Not available

32

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet 736-0112

WASHER-BELL .535 ID X1.50 OD X.052

$9.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 2 left!

0

35

Cub Cadet 712-0114

NUT-HEX SLOTTED-1/2-20
(Superseded to 912-0114)

$

$

Not available

36

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

37

Cub Cadet 781-0087

BRACKET-FLAP

$

$

Not available

38

Cub Cadet 736-0342

WASHER-FL .283 ID X .749 X .030

$7.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

40

Cub Cadet 731-0725

FLAP

$

$

Not available

41

Cub Cadet 710-0402

SCREW-HEX 5/16-18 X 4.50

$

$

Not available

42

Cub Cadet 750-0229

SPACER-.635 ID X .88 OD X 1.03
(Superseded to 950-0229)

$

$

Not available

43

Cub Cadet 736-0317

WASHER-BELL

$7.99

$

In Stock, Qty 20+

0

44

Cub Cadet 712-0221

NUT-HEX INS L-5/8-18

$

$

Not available

45

Cub Cadet 781-0076

GUARD ASSY

Variations

Cub Cadet 781-0076-0637

GUARD ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0076-0483

GUARD ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0076-0498

GUARD ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0076-0638

GUARD ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0076-0650

GUARD ASSEMBLY - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0076-0662

GUARD ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0076-0665

GUARD ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 781-0076-0667

GUARD ASSEMBLY - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 781-0076-0716

GUARD ASSEMBLY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

46

Cub Cadet 781-0080

BLADE-EDGER
(Superseded to 781-0080-0637)

Variations

Cub Cadet 781-0080-0637

Edger Blade, 5/8 Hi-Lift - POWDER BLACK (0637)

$8.99

$

In Stock, Qty 20+

0

$8.99

$

In Stock, Qty 20+

0

47

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

48

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

49

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

50

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

51

Cub Cadet 781-0078

PLATE ASSY-SPINDLE

Variations

Cub Cadet 781-0078-0637

USE 781-0078 PLATE-ASSY.SPIND - POWDER BLACK (0637)

$

$

Not available

$

$

52

Cub Cadet 15319

HOUSING-BRG
(Superseded to 15319B)

$10.99

$

In Stock, Qty 5

0

53

Cub Cadet 741-0155

BEARING-BALL
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

54

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 756-0449

PULLEY
(Superseded to 956-0449)

$14.99

$

In Stock, only 2 left!

0

56

Cub Cadet 754-0142

BELT-3V-31.2
(Superseded to 954-0142)

$30.99

$

In Stock, Qty 12

0

57

Cub Cadet 710-0929

SCREW-HEX 5/8-18X4.5
(Superseded to 710-3151A)

$18.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

59

Cub Cadet 781-0086

GUARD-BELT
(Superseded to 781-0427-0637)

Variations

Cub Cadet 781-0086-0637

Belt Guard, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 750-0118

SLEEVE
(Superseded to 950-0118)

$

$

Not available

61

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 714-0121

PIN-COTTER-5/32 DIA X 1.00
(Superseded to 914-0121)

$

$

Not available

64

Cub Cadet 781-0090

BRACKET ASSY-PIVOT

Variations

Cub Cadet 781-0090-0498

BRACKET ASSY-PIVOT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0090-0637

BRACKET ASSY-PIVOT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0090-0638

BRACKET ASSY-PIVOT - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0090-0662

BRACKET ASSY-PIVOT - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0090-0665

BRACKET ASSY-PIVOT - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

Cub Cadet 710-0600

SCREW-HEX WASH SF TAPP

$3.49

$

Usually ships in 3-6 days

0

66

Cub Cadet 781-0075

EXTENSION-ARM
(Superseded to 781-0075-0637)

Variations

Cub Cadet 781-0075-0637

EXTENSION-ARM - POWDER BLACK (0637)

$

$

Not available

$

$

67

Cub Cadet 781-0093

LEVER ASSY
(Superseded to 981-0093)

$

$

Not available

68

Cub Cadet 732-0188

SPRING-TORSION
(Superseded to 732-0188A)

$12.99

$

In Stock, Qty 10

0

69

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

71

Cub Cadet 750-0622

SPACER

$

$

Not available

72

Cub Cadet 738-0613

AXLE-EDGER

$

$

Currently unavailable

73

Cub Cadet 781-0083

BASE ASSY

$

$

Not available

74

Cub Cadet 714-0101

PIN-INTERN COT-1/2 DIA

$4.99

$

In Stock, only 2 left!

0

75

Cub Cadet 710-0442

SCREW-HEX 5/16-18 X 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

76

Cub Cadet 734-0840

WHEEL ASSY

$

$

Not available

77

Note: ENGINE

$

$

Not available

78

Cub Cadet 726-0192

TIE-CABLE

$

$

Not available

79

Cub Cadet 749-0667

HANDLE-UPPER

$

$

Not available

80

Cub Cadet 710-0597

SCREW-HEX 1/4-20 X 1.00

$3.99

$

In Stock, Qty 14

0

81

Cub Cadet 781-0092

PLATE-HDLE SUPPORT

$

$

Not available

82

Cub Cadet 831-0692

CONTROL-THROTTLE
(Superseded to 831-0796A)

$21.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 746-0421

WIRE-THROTTLE
(Superseded to 946-0634)

$11.99

$

In Stock, only 1 left!

0

84

Cub Cadet 726-0221

CAP-PUSH

$6.49

$

In Stock, only 2 left!

0

85

Cub Cadet 711-0386

SPACER

$

$

Not available

86

Cub Cadet 781-0095

DEFLECTOR-DEBRIS

Variations

Cub Cadet 781-0095-0637

DEFLECTOR-DEBRIS - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0095-0483

DEBRIS DEFLECTOR CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0095-0638

DEBRIS DEFLECTOR (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0095-0665

DEBRIS DEFLECTOR YARD-MAN - YARDMAN GREEN (0665)

$

$

Not available

$

$

87

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

88

Cub Cadet 711-0699

STUD-1/4-20 X 2.12

$

$

Not available

89

Cub Cadet 710-0779

SCREW-TRUSS TAP
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0
