603 (590-603-100) - Cub Cadet Auxiliary Hydraulic Valve att Valve Kit Parts Diagram

Auxiliary Hydraulic Valve

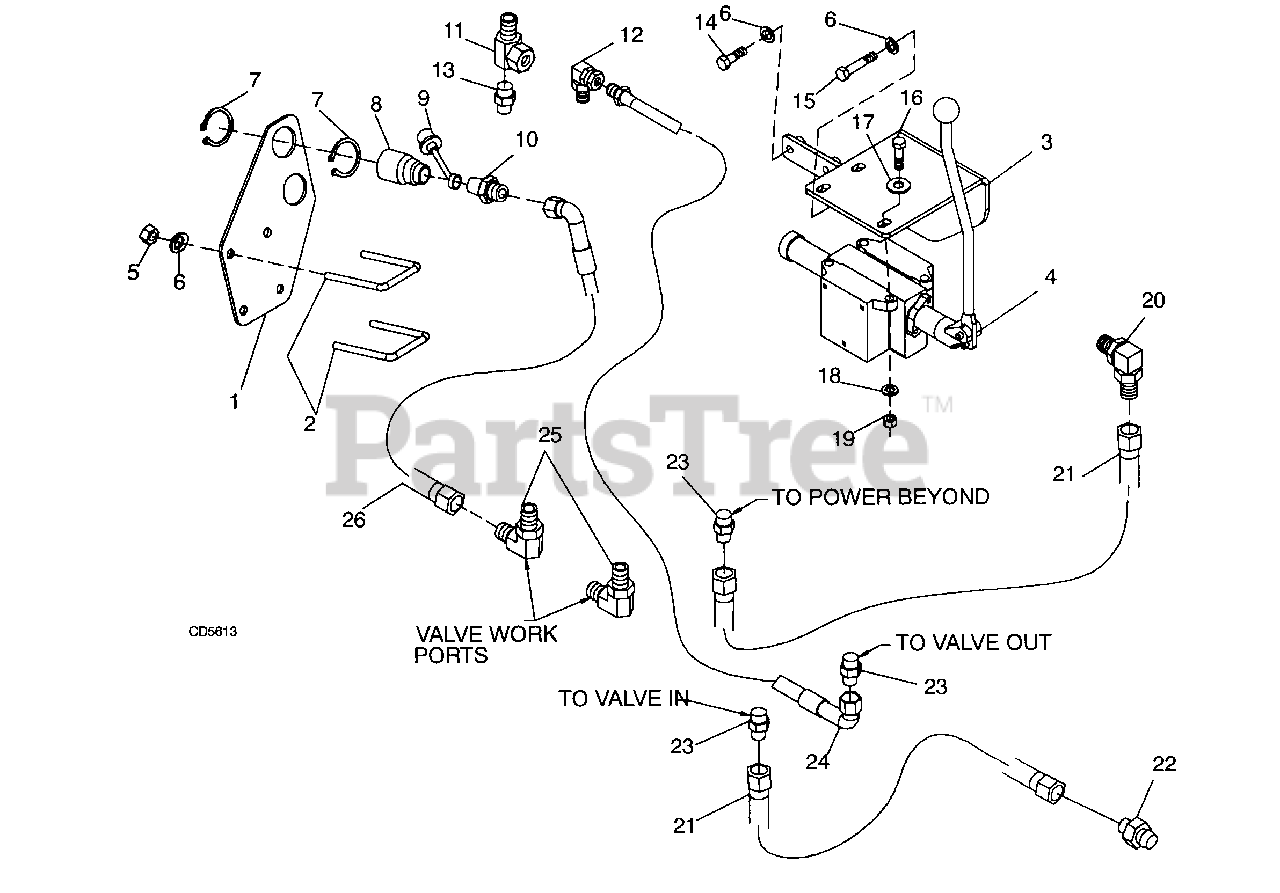

Valve Kit Parts Diagram

  • Title

1

Cub Cadet WM-58008

Quick coupler bracket

$

$

Not available

2

Cub Cadet WM-58009

5/16 NC x 2.5 x 4.0 U bolt

$

$

Not available

3

Cub Cadet WM-58005

Valve bracket

$

$

Not available

4

Cub Cadet WM-58010

Single spool control valve with handle

$

$

Not available

5

Cub Cadet WM-4529

5/16 NC Hex nut

$

$

Currently unavailable

6

Cub Cadet WM-2472

5/16 Lockwasher, zinc plated
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet WM-443005

1-1/2 Snap ring

$

$

Not available

8

Cub Cadet WM-316024

Quick-attach coupler

$

$

Not available

9

Cub Cadet WM-62

Dust plug

$

$

Currently unavailable

10

Cub Cadet WM-315057

Straight adapter

$

$

Not available

11

Cub Cadet WM-66368

3/8 NPT Tee

Note: (Used with backhoe)

$

$

Not available

12

Cub Cadet WM-11814

1/2 male x 3/8 female swivel elbow

$

$

Not available

13

Cub Cadet WM-34234

3/8 NPT x 1/2 NPT Nipple

Note: (Used with backhoe)

$

$

Not available

14

Cub Cadet WM-307130

M8-1.25 x 40mm Hex head cap screw, zinc plated

$

$

Not available

15

Cub Cadet WM-307127

M8-1.25 x 70mm Hex head cap screw, zinc plated

$

$

Not available

16

Cub Cadet WM-12169

3/8 NC x 1-1/4 Hex head cap screw, zinc plated

$

$

Not available

17

Cub Cadet WM-21757

3/8 Standard SAE flat washer

$

$

Not available

18

Cub Cadet WM-838

3/8 Lockwasher, zinc plated

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet WM-835

3/8 NC Hex nut, plated
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet WM-58013

1/2 BSPPM x 3/4 JICM 90-degree elbow

$

$

Not available

21

Cub Cadet WM-58002

3/8 x 21" x 3/4JICF Hose

$

$

Not available

22

Cub Cadet WM-58011

1/2 BSPPM x 3/4 JICM Adapter

$

$

Not available

23

Cub Cadet WM-316016

Work port fitting

$

$

Not available

24

Cub Cadet WM-44556

3/8 x 30" x 3/8 NPTM x 3/4 JICF 90-degree hose

$

$

Not available

25

Cub Cadet WM-313038

90-degree adjustable elbow

$

$

Not available

26

Cub Cadet WM-44557

3/8 x 32" x 9/16 JICF x 3/4 JICF 90-degree hose

$

$

Not available

Cub Cadet WM-44561

Cylinder instructional decal

Note: (For Quick-coupler bracket), Not shown

$

$

Not available

Cub Cadet WM-10104-1

Cub Cadet decal

Note: (For fender); Not shown

$

$

Not available
