60250 - Troy-Bilt Front-Tine Mini-Tiller (SN: C001001 - C017818) BELT COVER & PULLEYS Parts Diagram

Front-Tine Mini-Tiller

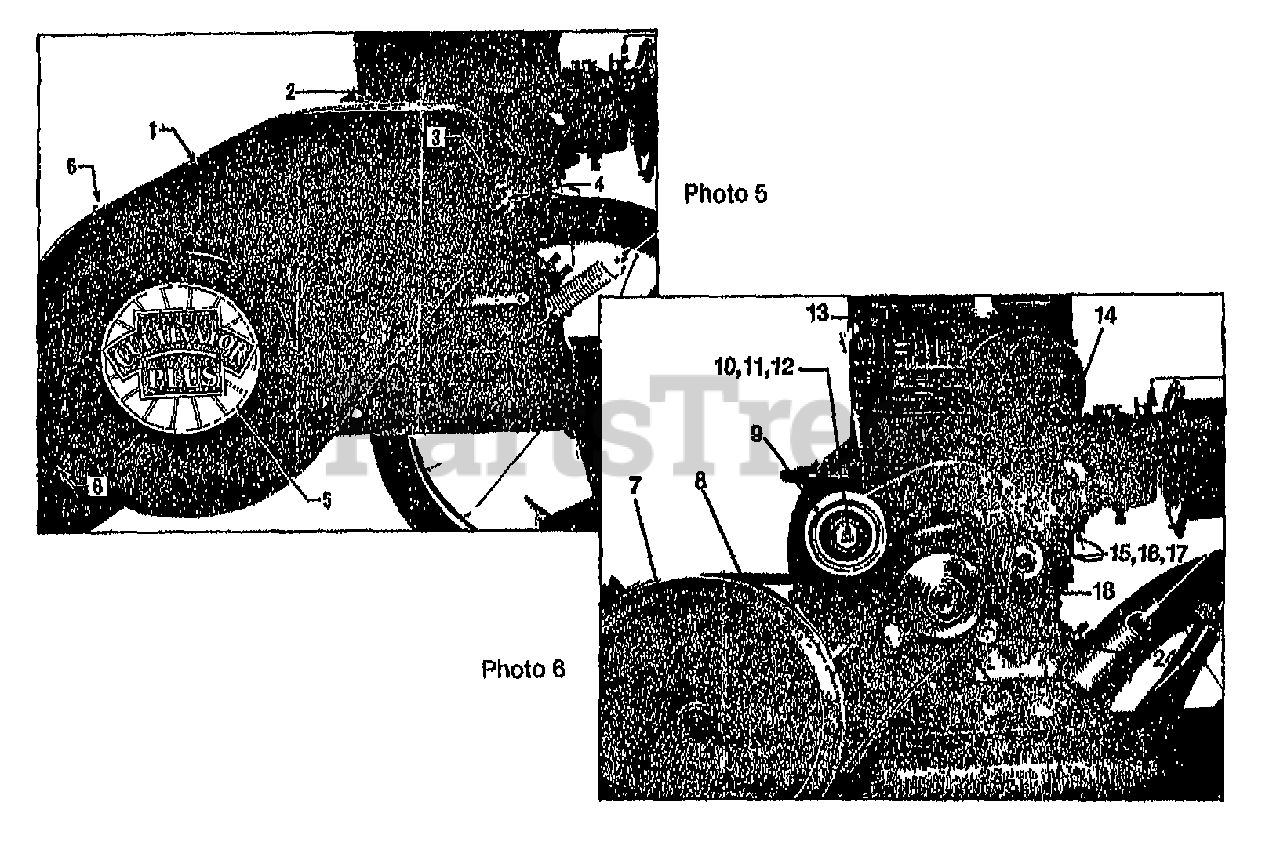

BELT COVER & PULLEYS Parts Diagram

  • Title
1

Troy-Bilt 60114

COVER-BELT W/DECAL (INCL. 60028,9368, 60071, 60074)

$

$

Currently unavailable

2

MTD 1983203

DECAL-BELT GUARD WARN 60074

$

$

Not available

3

Troy-Bilt 60028

CUSHION

$

$

Currently unavailable

4

Troy-Bilt 9368

PIN-HITCH ZP

$

$

Currently unavailable

5

Troy-Bilt 60071

DECAL-"CULTIVATOR-PLUS"

$

$

Currently unavailable

6

9589

SCR-HW M10-24X.375 ZP (ATTACHES BELT COVER TO PIVOT BRACKET)

$

$

Not available

7

Troy-Bilt 60092

PULLEY-DRIVEN PNT

$

$

Currently unavailable

8

Troy-Bilt 60070

BELT-V CULTIVATOR

$

$

Currently unavailable

9

Troy-Bilt 9496

PULLEY-IDLER ZP

$

$

Currently unavailable

10

MTD 9558

BOLT-HH 3/8-16X1.5 FTH ZP (ATTACHES IDLER PULLEY TO SHAFT)

$

$

Not available

11

Troy-Bilt 20532

BUSHING-.5X.38X.4 (LOCATED BEHIND IDLER PULLEY)
(Superseded to GW-20532)

$

$

Not available

12

Troy-Bilt 1110108

NUT-H/LK 3/8-16 (LOCATED BEHIND IDLER PULLEY)
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

13

Troy-Bilt 60019

ASSM-IDLER ARM

$

$

Currently unavailable

14

Troy-Bilt 60107

BRKT-LOCKING PNT

$

$

Currently unavailable

15

MTD 1100088

SCR-HH 5/16-18X.5 GD5 YEL (ATTACHES IDLER ARM LOCKING BRACKET TO ENGINE)

$

$

Not available

16

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 9929

WASHER-#1.125X.344 ZP
(Superseded to GW-9929)

$3.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 60034

ASSM-IDLER PLATE

$

$

Currently unavailable

?19

Troy-Bilt 9012

NKAING .375 X 1.75

$

$

Currently unavailable

?20

Troy-Bilt 9591

SCR-FLT HD 5/16-24 (ATTACHES IDLER MOUNTING PLATE TO ENGINE)

$

$

Currently unavailable

?21

Troy-Bilt 60152

PULLEY-ENGINE

$

$

Currently unavailable

?22

Troy-Bilt 9597

SCR-SET 5/16-18 X .375

$

$

Currently unavailable

?23

Troy-Bilt 60140

GUIDE-BELT PNT

$

$

Currently unavailable

24

Troy-Bilt 1100004

SCR-HH 5/16-24X.75 G5 ZP
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 18

0

?25

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

?26

MTD 9473

BUSHING .438X.313X.275

$

$

Not available
