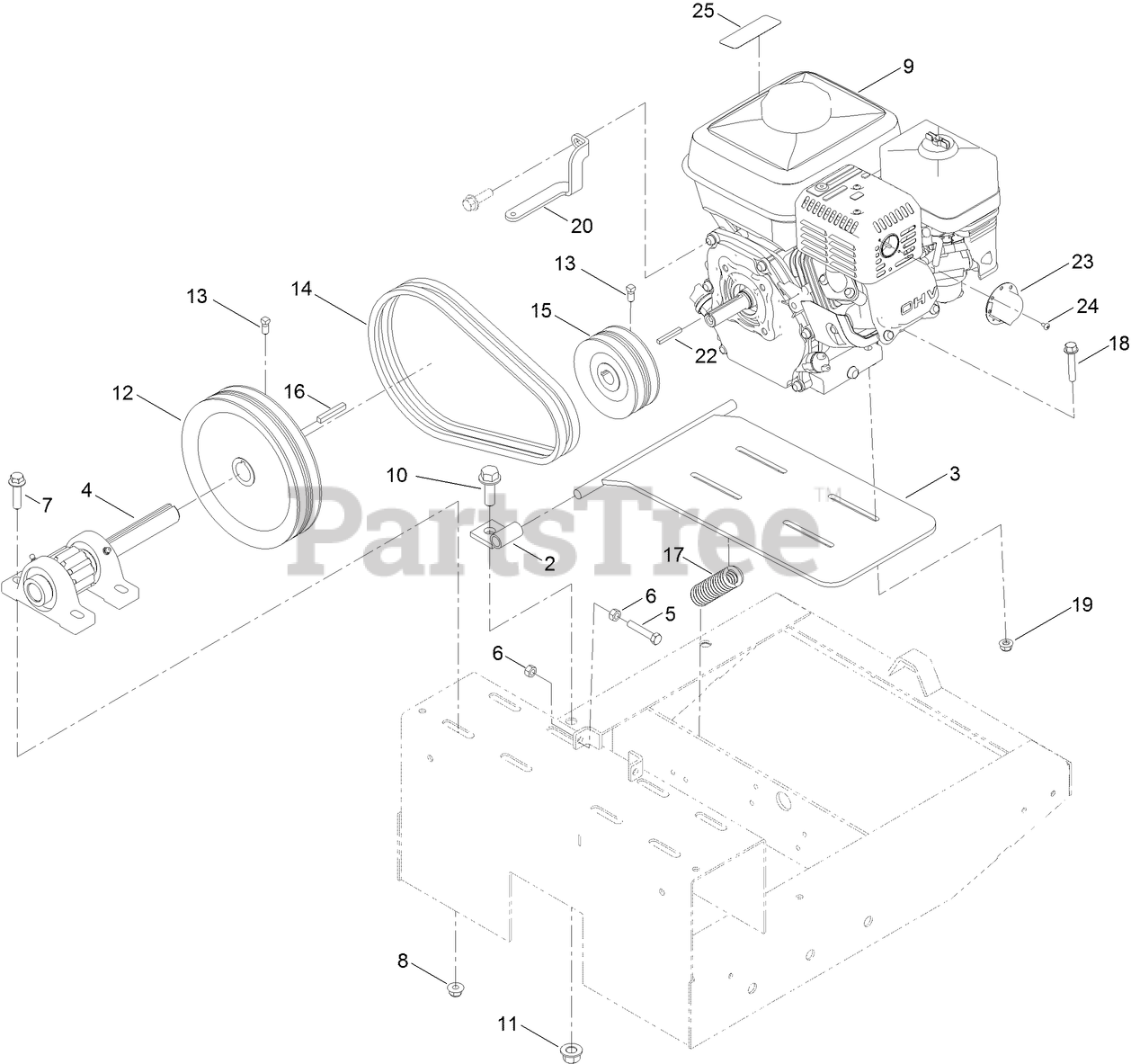

60220 C (MMX-858H-S) - Toro Mortar Mixer (SN: 404320000 - 999999999) Drive Assembly Parts Diagram

Mortar Mixer

Drive Assembly Parts Diagram

  • Title

2

Toro ST57786-03

MOUNT-MOTOR

$31.99

$

Usually ships in 3-6 days

0

3

Toro ST39557-03

BASE-MOTOR

$96.99

$

Usually ships in 3-6 days

0

4

Toro 131-5704

PINION ASM

$490.99

$

In Stock, only 3 left!

0

5

Toro 322-41

SCREW-HH
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

6

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

7

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

ENGINE-HONDA, GX240

Note: Not serviced separately

$

$

Not available

9

ENGINE-HONDA, GX240

Note: Obtain parts from www.honda-engines.com

$

$

Not available

10

Toro 100-6116

SCREW-HHF

$9.49

$

In Stock, only 1 left!

0

11

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

12

Toro ST38450

SHEAVE

$101.99

$

In Stock, only 2 left!

0

13

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

14

Toro 138-7144

BELT-V (MATCHED PAIR)

$56.99

$

In Stock, only 1 left!

0

15

Toro ST38449

SHEAVE

$74.99

$

Usually ships in 3-6 days

0

16

Toro 7-0238

KEY-SQUARE

$6.99

$

In Stock, only 2 left!

0

17

Toro ST34849

SPRING

$14.99

$

In Stock, only 1 left!

0

18

Toro 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

19

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 127-1665-03

GUIDE-BELT

$21.99

$

Usually ships in 3-6 days

0

22

Toro 7-0238

KEY-SQUARE

$6.99

$

In Stock, only 2 left!

0

23

Toro 120-1886

DEFLECTOR-EXHAUST, HONDA

$67.99

$

Usually ships in 3-6 days

0

24

Toro 127-7578

SCREW-HWH

$3.99

$

Usually ships in 3-6 days

0

25

Toro 130-8322

DECAL-WARNING, ETHANOL

$2.49

$

Usually ships in 3-6 days

0
