6022 SH (954222695-A) - Husqvarna Walk-Behind Mower (2001-01) Rotary Lawn Mower Parts Diagram

Walk-Behind Mower

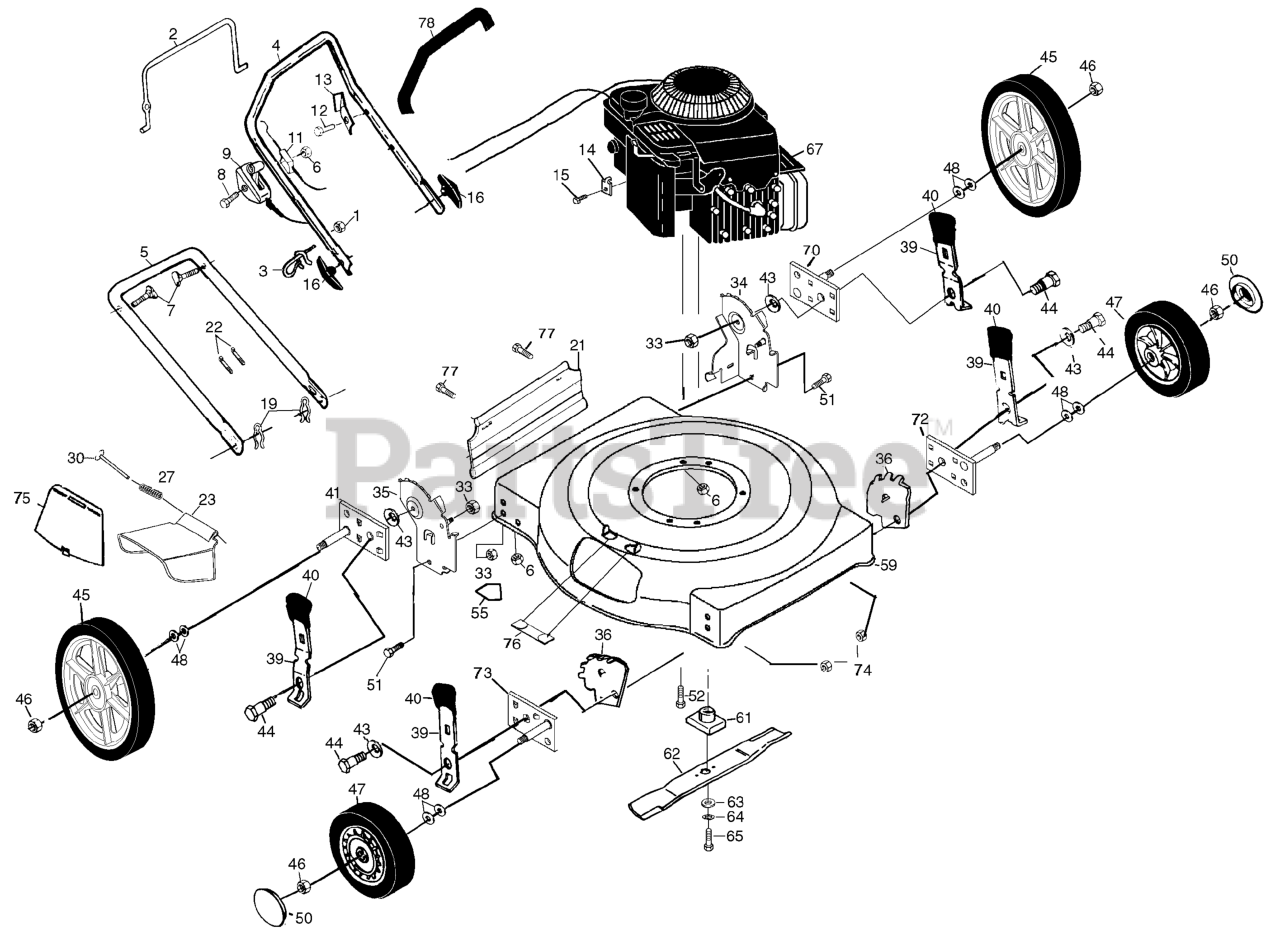

Rotary Lawn Mower Parts Diagram

  • Title

1

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

2

Husqvarna 532176563

Control Bar

$

$

Not available

3

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

4

Husqvarna 532173693

Upper Handle

$38.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532174291

Lower Handle

$

$

Not available

6

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

7

Husqvarna 532131959

Handle Bolt 5/16-18
(Superseded to 532183724)

$

$

Not available

8

Husqvarna 532144929

Hex Washer Head Screw 1/4-20 x 2-1/8
(Superseded to 532158755)

$

$

Not available

9

Husqvarna 532164137

Throttle Control
(Superseded to 532182154)

$

$

Not available

11

Husqvarna 532133107

Engine Zone Control Cable

$20.99

$

In Stock, only 1 left!

0

12

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

13

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532083816

Screw #10 x 5/8

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532136376

Handle Knob
(Superseded to 532183724)

$

$

Not available

19

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532165858

Rear Deflector
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532176561

Discharge Guard

$18.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532160832

Torsion Spring
(Superseded to 532408585)

$18.99

$

In Stock, only 2 left!

0

30

Husqvarna 532160833

Hinge Rod

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532063124

Locknut 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532174413

Wheel Bracket Support (Left)
(Superseded to 532170373)

$

$

Not available

35

Husqvarna 532174414

Wheel Bracket Support (Right)
(Superseded to 532170374)

$

$

Not available

36

Husqvarna 532165704

Wheel Bracket Adjuster
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

39

Husqvarna 532168599

Selector Spring
(Superseded to 532168360)

$

$

Not available

40

Husqvarna 532087877

Selector Knob

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 532168602

Axle Arm Assembly (RR)
(Superseded to 532167131)

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 819112222

Washer
(Superseded to 819112206)

$5.99

$

In Stock, Qty 5

0

44

Husqvarna 532160828

Shoulder Bolt

$

$

Not available

45

Husqvarna 532752063

Wheel Assembly (Rear)

$84.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532083923

Locknut 1/16-18
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532750550

Wheel Assembly (Front)

$34.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532057143

Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

50

Husqvarna 532077400

Hubcap

$7.49

$

In Stock, only 2 left!

0

51

Husqvarna 874760514

Hex Head Bolt 5/16-18x
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

52

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1

$7.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532176565

Lawn Mower Housing

Note: (Incl. Key Nos. 55)

$

$

Not available

61

Husqvarna 532851514

Blade Adapter

$17.99

$

In Stock, Qty 20+

0

62

Husqvarna 532141114

22" Blade

$28.99

$

In Stock, only 1 left!

0

63

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

64

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

65

Husqvarna 532851084

Screw Hex Head 3/8-24 x 1-3/8 (Grd. 8)
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

67

Engine - Briggs & Stratton Model No. 12H802

Note: Order parts from engine manufacturer

$

$

Not available

70

Husqvarna 532168601

Axle Arm Assem. (LR)
(Superseded to 532167130)

$7.49

$

Usually ships in 3-10 days

0

72

Husqvarna 532168605

Axle Arm Assm. (LF)
(Superseded to 532186577)

$

$

Not available

73

Husqvarna 532168604

Axle Arm Assm. (RF)
(Superseded to 532186578)

$

$

Not available

74

Husqvarna 532751153

Nut

$4.99

$

In Stock, only 1 left!

0

75

Husqvarna 532176562

Plate. Mulcher

$3.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532176560

Clip. Closeout
(Superseded to 532161622)

$14.99

$

In Stock, only 2 left!

0

77

Husqvarna 874760412

Screw

$7.49

$

In Stock, only 1 left!

0

78

Husqvarna 532146265

Foam Grip
(Superseded to 585161003)

$

$

Not available

Husqvarna 532177945

Owner's Manual (English/French)

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

Note: (Not Shown)

$1.49

$

Usually ships in 3-10 days

0
