6022 CH (954222701) - Husqvarna Walk-Behind Mower (2001-10) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

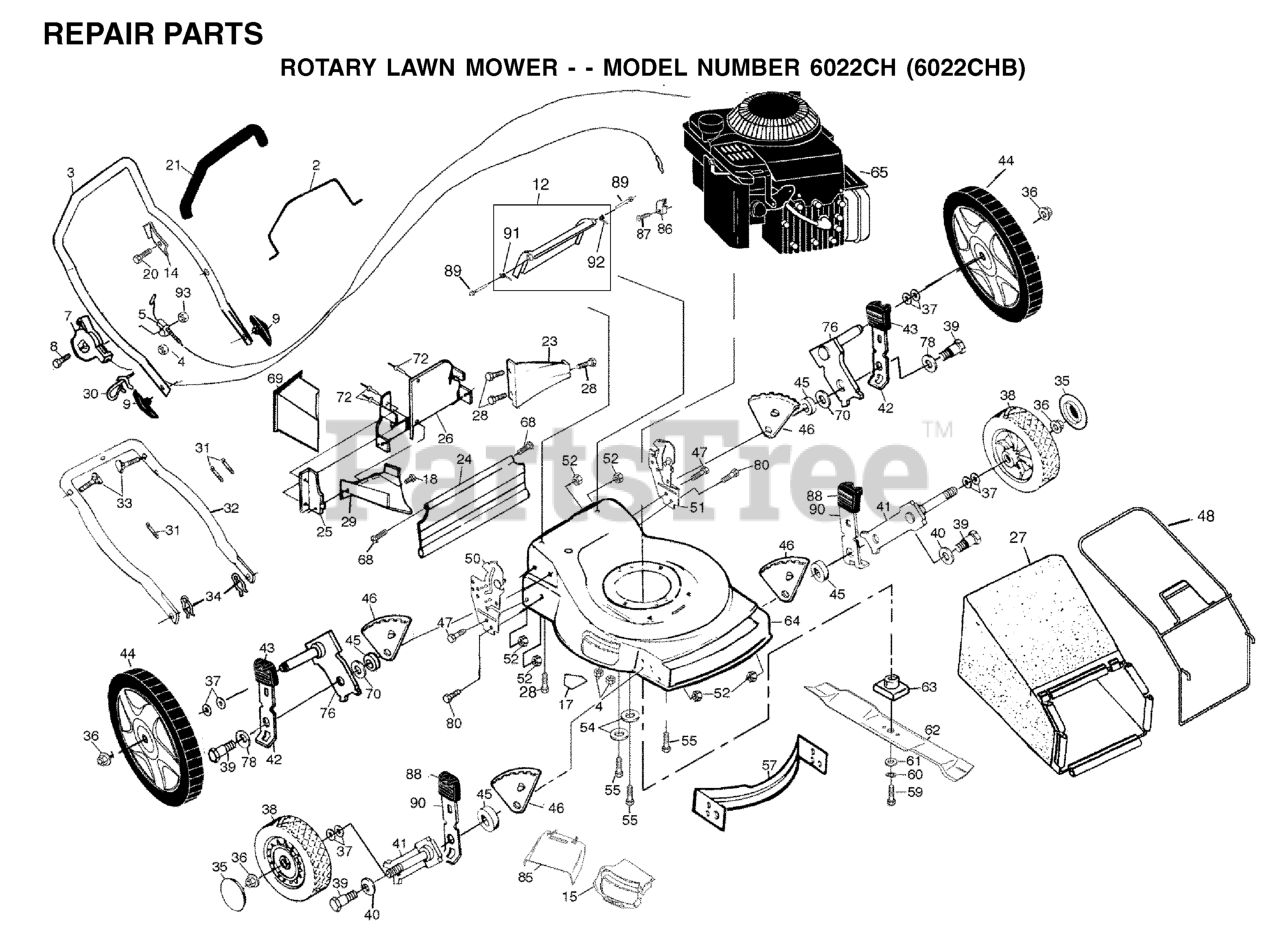

PRODUCT COMPLETE Parts Diagram

  • Title
52

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532166800

BACK PLATE

$

$

Not available

34

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532170939

DOOR SPRING RH

$7.49

$

Usually ships in 3-10 days

0

89

Husqvarna 532165912

DOOR BOLT
(Superseded to 532184193)

$

$

Not available

9

Husqvarna 532136376

HANDLE KNOB
(Superseded to 532183724)

$

$

Not available

7

Husqvarna 532700637

THROTTLE CONTROL

$

$

Not available

$6.49

$

In Stock, only 1 left!

0

31

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

60

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532146630

RP SPACER HT ADJ
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

87

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

93

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

54

Husqvarna 532125078

WASHER.ENGINE.BZP

$5.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

33

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

- -

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

$1.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532851514

BLADE ADAPTOR

$17.99

$

In Stock, Qty 20+

0

25

Husqvarna 532138860

SIDE BAFFLE

$

$

Not available

18

Husqvarna 532150050

SCREW.HXTAP.10-24

$4.99

$

In Stock, only 1 left!

0

55

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532180857

DISCHARGE BAFFLE
(Superseded to 532176041)

$

$

Not available

68

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 2 left!

0

61

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

32

Husqvarna 532153605

LOWER HANDLE
(Superseded to 532175245)

$

$

Not available

$4.99

$

In Stock, only 1 left!

0

69

Husqvarna 532166649

PLUG.MULCH.22RD

$

$

Not available

40

Husqvarna 532062335

WASHER.BELLEVILLE (3 2 LB)

$9.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

92

Husqvarna 532170938

DOOR SPRING LH

$

$

Not available

35

Husqvarna 532077400

CAP.HUB.BLACK.WALK

$7.49

$

In Stock, only 2 left!

0

59

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

$

$

Not available

5

Husqvarna 532130861

CABLE.MZR.51.RT.SP./PU.

$

$

Not available

12

Husqvarna 532170947

REAR DOOR KIT
(Superseded to 532193679)

$26.99

$

In Stock, only 1 left!

0

21

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

38

Husqvarna 532750550

WHEEL.8X2.PR.LP.RAD.GREY

$34.99

$

Usually ships in 3-10 days

0

62

$28.99

$

In Stock, only 1 left!

0

20

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

3

Husqvarna 532167163

HANDLE, UPPER DLX COMF. (GRIP)

$46.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532063601

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

90

Husqvarna 532141730

SELECTOR SPRING
(Superseded to 532700331)

$5.99

$

In Stock, only 2 left!

0

36

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

72

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176573

CONTROL BAR
(Superseded to 532411083)

$15.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532155047

WHEEL ADJ BRKT
(Superseded to 532700325)

$4.99

$

In Stock, only 1 left!

0

48

Husqvarna 532169931

CATCHER FRAME

$54.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532057143

WAVE WASHER
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

39

Husqvarna 532142748

BOLT
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

41

Husqvarna 532149857

AXLE, REAR
(Superseded to 532145935)

$

$

Not available

44

Husqvarna 532752063

WHEEL.14X2.PR.SP.RAD.GY

$84.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

24

Husqvarna 532140540

REAR SKIRT
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532125348

REAR BAFFLE
(Superseded to 532133040)

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0
