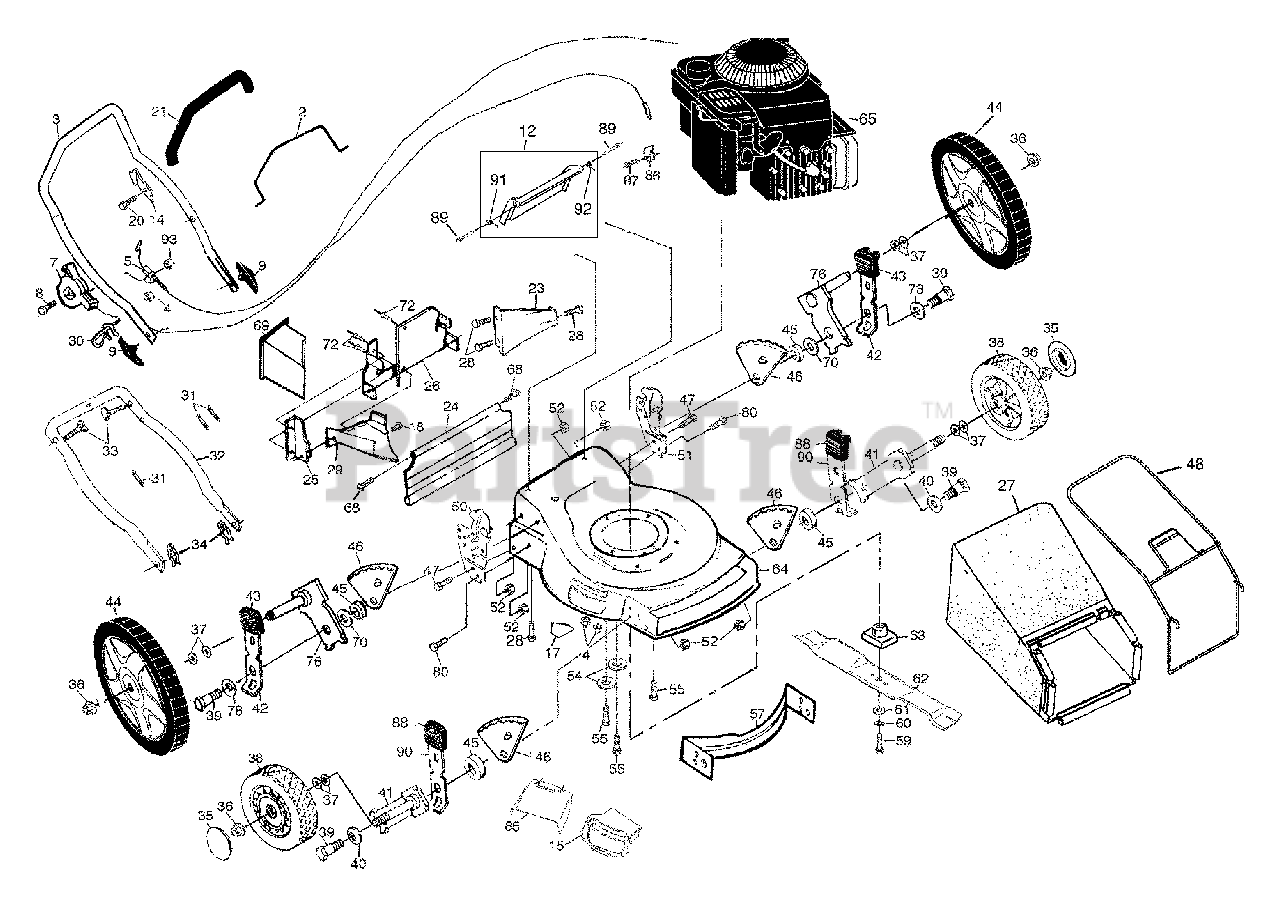

6022 CH (954222701-B) - Husqvarna Walk-Behind Mower (2001-10) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title
2

Husqvarna 532176573

Control Bar
(Superseded to 532411083)

$15.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532167163

Upper Handle

$46.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532063601

Locknut
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 532130861

Engine Zone Control Cable

$

$

Not available

7

Husqvarna 532700637

Throttle Control

$

$

Not available

8

Husqvarna 532144929

Hex Washer Head Screw 1/4-20 x 2-1/8
(Superseded to 532158755)

$

$

Not available

9

Husqvarna 532136376

Handle Knob
(Superseded to 532183724)

$

$

Not available

12

Husqvarna 532170947

Rear Door Kit
(Superseded to 532193679)

Note: (Includes Springs)

$26.99

$

In Stock, only 1 left!

0

14

Husqvarna 532125162

Upstop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532150756

Combi-Cut Mulcher
(Superseded to 532147738)

$30.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 532750097

Hex Washer Head Screw #10-24
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

21

Husqvarna 532164265

Handle Grip
(Superseded to 585161003)

$

$

Not available

23

Husqvarna 532125348

Rear Baffle
(Superseded to 532133040)

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532140540

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532138860

Side Baffle

$

$

Not available

26

Husqvarna 532166800

Back Plate

$

$

Not available

27

Husqvarna 532176575

Grass Bag
(Superseded to 532410685)

$66.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532054583

Screw Hex Head 1/4-20 x 1/2

$

$

Not available

29

Husqvarna 532180857

Discharge Baffle
(Superseded to 532176041)

$

$

Not available

30

Husqvarna 532179585

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

31

Husqvarna 532066426

Wire Ties
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532153605

Lower Handle
(Superseded to 532175245)

$

$

Not available

33

Husqvarna 532131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

34

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 2 left!

0

36

Husqvarna 532083923

Flanged Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532057143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

38

Husqvarna 532750550

Wheel & Tire Assembly (Front)

$34.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532142748

Shoulder Bolt
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

40

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532149857

Axle Arm
(Superseded to 532145935)

$

$

Not available

42

Husqvarna 532177132

Selector Spring
(Superseded to 532198456)

$

$

Not available

43

Husqvarna 532175477

Selector Knob

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532752063

Wheel & Tire Assembly (Rear)

$84.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

46

Husqvarna 532155047

Wheel Adjusting Bracket R.R.
(Superseded to 532700325)

$4.99

$

In Stock, only 1 left!

0

47

Husqvarna 532150078

Self-tapping Screw 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 532169931

Catcher Frame

$54.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532177130

Handle Bracket (Right)
(Superseded to 532195914)

$14.99

$

In Stock, only 1 left!

0

51

Husqvarna 532177131

Handle Bracket (Left)
(Superseded to 532195915)

$

$

Not available

52

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

$5.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532170557

Front Baffle

$34.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532851084

Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

60

Husqvarna 532850263

Helical Lock Washer
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

61

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 2 left!

0

62

$28.99

$

In Stock, only 1 left!

0

63

Husqvarna 532851514

Blade Adapter

$17.99

$

In Stock, Qty 20+

0

64

Husqvarna 532176576

Lawn Mower Housing Kit

$

$

Not available

65

Engine - Briggs and Stratton Model No. 12H802

Note: (Order parts from engine manufacturer)

$

$

Not available

68

Husqvarna 532088652

Hinge Screw

$7.49

$

In Stock, only 2 left!

0

69

Husqvarna 532166649

Mulcher Plug

$

$

Not available

70

Husqvarna 532088348

Flat Washer

$7.49

$

In Stock, Qty 6

0

72

$4.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532162233

Axle Arm Assembly
(Superseded to 532750913)

$

$

Not available

78

Husqvarna 532061651

Spacer
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

$4.99

$

In Stock, only 3 left!

0

85

Husqvarna 532150653

Clip on Guard
(Superseded to 532145285)

$

$

Not available

86

Husqvarna 532111190

Cable Clamp

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

88

Husqvarna 532087877

Selector Knob

$6.49

$

In Stock, only 1 left!

0

89

Husqvarna 532165912

Door Bolt
(Superseded to 532184193)

$

$

Not available

90

Husqvarna 532141730

Selector Spring
(Superseded to 532700331)

$5.99

$

In Stock, only 2 left!

0

91

Husqvarna 532170939

Door Spring RH

$7.49

$

Usually ships in 3-10 days

0

92

Husqvarna 532170938

Door Spring LH

$

$

Not available

93

Husqvarna 532132004

Nut, Hex
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532180309

Owner's Manual (English/French)

$

$

Currently unavailable
