60218 C (MMX-850E-S) - Toro Mortar Mixer (SN: 315000001 - 315999999) (2015) DRIVE ASSEMBLY Parts Diagram

Mortar Mixer

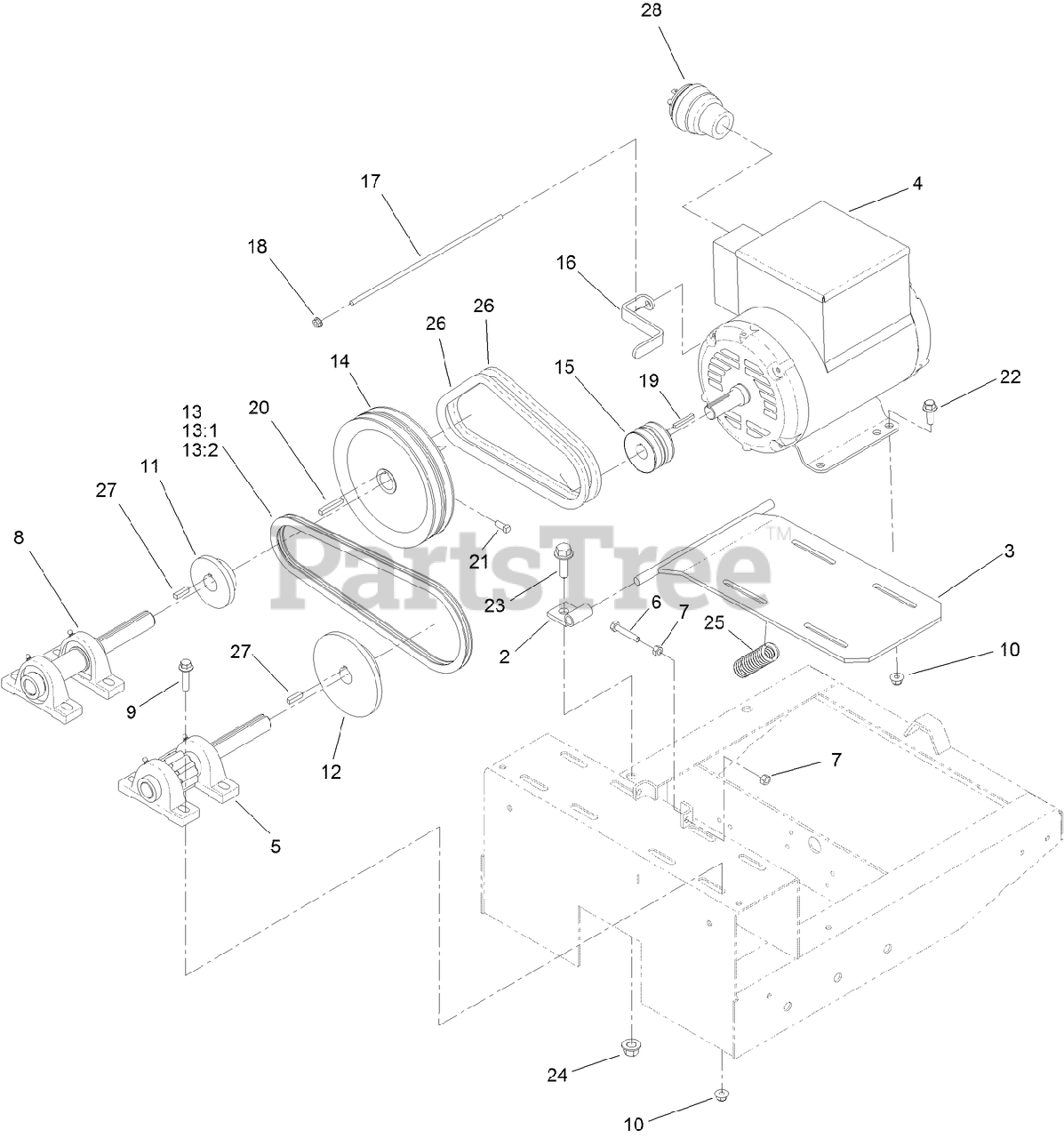

DRIVE ASSEMBLY Parts Diagram

  • Title
2

Toro ST57786-03

MOUNT-MOTOR

$31.99

$

Usually ships in 3-6 days

0

3

Toro ST39567-03

BASE-MOTOR

$128.99

$

Usually ships in 3-6 days

0

4

Toro 125-6254

MOTOR-ELECTRIC

$2394.99

$

Usually ships in 3-6 days

0

5

Toro 131-5707

PINION ASM

$492.99

$

Usually ships in 3-6 days

0

6

Toro 322-41

SCREW-HH
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

7

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

8

Toro ST21300

IDLER ASM

$466.99

$

Usually ships in 3-6 days

0

9

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro ST34126

SPROCKET

$109.99

$

Usually ships in 3-6 days

0

12

Toro ST34127

SPROCKET

$178.99

$

Usually ships in 3-6 days

0

13

Toro 132-7159

CHAIN SET, 53 PITCH

$36.99

$

Usually ships in 3-6 days

0

13:1

Toro ST34103

LINK-OFFSET, NO. 50

$13.99

$

Usually ships in 3-6 days

0

13:2

Toro ST34104

LINK-CONNECTING, NO. 50

$7.99

$

Usually ships in 3-6 days

0

14

Toro ST38450

SHEAVE

$101.99

$

In Stock, only 2 left!

0

15

Toro ST38666

SHEAVE

$142.99

$

Usually ships in 3-6 days

0

16

Toro ST42446-03

GUIDE-BELT

$29.99

$

Usually ships in 3-6 days

0

17

Toro 127-2887

ROD-THREADED

$73.99

$

Usually ships in 3-6 days

0

18

Toro 32128-14

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

19

Toro ST37716

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

20

Toro 7-0238

KEY-SQUARE

$6.99

$

In Stock, only 2 left!

0

21

Toro 120-6474

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

22

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

23

Toro 100-6116

SCREW-HHF

$9.49

$

In Stock, only 1 left!

0

24

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

25

Toro ST34849

SPRING

$14.99

$

In Stock, only 1 left!

0

26

Toro ST34617

BELT-V

$12.99

$

Usually ships in 3-6 days

0

27

$5.99

$

In Stock, only 1 left!

0

28

$434.99

$

Usually ships in 3-6 days

0
