60217 (MMX-658H-P) - Toro Mortar Mixer (SN: 404320000 - 999999999) Frame and Axle Assembly Parts Diagram

Mortar Mixer

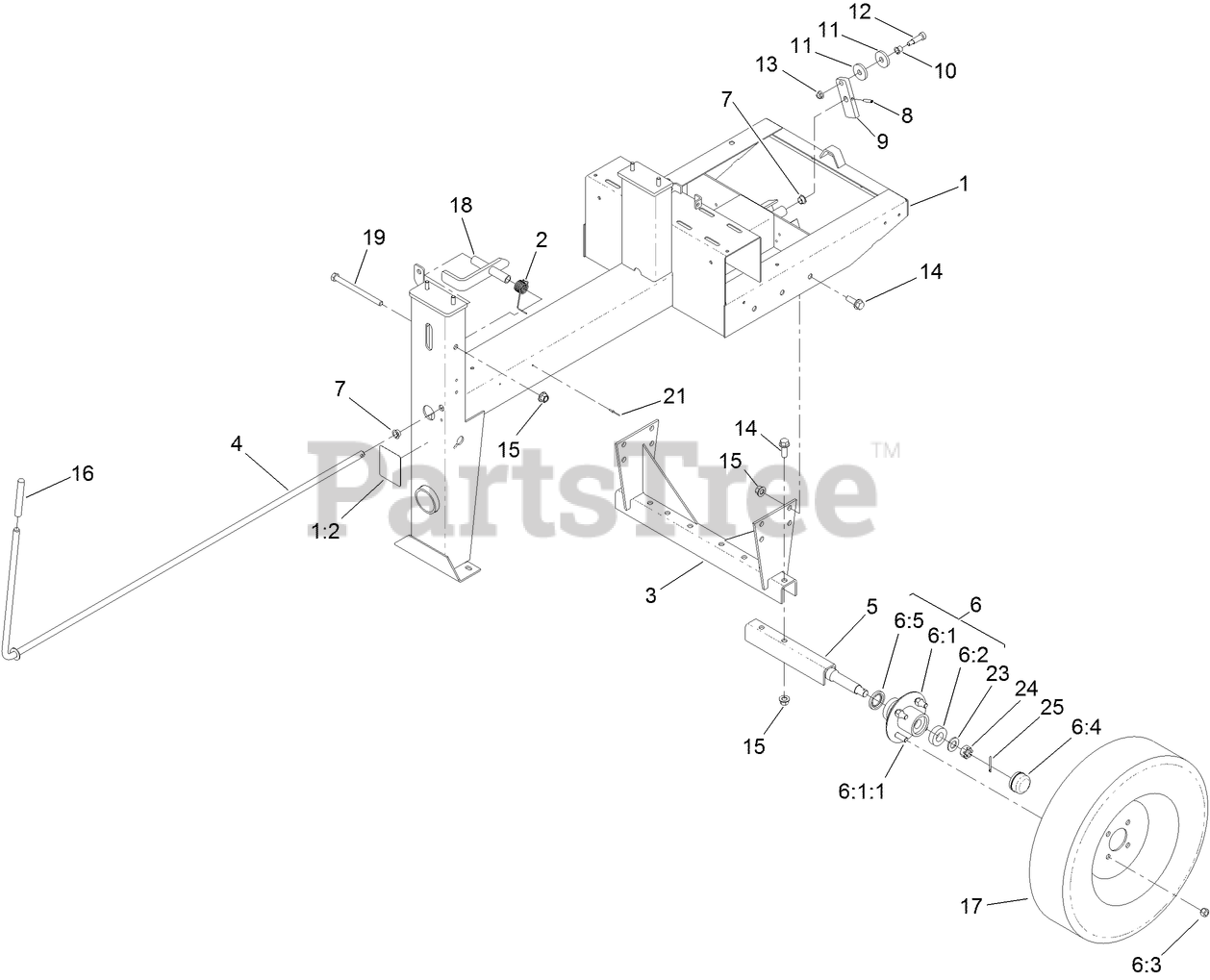

Frame and Axle Assembly Parts Diagram

  • Title

1

Toro 131-7532

FRAME ASM

$1195.99

$

Usually ships in 3-6 days

0

1:2

Toro 125-8216

DECAL-SAFETY CHAIN, TOWING

$1.99

$

Usually ships in 3-6 days

0

2

Toro 132-3852

SPRING-TORSION

$4.49

$

Usually ships in 3-6 days

0

3

Toro 125-8219-03

SUPPORT-AXLE

$182.99

$

Usually ships in 3-6 days

0

4

Toro 131-5251-03

LEVER-CLUTCH

$64.99

$

Usually ships in 3-6 days

0

5

Toro ST22512-03

AXLE-HALF

$175.99

$

Usually ships in 3-6 days

0

6

Toro 139-1328

HUB ASM

$197.99

$

Usually ships in 3-6 days

0

6:1

Toro 139-1327

HUB-4IN

$86.99

$

Usually ships in 3-6 days

0

6:1:1

Toro ST39190

STUD-WHEEL

$10.99

$

Usually ships in 3-6 days

0

6:2

Toro ST32233

BEARING-ROLLER

$77.99

$

In Stock, only 3 left!

0

6:3

Toro ST80045

NUT-LUG

$3.49

$

In Stock, Qty 5

0

6:4

Toro ST34573

CAP-DUST

$14.99

$

In Stock, only 2 left!

0

6:5

Toro ST32052

SEAL-HUB, WHEEL

$10.99

$

In Stock, only 2 left!

0

7

Toro ST32116

BUSHING-FLANGE

$5.49

$

In Stock, only 1 left!

0

8

Toro 32121-69

PIN-SPRING

$1.99

$

In Stock, Qty 5

0

9

Toro ST39446

LINK-CLUTCH

$59.99

$

In Stock, only 1 left!

0

10

Toro ST32099

BUSHING-FLANGE

$2.49

$

In Stock, only 1 left!

0

11

Toro ST26326

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

12

Toro ST81153

SCREW-HSBH

$5.99

$

In Stock, only 2 left!

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 100-6116

SCREW-HHF

$9.49

$

In Stock, only 1 left!

0

15

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

16

Toro ST34687

GRIP-HANDLE

$19.99

$

Usually ships in 3-6 days

0

17

Toro ST32306

TIRE AND RIM ASM

$147.99

$

In Stock, only 1 left!

0

18

Toro 132-7154-03

LATCH-DRUM

$47.99

$

Usually ships in 3-6 days

0

19

Toro 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

21

Toro 923786

RIVET

$0.99

$

Usually ships in 3-6 days

0

23

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

24

Toro ST80054

NUT

$2.99

$

Usually ships in 3-6 days

0

25

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 7

0
