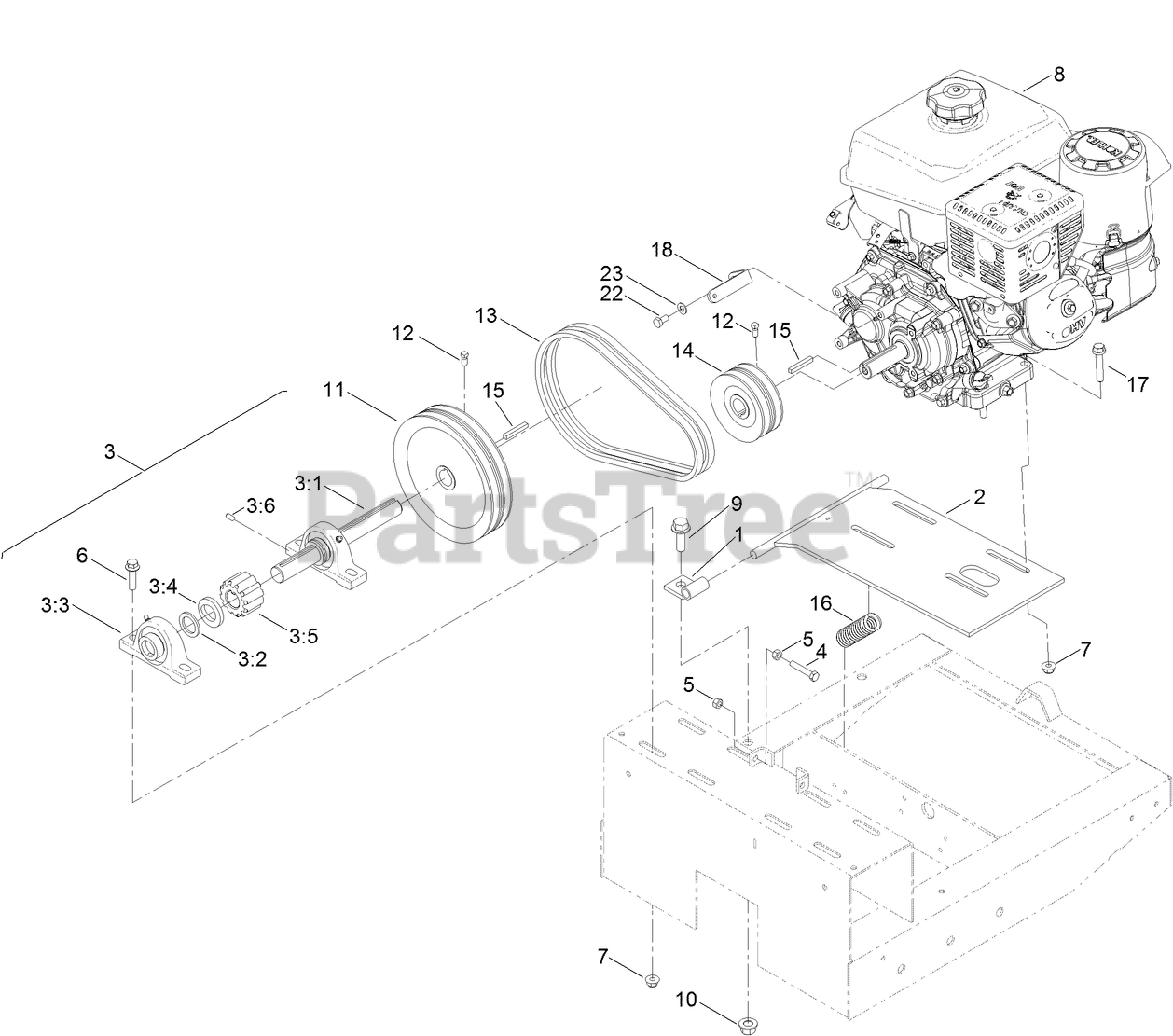

60217 (MMX-658H-P) - Toro Mortar Mixer (SN: 404320000 - 999999999) Engine Assembly Parts Diagram

Mortar Mixer

Engine Assembly Parts Diagram

  • Title

1

Toro ST57786-03

MOUNT-MOTOR

$31.99

$

Usually ships in 3-6 days

0

2

Toro ST39557-03

BASE-MOTOR

$96.99

$

Usually ships in 3-6 days

0

3

Toro 131-5704

PINION ASM

$490.99

$

In Stock, only 3 left!

0

3:1

Toro 131-5705

See Supercession: 131-5708
(Superseded to 131-5708)

$103.99

$

Usually ships in 3-6 days

0

3:2

Toro 3-8514

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

3:3

Toro ST32208

BEARING-BLOCK, PILLOW

$166.99

$

In Stock, only 2 left!

0

3:4

Toro 131-5706

WASHER

$5.99

$

Usually ships in 3-6 days

0

3:5

Toro ST57625

GEAR-SPUR

$26.99

$

In Stock, only 4 left!

0

3:6

Toro 95-0715

PIN-DOWEL

$1.49

$

Usually ships in 3-6 days

0

4

Toro 322-41

SCREW-HH
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

5

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

6

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 137-0697

ENGINE-KOHLER

$1679.99

$

Usually ships in 3-6 days

0

9

Toro 100-6116

SCREW-HHF

$9.49

$

In Stock, only 1 left!

0

10

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

11

Toro ST38450

SHEAVE

$101.99

$

In Stock, only 2 left!

0

12

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

13

Toro 138-7144

BELT-V (MATCHED PAIR)

$56.99

$

In Stock, only 1 left!

0

14

Toro ST38449

SHEAVE

$74.99

$

Usually ships in 3-6 days

0

15

Toro 7-0238

KEY-SQUARE

$6.99

$

In Stock, only 2 left!

0

16

Toro ST34849

SPRING

$14.99

$

In Stock, only 1 left!

0

17

Toro 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

18

Toro 137-7466

GUIDE-BELT

$15.99

$

Usually ships in 3-6 days

0

22

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
