60202-0153-XX - Briggs & Stratton Horizontal Engine Blower Hsgs,Rewind Starters Parts Diagram

Horizontal Engine

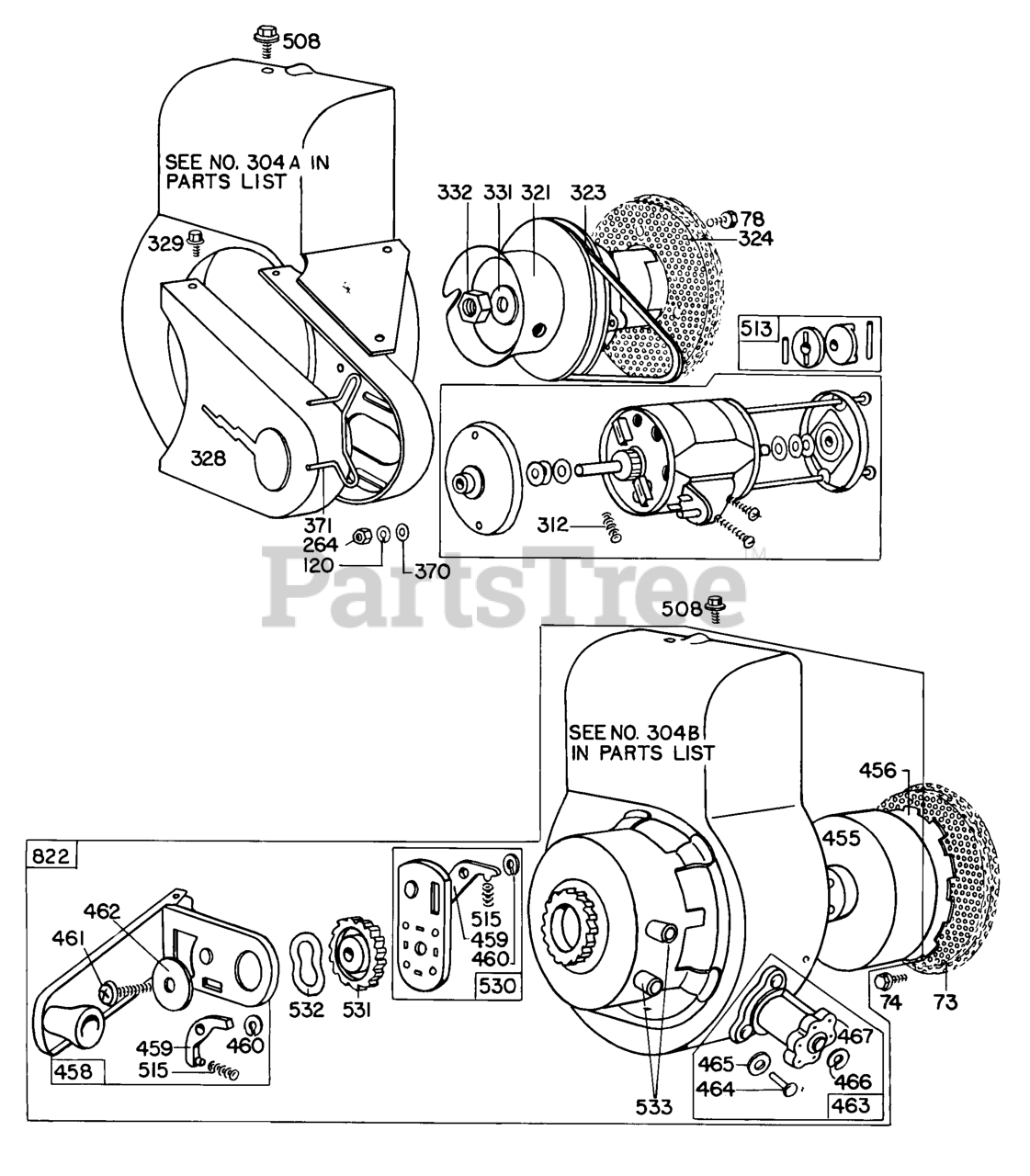

Blower Hsgs,Rewind Starters Parts Diagram

  • Title
73

Briggs & Stratton 220648

Screen-Starter Pulley
(Superseded to 691725)

Note: Used Before Code Date 6405250

$

$

Not available

73

Briggs & Stratton 221661

Screw-Rewind Starter
(Superseded to 691725)

Note: Used After Code Date 6405220

$

$

Not available

74

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

78

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

120

Briggs & Stratton 92290

Lockwasher, Zinc Pl
(Superseded to 690286)

$3.99

$

Usually ships in 2-12 days

0

264

Briggs & Stratton 90355

Nut, Hex Mach (10-32)
(Superseded to 690275)

$3.49

$

Usually ships in 2-12 days

0

312

$5.99

$

Usually ships in 2-12 days

0

321

Briggs & Stratton 210711

Pulley-Starter (Fits Crankshafts With 1/2-20 Thread)

$13.99

$

Usually ships in 2-12 days

0

$34.99

$

Usually ships in 2-12 days

0

324

Briggs & Stratton 220648

Screen-Starter Pulley
(Superseded to 691725)

$

$

Not available

328

$

$

Not available

329

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

331

Briggs & Stratton 62577

Washer-Belleville (1/2" Hole)

Note: For Washer with 5/8" hole-order No. 220865

$3.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 91708

Nut-Flywheel (1/2-20 L.h. Thread)

Note: For Flywheel Nut with 5/8-18 right hand thread-order No. 92284

$

$

Not available

370

Briggs & Stratton 66432

Washer, Steel Zinc
(Superseded to 691607)

$5.49

$

Usually ships in 2-12 days

0

371

Briggs & Stratton 260275

Restrictor-Belt

$

$

Not available

455

Briggs & Stratton 296455

Cup/Spring (With Pinned Spring)

$42.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 221222

Plate-Retainer

$

$

Not available

458

Briggs & Stratton 296305

Handle Assy.-Cranking

$

$

Not available

459

$

$

Not available

460

Briggs & Stratton 93272

Retainer-Ratchet Pawl

$3.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 93231

Screw-Handle Mtg.

$

$

Not available

462

Briggs & Stratton 221237

Washer-Handle Mtg.

$0.99

$

Usually ships in 2-12 days

0

463

Briggs & Stratton 296445

Holder Assy.-Flywheel

$

$

Not available

464

Briggs & Stratton 93291

Rivet/Lock (2)

$

$

Not available

$3.49

$

Usually ships in 2-12 days

0

466

Briggs & Stratton 93272

Retainer-Ratchet Pawl

$3.99

$

Usually ships in 2-12 days

0

467

$2.99

$

Usually ships in 2-12 days

0

508

Briggs & Stratton 93294

Screw, Sem (5/8" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

513

Briggs & Stratton 296567

Clutch Assy.-Electric Starter

$9.49

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 260537

Spring-Single Acting Ratchet Pawl

$5.99

$

Usually ships in 2-12 days

0

530

Briggs & Stratton 296304

Housing Assy.-Pawl

$

$

Not available

531

Briggs & Stratton 230615

Ratchet-Top Starter

$

$

Not available

532

Briggs & Stratton 260500

Washer-Spring

$

$

Not available

533

$

$

Not available

822

Briggs & Stratton 296732

Starter Assy.-Wind

$

$

Not available
