602 - BCS America Two-Wheeled Tractor Handlebar (SN: 105900 & Above) Parts Diagram

Two-Wheeled Tractor

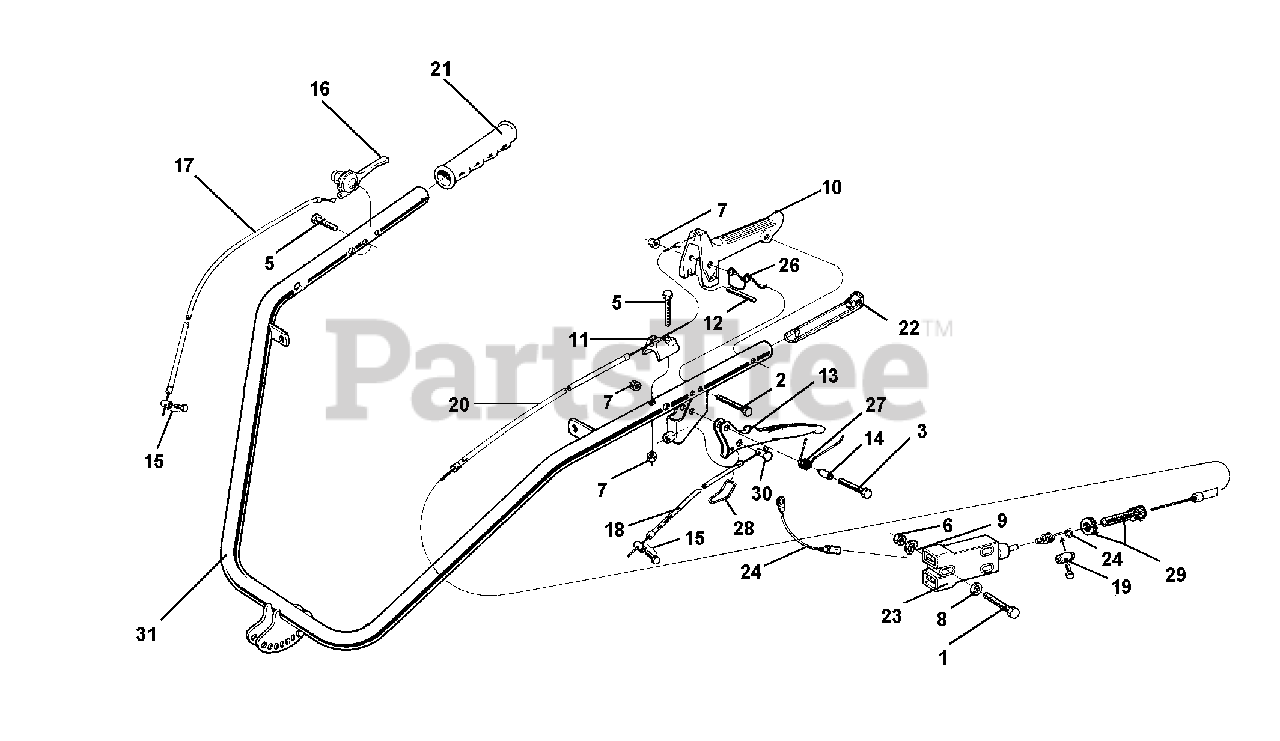

Handlebar (SN: 105900 & Above) Parts Diagram

  • Title

1

BCS America 311.11086

SCREW TE M4 X 25

$1.49

$

In Stock, Qty 8

0

2

BCS America 311.11097

SCREW TE M6 X 45

$1.49

$

In Stock, only 2 left!

0

3

BCS America 311.12089

SCREW M6 X 25

$1.49

$

In Stock, only 3 left!

0

4

BCS America 311.12091

SCREW M6 X 40

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 311.12092

SCREW M6 X 35

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 31211040

NUT M4

$0.99

$

In Stock, only 2 left!

0

7

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 4 left!

0

8

BCS America 314.11043

FLAT WASHER 4.3

$0.99

$

In Stock, Qty 8

0

9

BCS America 314.23043

LOCK WASHER B 4.3

$0.99

$

In Stock, Qty 6

0

10

BCS America 552.48041

MOTOR STOP LEVER

$24.99

$

In Stock, only 3 left!

0

11

BCS America 552.48038

SHEATH STOP OF MOTOR STOP

$7.49

$

In Stock, only 1 left!

0

12

BCS America 561.48037

LEVER STOP FOR MOTOR STOP

$3.49

$

Usually ships in 5-8 days

0

13

BCS America 56148040

CLUTCH LEVER

$32.99

$

Usually ships in 5-8 days

0

14

BCS America 561.50361

LEVER SPACER

$4.99

$

In Stock, only 1 left!

0

15

BCS America 580.02429

CLAMP, CABLE

$5.99

$

In Stock, only 2 left!

0

16

BCS America 580.02538

LEVER, ACCELERATOR

$34.99

$

In Stock, only 1 left!

0

17

BCS America 580.26224

CABLE & SHEATH,ACCEL.LOMBAR

$17.99

$

Usually ships in 5-8 days

0

18

BCS America 580.43223

WIRE AND SHEATH L 903 DISENG.

$32.99

$

In Stock, only 3 left!

0

19

BCS America 580.48002

CABLE CLAMP

$3.99

$

In Stock, only 1 left!

0

20

BCS America 580.48005

SHEATH CABLE

$

$

Currently unavailable

21

BCS America 58048000

GRIP

$7.49

$

Usually ships in 5-8 days

0

22

BCS America 58048000

FIXED BODY

$7.49

$

Usually ships in 5-8 days

0

23

BCS America 580.48009

STOP SWITCH

$32.99

$

In Stock, only 1 left!

0

24

BCS America 58048010

SWITCH SPRING

$2.99

$

Usually ships in 5-8 days

0

25

BCS America 580.48011

SWITCH CAABLES

$4.49

$

Usually ships in 5-8 days

0

26

BCS America 580.48039

MOTOR STOP LEVER SPRING

$26.99

$

Usually ships in 5-8 days

0

27

BCS America 580.50345

LEVER SPRING

$3.49

$

In Stock, only 1 left!

0

28

BCS America 58051670

LEVER HOOK

$5.49

$

Usually ships in 5-8 days

0

29

BCS America 581.47704

ADJUSTING SCREW

$9.49

$

Usually ships in 5-8 days

0

30

BCS America 581.50313

BARREL

$11.99

$

Usually ships in 5-8 days

0

31

BCS America 590.43268

HANDLEBAR

$

$

Currently unavailable
