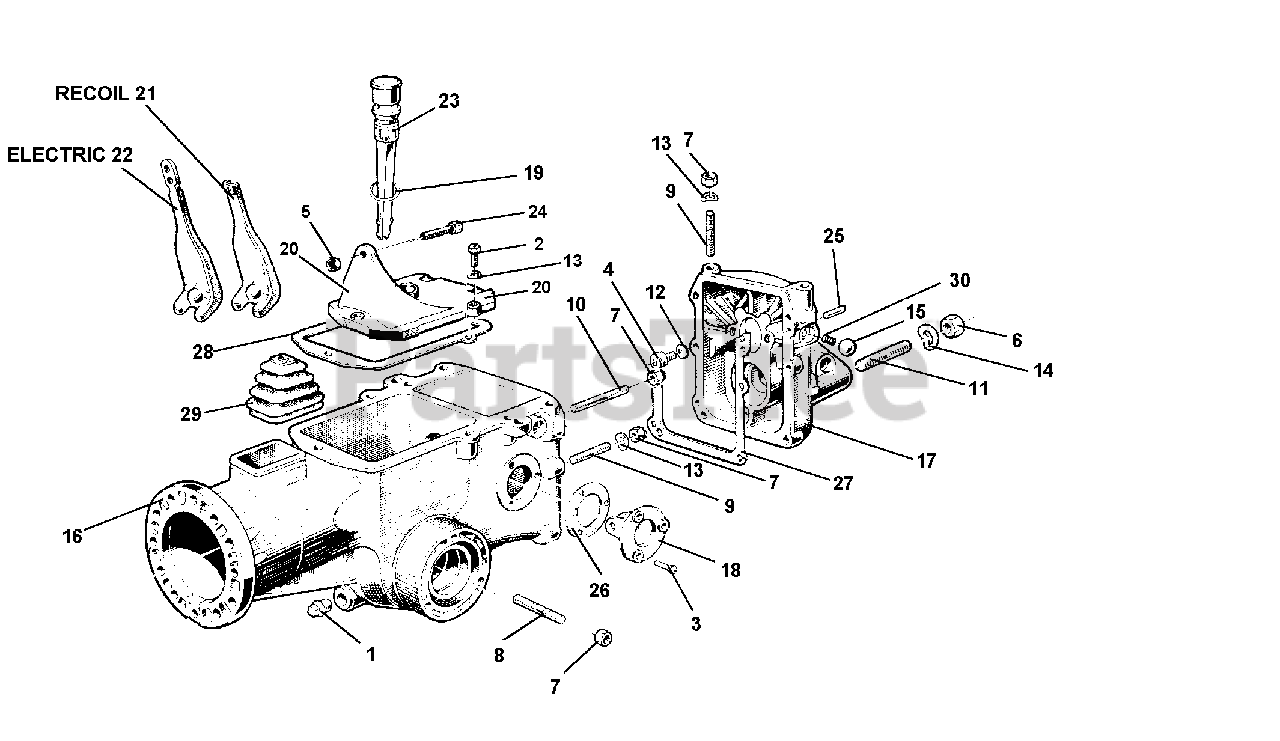

602 - BCS America Two-Wheeled Tractor Gearbox (SN: 105100 & Above) Parts Diagram

Two-Wheeled Tractor

Gearbox (SN: 105100 & Above) Parts Diagram

  • Title
1

BCS America 300.40001

PLUG 1/4 GAS

$5.49

$

In Stock, only 2 left!

0

2

BCS America 311.11153

SCREW TE M8 X 25

$

$

Currently unavailable

3

BCS America 311.32562

SCREW M6 X 16

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.52079

SCREW TCCEI M8 X 12

$1.49

$

Usually ships in 5-8 days

0

$0.99

$

In Stock, only 3 left!

0

6

BCS America 312.21121

NUT M12 X 1.25 UNI 5587 6S

$1.99

$

In Stock, only 2 left!

0

7

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

8

BCS America 31312080

STUD M8 X 46 X 20 X 12

$1.99

$

In Stock, only 1 left!

0

9

BCS America 313.12083

STUD M8 X 46 X 16 X 16

$2.99

$

In Stock, Qty 6

0

10

BCS America 313.12084

STUD M8 X 58 X 16 X 16

$2.49

$

Usually ships in 5-8 days

0

11

BCS America 313.12124

ST.56XM12X1.25X26XM12X22 8G

$3.99

$

In Stock, only 2 left!

0

12

BCS America 314.21083

SUPER WASHER 8 DIN 6796

$1.49

$

In Stock, Qty 7

0

13

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

14

BCS America 31423130

WASHER, LOCK 13

$1.49

$

In Stock, only 3 left!

0

15

BCS America 379.11532

BALL 15/32 RIV RB-11.906

$1.49

$

In Stock, only 2 left!

0

16

BCS America 53143050

HOUSING BODY

$550.99

$

Usually ships in 5-8 days

0

17

BCS America 531.43056

HOUSING COVER

$239.99

$

Usually ships in 5-8 days

0

18

BCS America 53143070

REVERSE SPEED FLANGE

$39.16

$

Usually ships in 5-8 days

0

19

BCS America 551.02678

RUBBER RING

$1.49

$

In Stock, Qty 5

0

$58.99

$

Usually ships in 5-8 days

0

21

BCS America 56243100

CLUTCH LEVER

$

$

Not available

22

BCS America 562.43113

CLUTCH LEVER

$40.99

$

Usually ships in 5-8 days

0

23

BCS America 580.02666

CAP, WITH MEASURING ROD

$28.99

$

In Stock, only 1 left!

0

24

BCS America 580.42202

SCREW, ADJUSTING M8

$6.99

$

In Stock, only 1 left!

0

25

BCS America 580.43053

PARALLEL PIN D 6 X 20

$1.49

$

Usually ships in 5-8 days

0

$1.99

$

In Stock, only 2 left!

0

27

BCS America 580.43094

GASKET, COVER

$2.99

$

In Stock, only 2 left!

0

28

BCS America 580.43117

GASKET, COVER

$2.99

$

In Stock, only 2 left!

0

$24.99

$

In Stock, only 2 left!

0

30

BCS America 580.48369

P.T.O. SPRING

$45.99

$

Usually ships in 5-8 days

0
