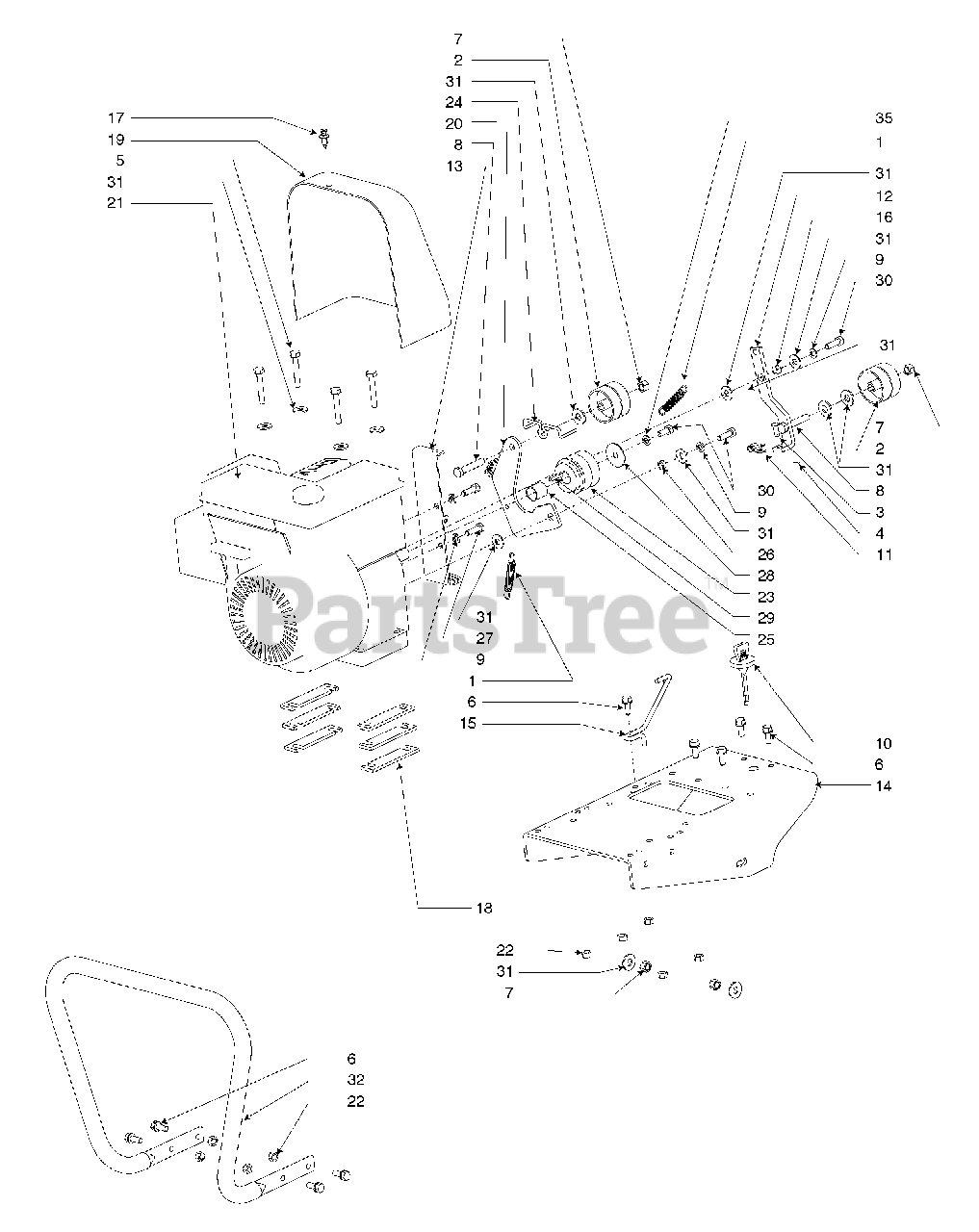

6016 RT (1695583) - Simplicity Tiller, 8hp Engine Mount Group Parts Diagram

Tiller, 8hp

Engine Mount Group Parts Diagram

  • Title

1

Simplicity 1716802

SPRING, Forward Arm
(Superseded to 1716802SM)

$

$

Not available

2

Simplicity 1716803

PULLEY, Idler, Forward
(Superseded to 1716803SM)

$45.99

$

Usually ships in 2-12 days

0

3

Simplicity 1716702

PIN, Clevis
(Superseded to 1716702SM)

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1716703

PIN, Cotter, 5/64 x 1/2
(Superseded to 1716703SM)

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1921978

BOLT, Hex-Head Capscrew, 5/16-18 x 2
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

6

Simplicity 1716780

BOLT, Hex-Flange Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

7

Simplicity 7091585

NUT, Hex, Locking, Two-Way, 3/8-16
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

8

Simplicity 7091305

BOLT, 3/8-16 x 2
(Superseded to 7091305SM)

$4.49

$

In Stock, only 1 left!

0

9

Simplicity 1916165

WASHER, Locking, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1723700

DIP STICK
(Superseded to 1723700SM)

$

$

Not available

11

Simplicity 1716728

YOKE, Clevis, Zinc-Plated
(Superseded to 1716728SM)

$

$

Not available

12

Simplicity 1738668

ARM, Forward
(Superseded to 1738668YP)

$24.99

$

Usually ships in 2-12 days

0

13

Simplicity 1738641

CABLE PULL ASSEMBLY
(Superseded to 1738641YP)

$49.99

$

Usually ships in 2-12 days

0

14

Simplicity 1738644

MOUNT, Motor

$

$

Not available

15

Simplicity 1738650

GUIDE, Belt
(Superseded to 1738650YP)

$42.99

$

Usually ships in 2-12 days

0

16

Simplicity 1738651

BUSHING, Forward Arm
(Superseded to 1738651YP)

$18.99

$

Usually ships in 2-12 days

0

17

Simplicity 1738772

RIVET, Push-In, Plastic
(Superseded to 1738772YP)

$9.49

$

Usually ships in 2-12 days

0

18

Simplicity 1738654

SHIM, Engine Weight Block
(Superseded to 1738654YP)

$20.99

$

Usually ships in 2-12 days

0

19

Simplicity 1738655

GUARD, Belt
(Superseded to 1738655YP)

$95.99

$

Usually ships in 2-12 days

0

20

Simplicity 1738665

REVERSE TINE ASSEMBLY
(Superseded to 1738665YP)

$83.99

$

Usually ships in 2-12 days

0

21

Simplicity 12S412-0118-F8

* ENGINE, 8TP Briggs & Stratton INTEK

Note: (Engine Model: 12S412-0118-F8)

$

$

Not available

22

Simplicity 1923362

NUT, Bi-Way Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

23

Simplicity 1722158

PULLEY, Two-Groove, 3/4
(Superseded to 1722158SM)

$185.99

$

Usually ships in 2-12 days

0

24

Simplicity 1722162

GUIDE, Belt, Reverse
(Superseded to 1722162SM)

$36.99

$

Usually ships in 2-12 days

0

25

Simplicity 1723711

SPACER, Drive Pulley, 9/16
(Superseded to 1723711SM)

$9.99

$

Usually ships in 2-12 days

0

26

Simplicity 1738666

BUSHING, Reverse Arm
(Superseded to 1738666YP)

$16.99

$

Usually ships in 2-12 days

0

27

Simplicity 1921515

BOLT, 5/16-24 x 3/4
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 1716770

WASHER, 5/16 x 1-1/2
(Superseded to 1716770SM)

$6.99

$

Usually ships in 2-12 days

0

29

Simplicity 2805850

KEY, 3/16 x 1
(Superseded to 2805850SM)

$

$

Not available

30

Simplicity 1921982

BOLT, 5/16-24 x 1
(Superseded to 703299)

$4.99

$

Usually ships in 2-12 days

0

31

Simplicity 1918265

WASHER, Flat, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

32

Simplicity 1738669

GUARD, Bumber
(Superseded to 1738669YP)

$296.99

$

Usually ships in 2-12 days

0

35

Simplicity 1738773

WASHER, Flat 11/16 ID X 1-1/4 OD
(Superseded to 1738773YP)

$7.99

$

Usually ships in 2-12 days

0
