6014 VRT (1695922) - Simplicity Intermediate Tiller, 8hp Handle & Controls Group Parts Diagram

Intermediate Tiller, 8hp

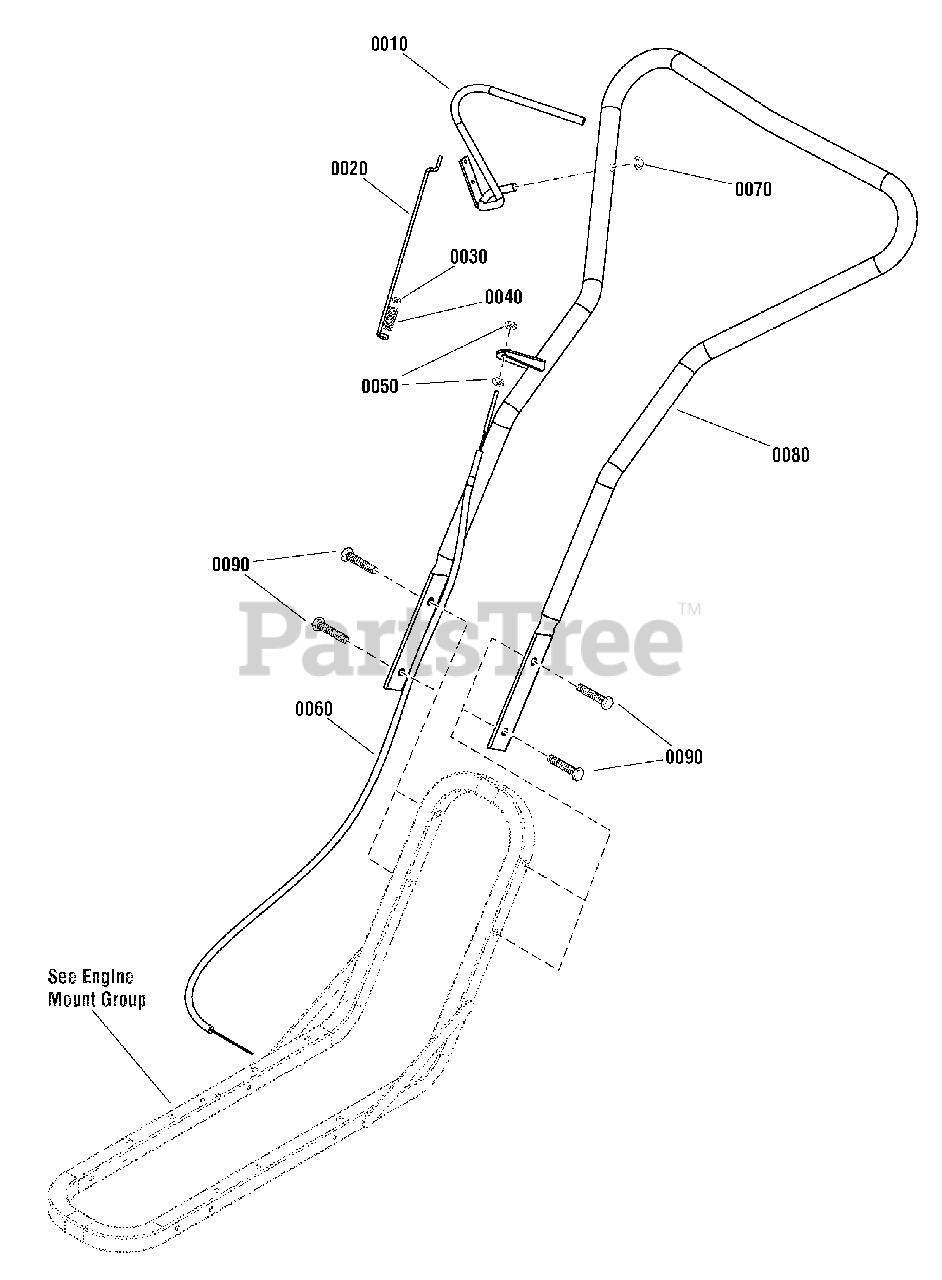

Handle & Controls Group Parts Diagram

  • Title
0010

Simplicity 1751856

DEADMAN, Front Tine Assembly

$

$

Not available

0020

Simplicity 1738631

LINK, 9-1/2" Long
(Superseded to 1738631YP)

$24.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1933896

NUT, Hex, Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0040

Simplicity 1738712

SPRING, Compression, Forward Arm
(Superseded to 1738712YP)

$

$

Not available

0050

Simplicity 2820438

NUT, Hex-Jam, 5/16-24
(Superseded to 2820438SM)

$3.49

$

In Stock, only 2 left!

0

0060

Simplicity 1719037

CABLE ASSEMBLY, Drive Control
(Superseded to 1719037SM)

$67.99

$

In Stock, only 1 left!

0

0070

Simplicity 1960093

NUT, Push, 3/8 Dia.
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

0080

Simplicity 1751857

HANDLE BAR ASSEMBLY, Loop, Rear Tine

$

$

Not available

0090

Simplicity 1931353

BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0
