60102-1219-01 - Briggs & Stratton Horizontal Engine Cylinder,Crankcase,Mufflers Parts Diagram

Horizontal Engine

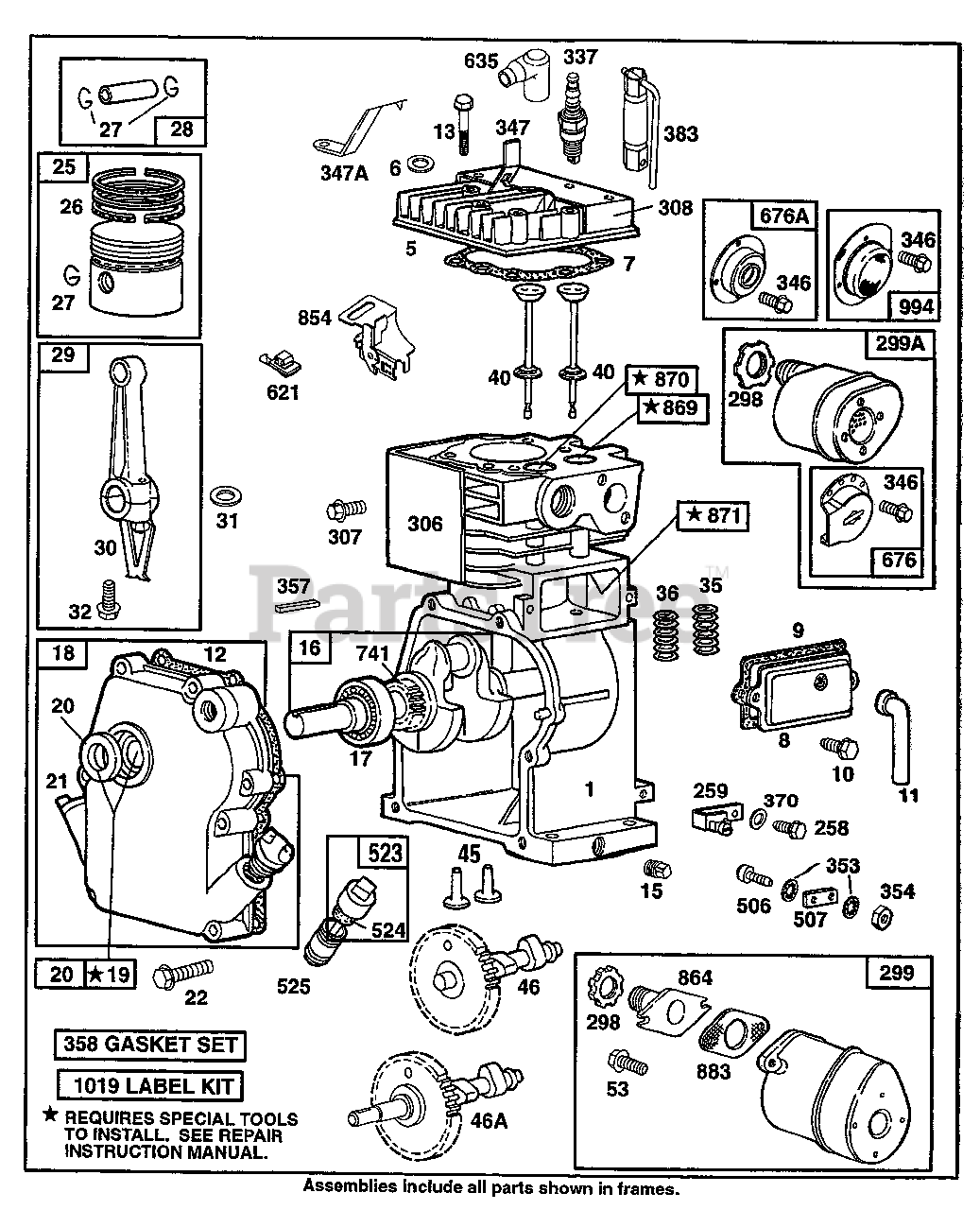

Cylinder,Crankcase,Mufflers Parts Diagram

  • Title

1

Briggs & Stratton 395879

Cylinder Assembly

$199.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 210812

Head-Cylinder
(Superseded to 213953)

$

$

Not available

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 272167

Gasket-Cyl Hd

Note: Included in Gasket Set-Part No. 397144

$7.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 294178

Cover-Breather
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket, Valve Cover
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 397144

$3.99

$

In Stock, Qty 14

0

10

Briggs & Stratton 94688

Screw-Valve Cover Mtg.
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 66638

Tube-Breather
(Superseded to 271489)

$8.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 270833

Gasket, Crankcase (.015")
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 397144

$

$

Not available

12

Briggs & Stratton 270895

Gasket-Crkcse (.005")

Note: Included in Gasket Set-Part No. 397144

$9.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 270896

Gasket-Crkcse (.009")

Note: Included in Gasket Set-Part No. 397144

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93583

Stud, Cylinder Head
(Superseded to 691690)

$

$

Not available

13

Briggs & Stratton 94547

Screw, Machine Hex (Cylinder Head)
(Superseded to 690912)

$3.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 91249

Plug, Pipe (Standar (1/4" Square)
(Superseded to 691686)

$5.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 93448

Plug, Pipe (Flush) (1/4-18 Nptf)
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 260664

Crankshaft
(Superseded to 494139)

$136.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 99158

Ball Bearing (P.t.o. Side)

$20.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 394820

Crankcase Cover (Plain Bearing Cover)
(Superseded to 699406)

$185.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293708

Bushing/Seal Kit (Plain Bearing)
(Superseded to 796961)

Note: Includes: 220538 Bushing Bushings Require Special Tools For Installation.

$21.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 397144

$5.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw-Tank Mounting
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 93656

Stud
(Superseded to 691120)

$12.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 295587

Piston Assy-Std

$48.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 295588

Piston Assy-010 (For 2-3/8" Bore)

$60.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 295589

Piston Assy-020 (For 2-3/8" Bore)

$132.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 295590

Piston Assy-030 (For 2-3/8" Bore)

$42.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 294224

Ring Set-010 (.010" O.S.)

$

$

Not available

26

Briggs & Stratton 294225

Ring Set-020 (.020" O.S.)

$64.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 294226

Ring Set-030

$57.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 294232

Ring Set-Std (Std.)

$39.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 297201

Ring Set-Std Chr

$24.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Lock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298908

Pin-Piston 005 (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 3 left!

0

29

Briggs & Stratton 294300

Rod Assy.-Connecting

$70.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 220459

Dipper-Connecting Rod

$6.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 222282

Washer

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94404

Screw-Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

35

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

40

Briggs & Stratton 93312

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 230173

Tappet-Valve
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

46A

Briggs & Stratton 211337

Gear-Cam (Auxiliary Drive)

$155.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 491676

Gear-Cam
(Superseded to 691998)

$61.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 93357

Screw-Sem, Phillips Hex. Hd.
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 93062

Screw, Hex Head Tap
(Superseded to 691637)

$3.99

$

Usually ships in 2-12 days

0

259

Briggs & Stratton 294502

Bracket-Control Wire Casing

$7.99

$

Usually ships in 2-12 days

0

298

Briggs & Stratton 220859

Locknut, Muffler/El
(Superseded to 691720)

$5.49

$

Usually ships in 2-12 days

0

299A

Briggs & Stratton 392811

Muffler Grp (Lo-Tone)
(Superseded to 493288)

$36.99

$

In Stock, only 1 left!

0

299A

Briggs & Stratton 398701

Guard-Muffler

Note: Uses: 94186 Screw-Hex. Head (Guard to Muffler) 93873 Screw-Hex. Head (Guard to Bracket)

$31.99

$

Usually ships in 2-12 days

0

299

Briggs & Stratton 493288

Muffler-Exhaust (Lo-Tone)

$36.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 220478

Shield-Cylinder

Note: Used Before Code Date 89102300

$16.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 224377

Shield-Cylinder

Note: Used After Code Date 89102200

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93758

Screw, Hex Wash Hd
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 223390

Cover-Cylinder Head

$7.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 29693

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 492167

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

347A

Briggs & Stratton 293739

Sparkplug Stop Sw

$4.99

$

Usually ships in 2-12 days

0

347A

Briggs & Stratton 298926

Sparkplug Stop Sw

$34.99

$

Usually ships in 2-12 days

0

347

Briggs & Stratton 220884

Switch-Stop

$11.99

$

In Stock, Qty 6

0

347

Briggs & Stratton 221808

Switch-Stop

$4.99

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

357

Briggs & Stratton 91539

Key, Pulley (3/16" Square)
(Superseded to 692191)

$

$

Not available

358

Briggs & Stratton 397144

Gasket Kit (Used With Rotary Choke Carburetors)
(Superseded to 495602)

$

$

Not available

370

Briggs & Stratton 66432

Washer, Steel Zinc
(Superseded to 691607)

$5.49

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

506

Briggs & Stratton 90200

Screw-Slotted (8-32 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 66895

Insulator-Terminal

$4.99

$

In Stock, only 2 left!

0

523

Briggs & Stratton 69345

Cap-Oil Filter

$9.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 65304

Gasket-Oil Filler Cap
(Superseded to 690270)

$3.99

$

In Stock, only 1 left!

0

525

Briggs & Stratton 91258

Dipstick Tube (2-1/2" Long)
(Superseded to 691257)

Note: Use 394884 Adapter-Oil Filler With Nipple

$24.99

$

In Stock, only 3 left!

0

621

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

$

$

Not available

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

676A

Briggs & Stratton 397931

Deflector-Muffler

$14.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393760

DEFLECTOR, Muffler

$9.49

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 261533

Gear, Timing
(Superseded to 691805)

Note: (For Plain Bearing 2 Piece Crankshaft)

$15.99

$

Usually ships in 2-12 days

0

854

Briggs & Stratton 392884

Stop-Switch

$7.49

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 492232

Adapter-Muffler
(Superseded to 690776)

$25.99

$

In Stock, only 1 left!

0

869

Briggs & Stratton 210879

Seat-Valve (Intake)

Note: Used Before Code Date 88080200

$6.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211172

Seat-Valve (Intake)
(Superseded to 691701)

Note: Used After Code Date 88080100

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Valve (Exhaust)
(Superseded to 691702)

Note: See Repair Instructions Manual For Options.

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231348

Bushing-Guide (Exhaust Valve)

$31.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

$14.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272203

Gasket-Muffler
(Superseded to 691314)

$6.49

$

In Stock, only 1 left!

0

994

Briggs & Stratton 398067

Spark Arrestor

$64.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491068

Label Kit

$4.49

$

Usually ships in 2-12 days
