6010 (1690199) - Simplicity 42" Garden Tractor, 10hp 42" Mower Deck & Arbor Group Parts Diagram

42" Garden Tractor, 10hp

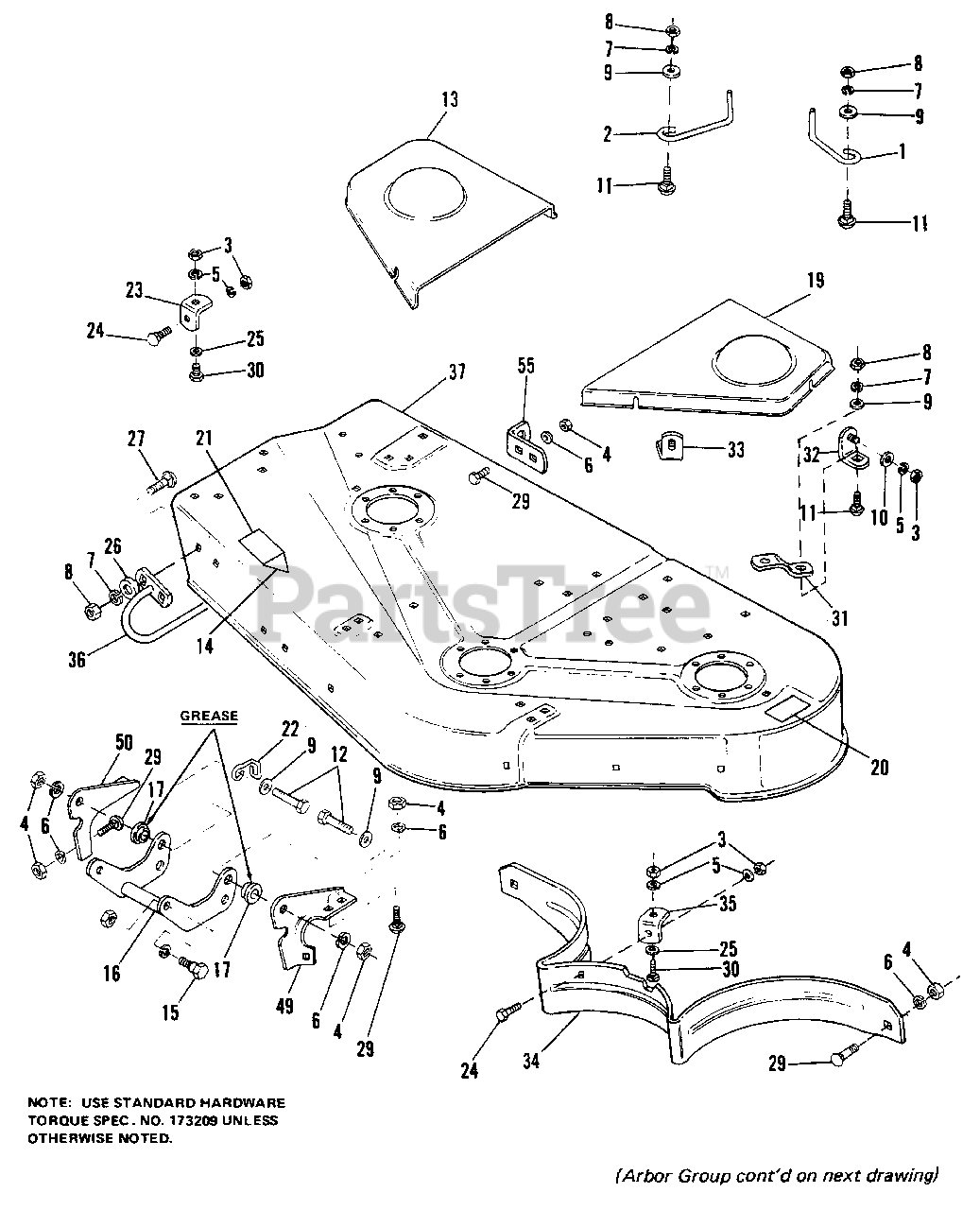

42" Mower Deck & Arbor Group Parts Diagram

  • Title

1

Simplicity 2106545SM

STOP, Belt

$5.99

$

Usually ships in 2-12 days

0

2

Simplicity 170396

Stop Belt

$

$

Not available

3

Simplicity 2816622SM

NUT Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 2816950SM

NUT Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

5

Simplicity 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

6

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

7

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1917372SM

NUT, Hex, 5/l6-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

10

Simplicity 2818264

WASHER, Plain, 1/4

$

$

Not available

11

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

12

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

13

Simplicity 1604275

COVER, R.H. Arbor

$

$

Not available

14

DECAL, OPEI

$

$

Not available

15

Simplicity 108711

BOLT, Shoulder

$

$

Not available

16

Simplicity 1655936

ARM ASSY, Mower Front

$

$

Not available

17

Simplicity 1655939

SPACER

$

$

Not available

19

Simplicity 1656800

COVER, L.H. Arbor

$

$

Not available

20

Simplicity 1704276SM

DECAL, Danger

$

$

Not available

21

Simplicity 1704277SM

DECAL, Warning
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

22

Simplicity 1657018

GUIDE, Cable

$

$

Not available

23

Simplicity 2108186SM

CLIP, Baffle

$12.99

$

In Stock, only 1 left!

0

24

Simplicity 2816943

BOLT, Carriage, 1/4-20

$

$

Not available

25

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

26

Simplicity 2819381

WASHER, Plain, 5/16

$

$

Not available

27

Simplicity 2821158

BOLT, Carriage. 5/16-16

$

$

Not available

29

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

30

Simplicity 2823341SM

CAPSCREW, Hex Hd., 1/4-20
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

31

Simplicity 1603090

CLIP, Spring

$

$

Not available

32

Simplicity 1604277

LEG ASSY, Arbor Cover.

$

$

Not available

33

Simplicity 1604278

LEG ASSY, Arbor Cover

$

$

Not available

34

Simplicity 1608135SM

BAFFLE, Center, 42"
(Superseded to 1608135ASM)

$98.99

$

Usually ships in 2-12 days

0

35

Simplicity 1608331SM

CLIP
(Superseded to 1608331ASM)

$10.99

$

Usually ships in 2-12 days

0

36

Simplicity 1685263SM

GUARD ASSY

$139.99

$

Usually ships in 2-12 days

0

37

Simplicity 1685107SM

HOUSING, 42" Mower

$

$

Not available

49

Simplicity 1655919

BRACKET, L.H. Front

$

$

Not available

50

Simplicity 1655920

BRACKET, R.H. Front

$

$

Not available

55

Simplicity 1603264SM

BRACKET, Roller Support

$20.99

$

Usually ships in 2-12 days

0
