6010 (1690199) - Simplicity 42" Garden Tractor, 10hp 42" Height Adjustment & Roller Group Parts Diagram

42" Garden Tractor, 10hp

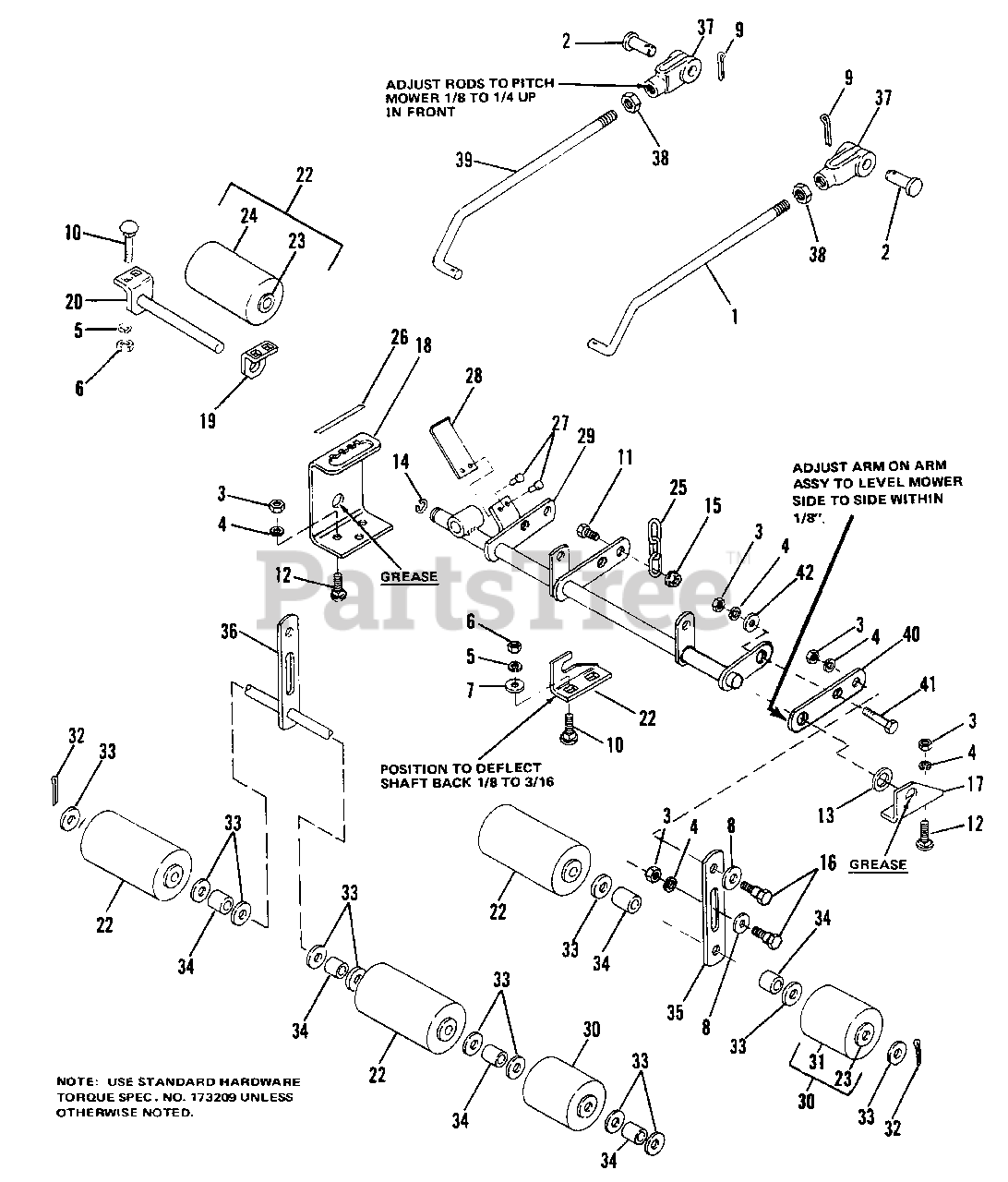

42" Height Adjustment & Roller Group Parts Diagram

  • Title

1

Simplicity 1655929

ROD, L.H., Mower Adjusting

$

$

Not available

2

Simplicity 2154305

PIN, Yoke

$

$

Not available

3

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

4

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

5

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

8

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

9

Simplicity 2818452

PIN Cotter, 1/8 x 1

$

$

Not available

10

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

11

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16

$

$

Not available

12

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

13

Simplicity 2824368

WASHER, Plain, 3/4

$

$

Not available

14

Simplicity 2827794SM

RING, Retaining No. 75, 3/4

$3.49

$

In Stock, Qty 16

0

15

Simplicity 2830645

NUT, Flange, 3/4-16

$

$

Not available

16

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

17

Simplicity 1603259

BRACKET, Pivot, L.H.

$

$

Not available

18

Simplicity 1603260

QUADRANT, Mower Control

$

$

Not available

19

Simplicity 1603269SM

BRACKET, Center Support

$66.99

$

Usually ships in 2-12 days

0

20

Simplicity 1603309

SHAFT ASSY, Center Roller

$

$

Not available

21

Simplicity 1608118

BRACKET, Lift

$

$

Not available

22

Simplicity 1608398SM

ROLLER ASSY

$

$

Not available

23

Simplicity 2108419

BUSHING

$

$

Not available

24

ROLLER, Mower

$

$

Not available

25

Simplicity 1656835A

CHAIN, Lift

$

$

Not available

26

Simplicity 1656855

DECAL, Mower Height

$

$

Not available

27

Simplicity 924280

RIVET, Pop

$

$

Not available

28

Simplicity 1603262

SPRING, Mower Quad.

$

$

Not available

29

Simplicity 1657508

ARM ASSY, Mower

$

$

Not available

30

Simplicity 1668513SM

ROLLER SUB-ASSY

$10.99

$

In Stock, Qty 20+

0

31

ROLLER

$

$

Not available

32

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

33

Simplicity 2819387

WASHER, Plain, 5/8

$

$

Not available

34

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

35

Simplicity 1603263SM

BAR, Roller
(Superseded to 1603263ASM)

$26.99

$

Usually ships in 2-12 days

0

36

Simplicity 1668814SM

SHAFT ASSY, Roller
(Superseded to 1668814ASM)

$113.99

$

Usually ships in 2-12 days

0

37

Simplicity 2157631

YOKE, End Adj.

$

$

Not available

38

Simplicity 2819262

NUT, Hex Jam, 1/2-20

$

$

Not available

39

Simplicity 1655930

ROD, R.H. Mower Adjusting

$

$

Not available

40

Simplicity 1657507

ARM, Mower

$

$

Not available

41

Simplicity 1920415SM

CAPSCREW, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0
