6010 (1690192) - Simplicity Garden Tractor, 10hp Transmission Sub-Assembly (6008, 6010) - Diagram 2 Parts Diagram

Garden Tractor, 10hp

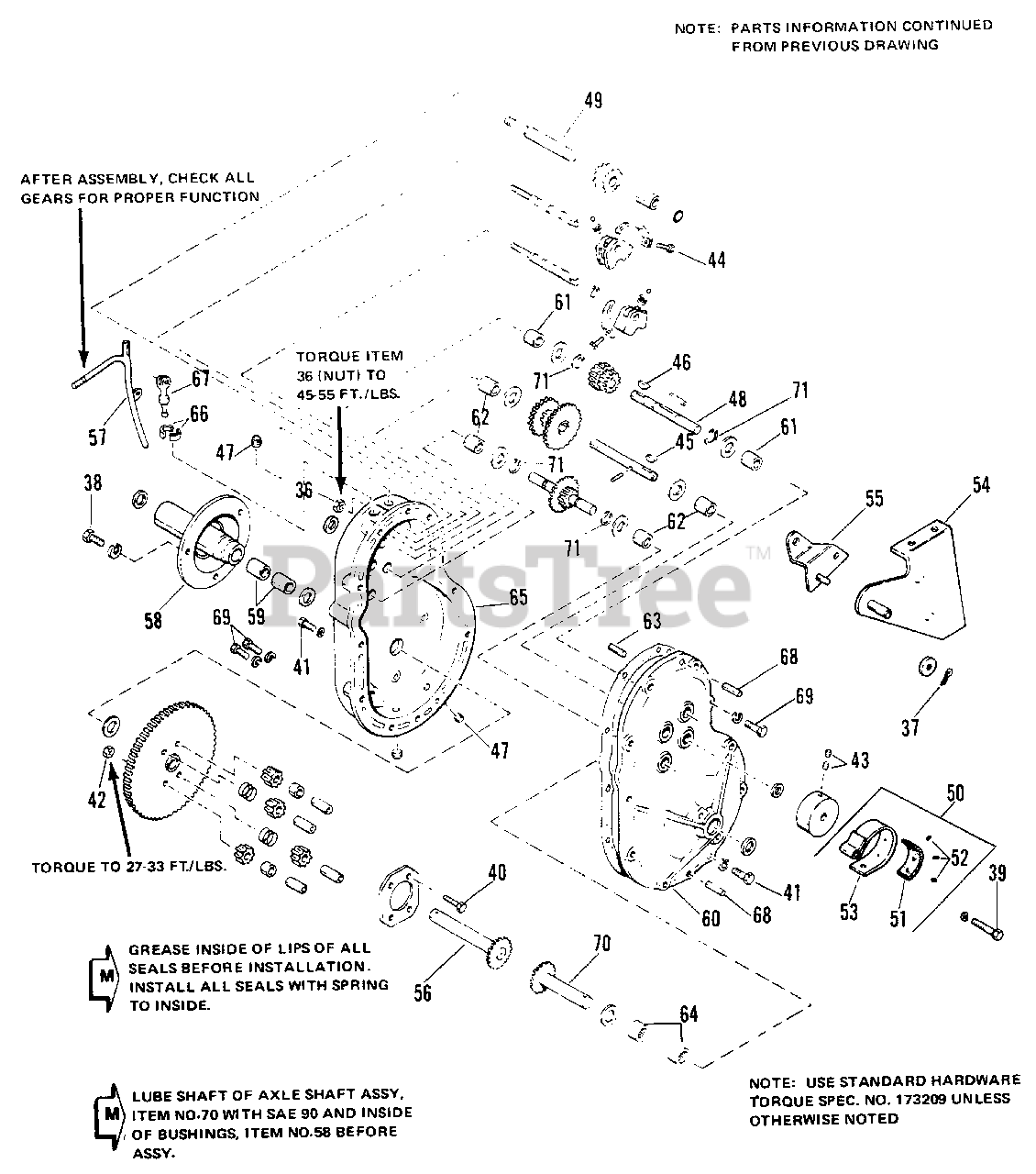

Transmission Sub-Assembly (6008, 6010) - Diagram 2 Parts Diagram

  • Title

36

Simplicity 2818213

NUT, Hex, 7/16-14

$

$

Not available

37

Simplicity 2818451

PIN, Cotter, 1/4 x 3/4

$

$

Not available

38

Simplicity 2819357

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

39

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

40

Simplicity 2821972

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2

$

$

Not available

41

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

42

Simplicity 2823428

LOCKNUT, Hex, Full, 3/8-16

$

$

Not available

43

Simplicity 2828691

SCREW, Set Hex Skt., 5/16-18 x 5/16

$

$

Not available

44

Simplicity 2830614

SCREW, Hex Washer Hd., 5/16-18 x 5/16

$

$

Not available

45

Simplicity 2830669

KEY, Hi Pro, 5/32 x 5/8

$

$

Not available

46

Simplicity 2830670SM

KEY, Hi Pro, 3/16 x 3/4

$2.49

$

Usually ships in 2-12 days

0

47

Simplicity 2830676SM

PIPE, Bushing, 3/4

$

$

Not available

48

Simplicity 1653526

SHAFT, Input

$

$

Not available

49

Simplicity 1653527

SHAFT, Reverse Pinion

$

$

Not available

50

Simplicity 2156134SM

BAND ASSY, Brake

$104.99

$

Usually ships in 2-12 days

0

51

Simplicity 2156134SM

LINING, Brake

$104.99

$

Usually ships in 2-12 days

0

52

Simplicity 2826021SM

RIVET, Tubular, 3/16 x 1/4

$3.49

$

Usually ships in 2-12 days

0

53

BAND, Brake

$

$

Not available

54

Simplicity 1663552

SUPPORT ASSY, Transmission

$

$

Not available

55

Simplicity 162022

IDLER LEVER ASSY

$

$

Not available

56

Simplicity 1655138

AXLE ASSY, R. H.

$

$

Not available

57

Simplicity 1668152SM

ROD ASSY, Shift

$

$

Not available

58

Simplicity 1655276

HOUSING ASSY, Axle w/Bearings

$

$

Not available

59

Simplicity 1657807

BUSHING

$

$

Not available

60

Simplicity 1655286

COVER, Sub-Assembly-Gear Case

$

$

Not available

61

Simplicity 2156072SM

BEARING

$24.99

$

In Stock, only 1 left!

0

62

Simplicity 2156073SM

BEARING, Roller

$11.99

$

Usually ships in 2-12 days

0

63

Simplicity 2156308SM

PIN, Sub- Assembly, Roll

$9.49

$

Usually ships in 2-12 days

0

64

Simplicity 2157679SM

BEARING, Roller

$26.99

$

Usually ships in 2-12 days

0

65

Simplicity 1655991

GEAR CASE SUB-ASSY

$

$

Not available

66

Simplicity 2101042SM

BUSHING

$

$

Not available

67

Simplicity 2156031

ROD ASSY, Shift

$

$

Not available

68

Simplicity 2818113

PIN, Spring, 3/8 x 1

$

$

Not available

69

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

70

Simplicity 1656915SM

AXLE ASSY, L. H.

$136.99

$

Usually ships in 2-12 days

0

71

Simplicity 1729260SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0
