6010 (1690192) - Simplicity Garden Tractor, 10hp Main Frame & Front Axle (6008, 6010) Parts Diagram

Garden Tractor, 10hp

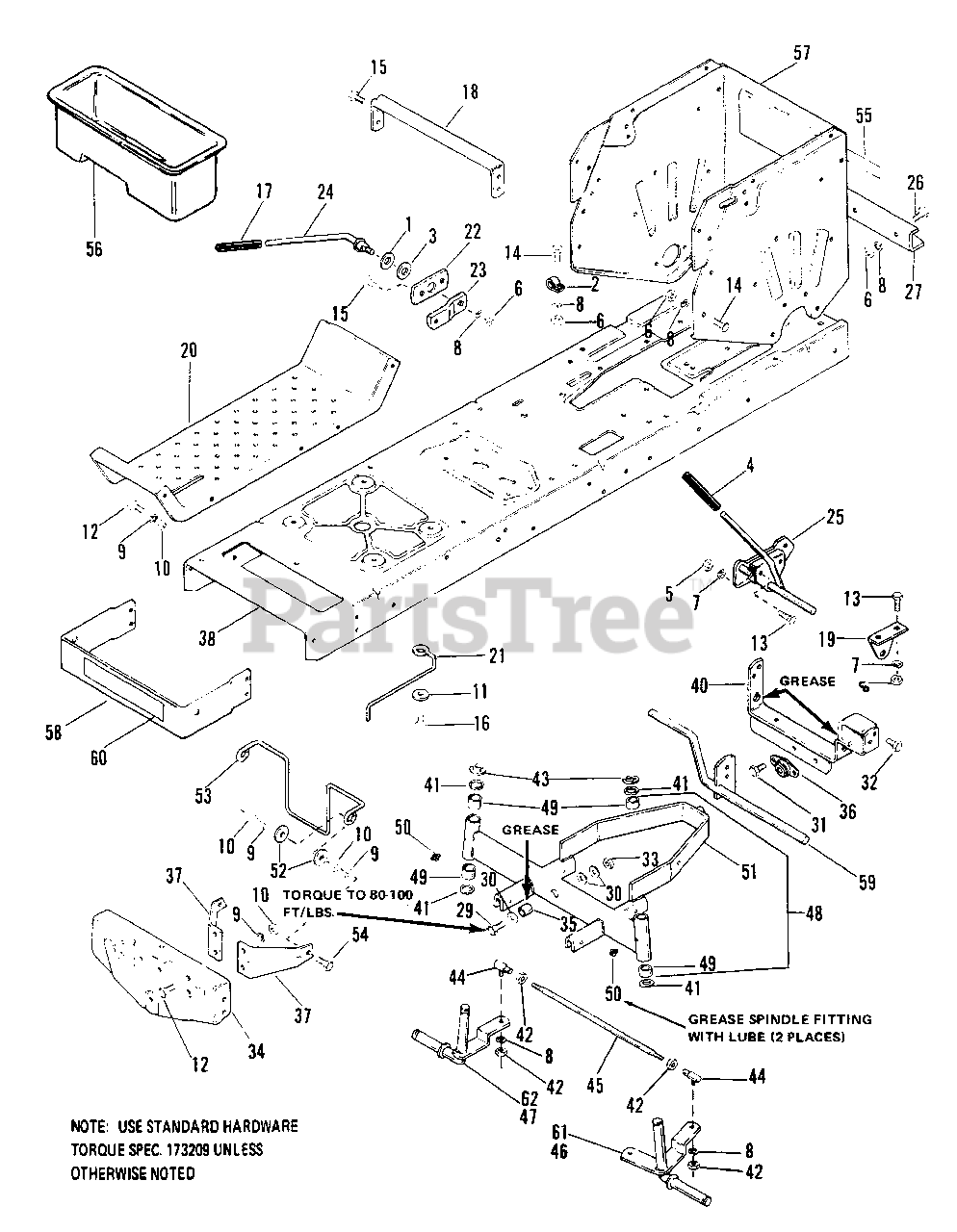

Main Frame & Front Axle (6008, 6010) Parts Diagram

  • Title

1

Simplicity 2101025SM

WASHER, Steel

$4.49

$

Usually ships in 2-12 days

0

2

Simplicity 122186

CLAMP

$

$

Not available

3

Simplicity 2156116

WASHER, Nylon

$

$

Not available

4

Simplicity 2176934SM

HANDLE, Grip

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

7

Simplicity 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

8

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

12

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

13

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

14

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

15

Simplicity 2824856

SCREW, Tapping, 5/16-18 x 1/2

$

$

Not available

16

Simplicity 2825009

SCREW, Tapping, 5/16-18 x 7/8

$

$

Not available

17

Simplicity 1651820SM

GRIP
(Superseded to 5023198SM)

$4.49

$

In Stock, only 2 left!

0

18

Simplicity 1654707

BRACE, Seat

$

$

Not available

19

Simplicity 1654783

SUPPORT, Clutch

$

$

Not available

20

Simplicity 1656225

FOOTREST

$

$

Not available

21

Simplicity 1656658

STOP, Belt

$

$

Not available

22

Simplicity 1656754SM

BAR, Support
(Superseded to 1656754ASM)

$7.49

$

In Stock, only 1 left!

0

23

Simplicity 1656755SM

ARM, Lift
(Superseded to 1656755ASM)

$6.99

$

Usually ships in 2-12 days

0

24

Simplicity 1685219SM

HANDLE, Lift

$110.99

$

Usually ships in 2-12 days

0

25

Simplicity 1663558

LEVER ASSY, Clutch

$

$

Not available

26

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

27

Simplicity 1655591SM

BAR, Draw
(Superseded to 1655591ASM)

$33.99

$

Usually ships in 2-12 days

0

29

Simplicity 923154

CAPSCREW, Hex Hd., 1/2-13 x 1-1/2

$

$

Not available

30

Simplicity 1926192SM

WASHER, Plain, 5/16

$19.99

$

Usually ships in 2-12 days

0

31

Simplicity 928730

SCREW, Washer Hd., 3/8-16 x 1/2

$

$

Not available

32

Simplicity 2830601

SCREW, Hex Washer Hd., 5/16-18 x 5/8

$

$

Not available

33

Simplicity 2830648

LOCKNUT, 1/2-13

$

$

Not available

34

Simplicity 1652600

FRONT AXLE SUPPORT

$

$

Not available

35

Simplicity 1655034

SPACER

$

$

Not available

36

Simplicity 1655064

BEARING ASSY, Side Range

$

$

Not available

37

Simplicity 1655076

BRACE, Front Axle

$

$

Not available

38

Simplicity 1655808

FRAME

$

$

Not available

40

Simplicity 1657079

SUPPORT ASSY, Axle

$

$

Not available

41

Simplicity 2108181

WASHER

$

$

Not available

42

Simplicity 2818403

NUT, Hex Jam, 3/8-24

$

$

Not available

43

Simplicity 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 16

0

44

Simplicity 1669567SM

BALL JOINT ASSY

$15.99

$

In Stock, Qty 10

0

45

Simplicity 1652613

TIE ROD

$

$

Not available

46

Simplicity 1665080SM

SPINDLE ASSY, L.H. (6010 Only)
(Superseded to 1665080ASM)

$195.99

$

Usually ships in 2-12 days

0

47

Simplicity 1665079

SPINDLE ASSY, R.H. (6010 Only)
(Superseded to 1665079ASM)

$97.99

$

In Stock, only 2 left!

0

48

Simplicity 1655268

AXLE ASSY, Front

$

$

Not available

49

Simplicity 2154289SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

50

Simplicity 2814687

FITTING, Lube

$

$

Not available

51

FRONT AXLE, w/o Bushings

$

$

Not available

52

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

53

Simplicity 1656396

STOP, Belt

$

$

Not available

54

Simplicity 2820243

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

55

Simplicity 1655708

DECAL, Transaxle

$

$

Not available

56

Simplicity 1655990

TOOL TRAY

$

$

Not available

57

Simplicity 1655812

SUPPORT, Axle (Rear Frame)

$

$

Not available

58

Simplicity 1656791

SUPPORT

$

$

Not available

59

Simplicity 1656851

LEVER ASSY, Brake

$

$

Not available

60

Simplicity 2153166

DECAL, Simplicity

$

$

Not available

61

Simplicity 1665080SM

SPINDLE ASSY, L.H. (6008 Only)
(Superseded to 1665080ASM)

$195.99

$

Usually ships in 2-12 days

0

62

Simplicity 1665079

SPINDLE ASSY, R.H. (6008 Only)
(Superseded to 1665079ASM)

$97.99

$

In Stock, only 2 left!

0
