6010 (1690192) - Simplicity Garden Tractor, 10hp Engine & Drive Group (6008, 6010) Parts Diagram

Garden Tractor, 10hp

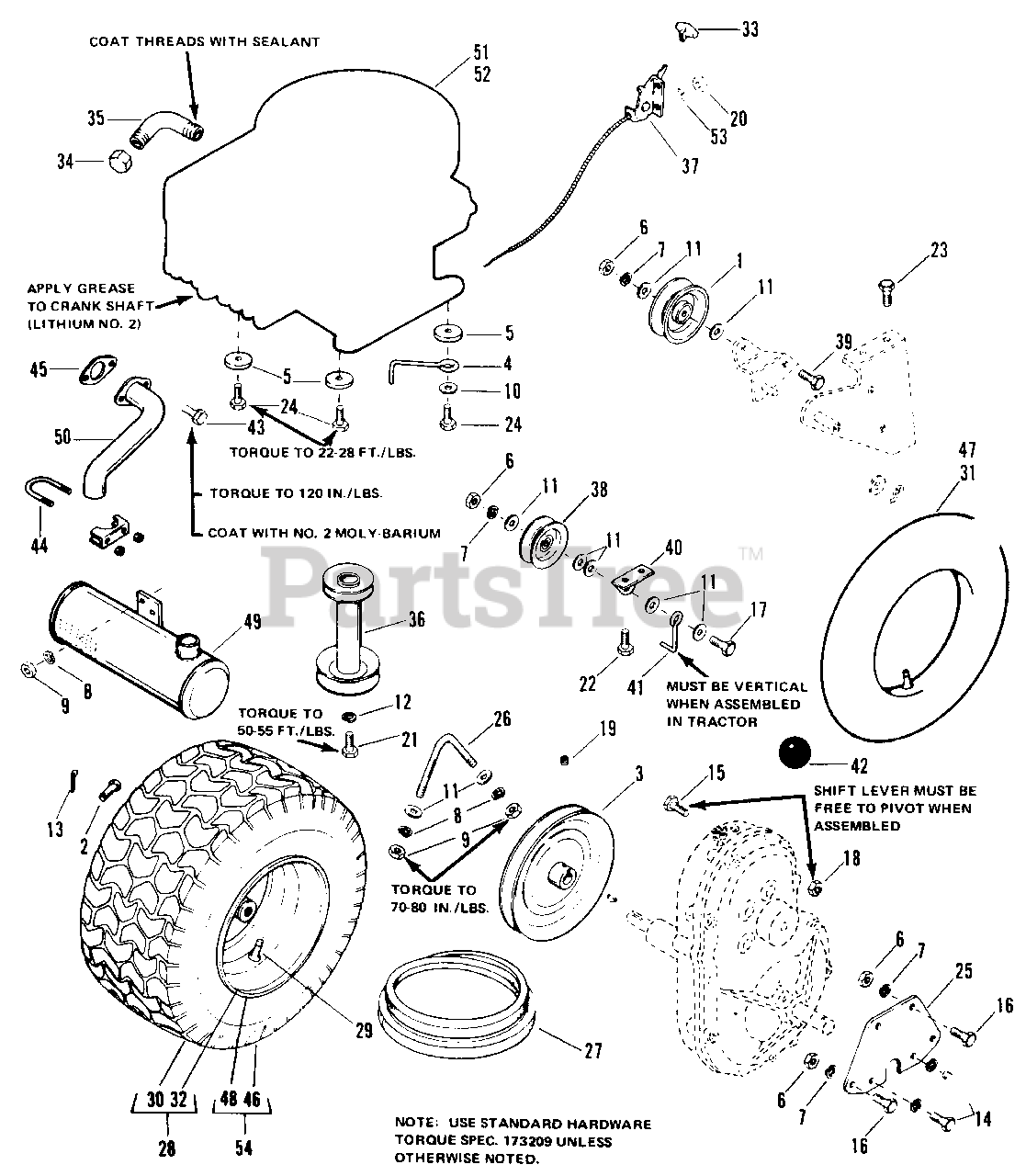

Engine & Drive Group (6008, 6010) Parts Diagram

  • Title

1

Simplicity 2106716

PULLEY, Idler

$

$

Not available

2

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

3

Simplicity 2156119SM

PULLEY, Transmission

$112.99

$

Usually ships in 2-12 days

0

4

Simplicity 2172844SM

STOP, Belt

$26.99

$

Usually ships in 2-12 days

0

5

Simplicity 2172908

WASHER

$

$

Not available

6

Simplicity 2816950SM

NUT, Hex 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

7

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

8

Simplicity 1917356SM

* LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917372SM

* NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

12

Simplicity 2818199

LOCKWASHER, Spring, 7/16

$

$

Not available

13

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

14

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

15

Simplicity 2821960

CAPSCREW, Hex Hd., 1/4-20 x 1

$

$

Not available

16

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

17

Simplicity 2821971

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

18

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

19

Simplicity 2824624

SCREW, Set Hex Skt., 3/8-24 x 3/8

$

$

Not available

20

Simplicity 2816622SM

NUT, Plain, 1/4
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 2828038

CAPSCREW, Hex Hd., 7/16-20 x 1 1/4

$

$

Not available

22

Simplicity 2829000

SCREW, Hex Washer Hd., 1/4-20 x 3/8

$

$

Not available

23

Simplicity 2830601

SCREW, Hex Washer Hd., 5/16-18 x 5/8

$

$

Not available

24

Simplicity 2830603

SCREW, Hex Washer Hd., 3/8-16 x 3/4

$

$

Not available

25

Simplicity 1653885

SUPPORT, Bracket

$

$

Not available

26

Simplicity 1655084

BOLT, Axle

$

$

Not available

27

Simplicity 2165048SM

V-BELT, Drive

$49.99

$

In Stock, only 3 left!

0

28

Simplicity 1655744

WHEEL & TIRE ASSY, 18 x 9.50-8 (6008)

$

$

Not available

29

Simplicity 2156305

VALVE, Stem & Cap (6008, 6010)

$

$

Not available

30

Simplicity 2156312

TIRE (6008)

$

$

Not available

31

Simplicity 156380

TUBE (6008)

$

$

Not available

32

Simplicity 1656905

WHEEL ASSY (6008)

$

$

Not available

33

Simplicity 1656099SM

KNOB
(Superseded to 1719768SM)

$12.99

$

Usually ships in 2-12 days

0

34

Simplicity 2801752

PIPE, Cap, 3/8

$

$

Not available

35

Simplicity 1658032SM

OIL DRAIN PIPE

$21.99

$

Usually ships in 2-12 days

0

36

Simplicity 1657118SM

PULLEY ASSY, Engine

$164.99

$

Usually ships in 2-12 days

0

37

Simplicity 1687058SM

CONTROL ASSY

$54.99

$

Usually ships in 2-12 days

0

38

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

Usually ships in 2-12 days

0

39

Simplicity 2828726

CAPSCREW, Hex Hd., 3/8-16 x 1 1/4

$

$

Not available

40

Simplicity 1655144

BRACKET, Idler

$

$

Not available

41

Simplicity 1656054SM

STOP, Belt

$

$

Not available

42

Simplicity 1729255SM

BALL, Knob

$12.99

$

Usually ships in 2-12 days

0

43

Simplicity 2830591

SCREW, Hex Whiz Lock, 5/16-18 x 3/4 (6010)

$

$

Not available

44

Simplicity 2831893SM

CLAMP, Exhaust 1 1/4 (6010)

$

$

Not available

45

Simplicity 1650670SM

GASKET, Muffler

$8.49

$

Usually ships in 2-12 days

0

46

Simplicity 2173456

TIRE, Tubeless (6010)

$

$

Not available

47

Simplicity 2173477SM

TUBE (6010)

$85.99

$

Usually ships in 2-12 days

0

48

Simplicity 1655743

WHEEL, 6" x 10" D (6010)

$

$

Not available

49

Simplicity 1655848SM

MUFFLER (6010)

$164.99

$

In Stock, only 1 left!

0

50

Simplicity 1655860SM

PIPE, Exhaust (6010)

$112.99

$

In Stock, only 1 left!

0

51

ENGINE, 8 HP, Briggs & Stratton, Model 251707, Type 0169-01, Synchro-Balanced (6008)

$

$

Not available

52

ENGINE, 10 H.P. (6010)

$

$

Not available

53

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

54

Simplicity 1655742

WHEEL & TIRE ASSY, 20 x 8.00-10 (6010)

$

$

Not available
