6010 (1690192) - Simplicity Garden Tractor, 10hp Brake & Clutch Group (6008, 6010) Parts Diagram

Garden Tractor, 10hp

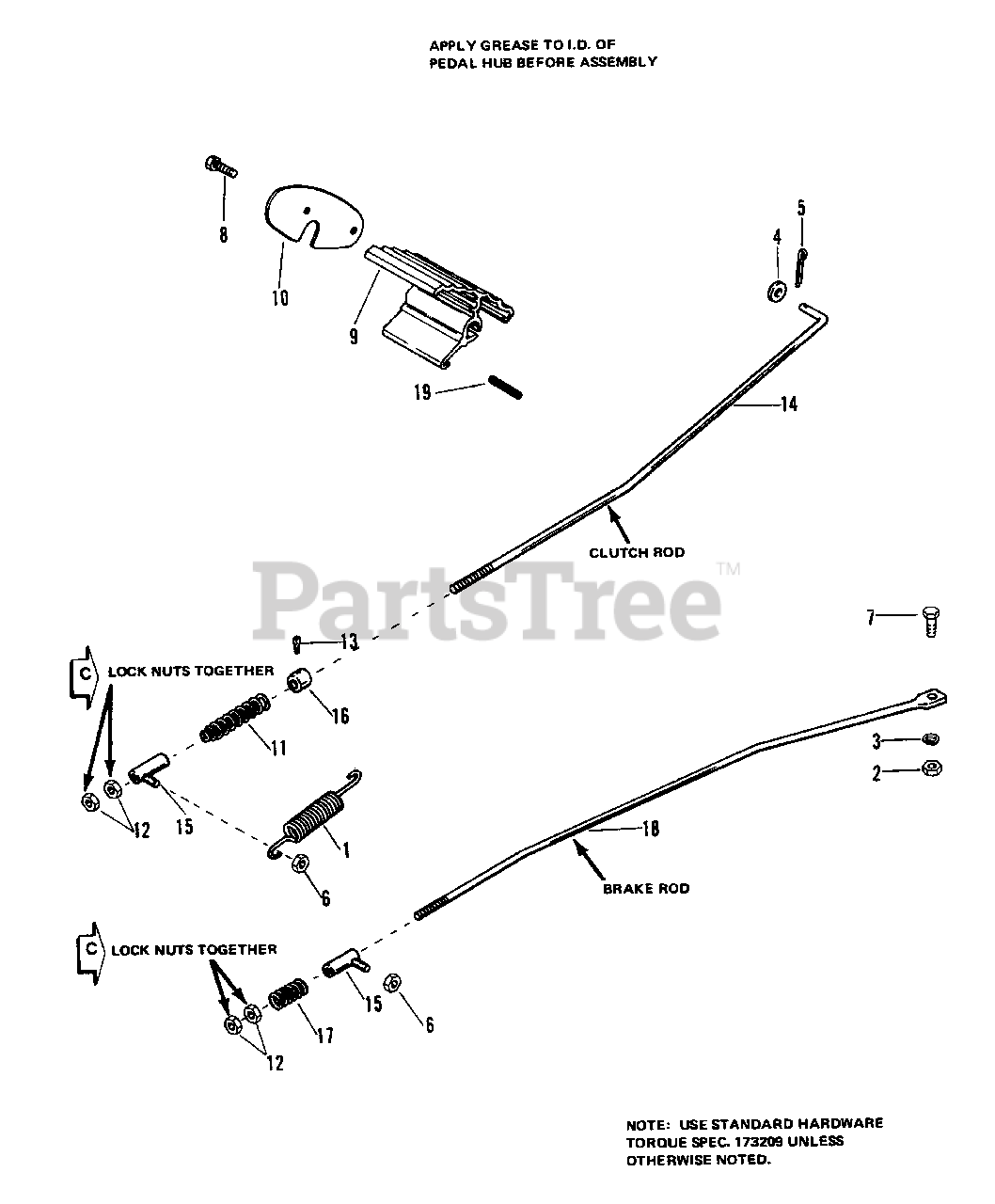

Brake & Clutch Group (6008, 6010) Parts Diagram

  • Title

1

Simplicity 2165068SM

SPRING, Return

$12.99

$

In Stock, Qty 5

0

2

Simplicity 2816622SM

NUT, Hex 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 2816964SM

LOCKWASHER, Spring 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

4

Simplicity 2817377

WASHER, Plain 1/4

$

$

Not available

5

Simplicity 2818447

PlN, Cotter 3/32 x 3/4

$

$

Not available

6

Simplicity 2823362

LOCKNUT Hex 5/16-18

$

$

Not available

7

Simplicity 2827340

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$

$

Not available

8

Simplicity 2827429

SCREW, Hex Washer Hd. 1/4-20 x 5/8

$

$

Not available

9

Simplicity 1656852SM

PEDAL, Foot

$

$

Not available

10

Simplicity 1656854

PLATE, End

$

$

Not available

11

Simplicity 2157041SM

SPRING, Compression

$15.99

$

Usually ships in 2-12 days

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 2828804

SCREW, Set Sq Hd Cup., 1/4-20 x 3/8

$

$

Not available

14

Simplicity 1655270

ROD, Clutch

$

$

Not available

15

Simplicity 1655596

GUIDE ASSY, Rod

$

$

Not available

16

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

17

Simplicity 2173575SM

SPRING

$13.99

$

Usually ships in 2-12 days

0

18

Simplicity 1654156

ROD, Brake

$

$

Not available

19

Simplicity 1659907SM

DAMPER

$5.49

$

In Stock, only 2 left!

0
