6008 (1690315) - Simplicity 36" Garden Tractor, 8hp Seat & Deck Group (6008 & 6011) Parts Diagram

36" Garden Tractor, 8hp

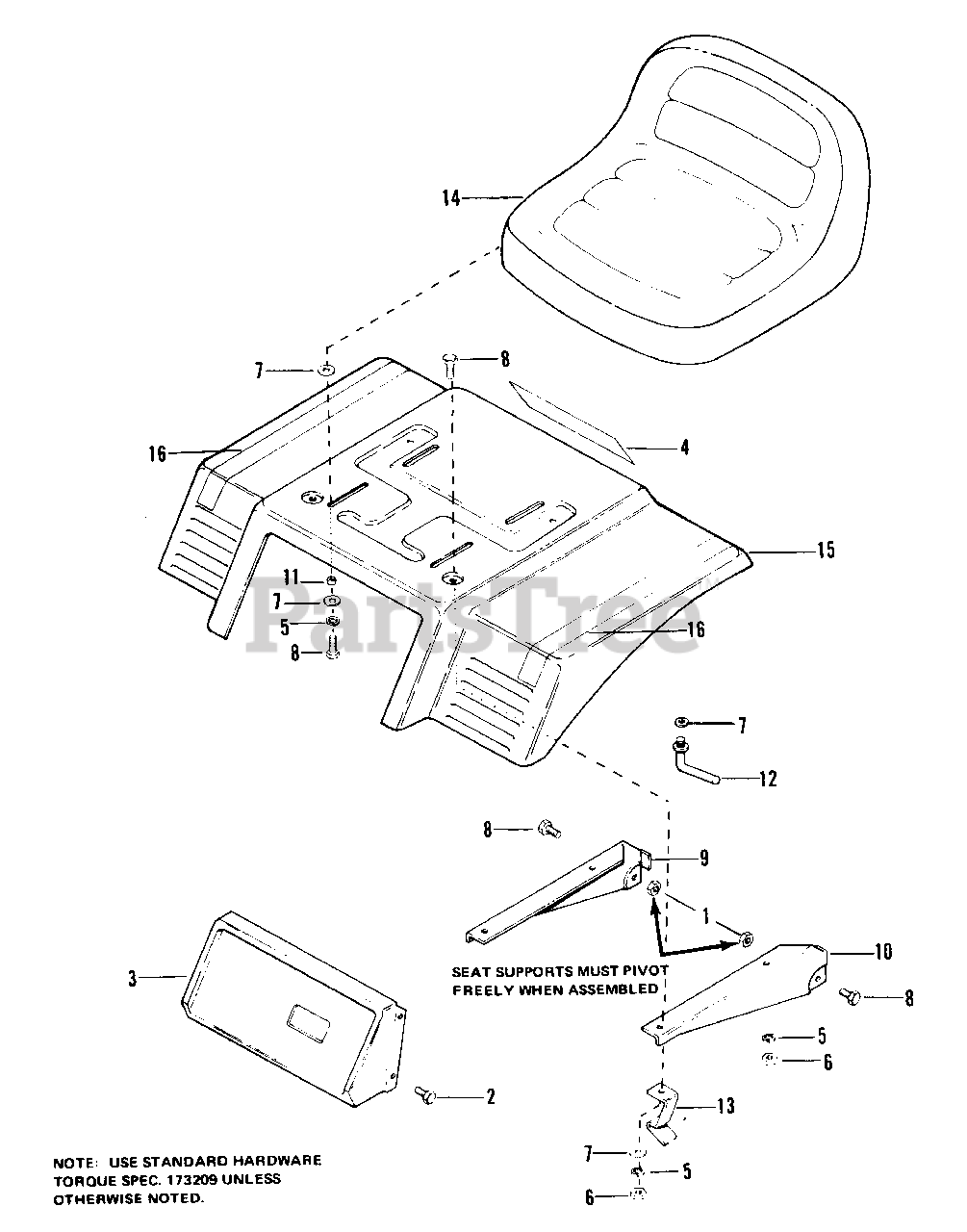

Seat & Deck Group (6008 & 6011) Parts Diagram

  • Title

1

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

2

Simplicity 2825003

SCREW, Tapping, 1/4-20 x 1/2

$

$

Not available

3

Simplicity 1668840SM

PANEL, Shift

$108.99

$

Usually ships in 2-12 days

0

4

Simplicity 2153166

DECAL, Simplicity

$

$

Not available

5

Simplicity 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2817642

WASHER, Plain 5/16

$

$

Not available

8

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

9

Simplicity 1701736SM

SUPPORT, R.H., Seat

$60.99

$

Usually ships in 2-12 days

0

10

Simplicity 1701737

SUPPORT, L.H., Seat

$

$

Not available

11

Simplicity 1655281

SPACER

$

$

Not available

12

Simplicity 1655282

SCREW, Hand

$

$

Not available

13

Simplicity 1655287

LATCH, Spring

$

$

Not available

14

Simplicity 1717294SM

SEAT

$289.99

$

Usually ships in 2-12 days

0

15

Simplicity 1656765

DECK, Seat

$

$

Not available

16

Simplicity 1657131

DECAL, Seat Deck

$

$

Not available
