6008 (1690315) - Simplicity 36" Garden Tractor, 8hp Brake & Clutch Group (6008 & 6011) Parts Diagram

36" Garden Tractor, 8hp

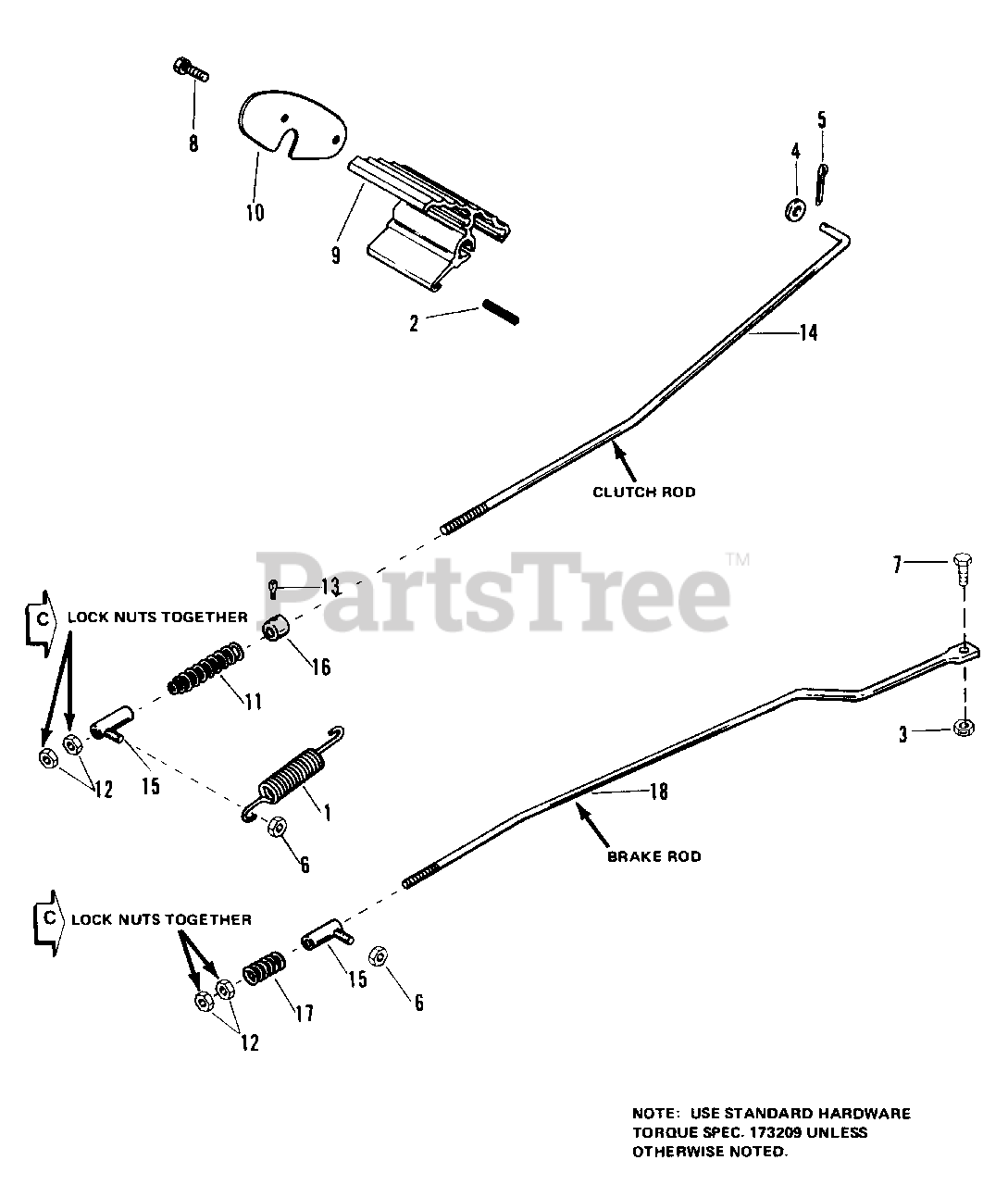

Brake & Clutch Group (6008 & 6011) Parts Diagram

  • Title

1

Simplicity 2165068SM

SPRING, Return

$12.99

$

In Stock, Qty 5

0

2

Simplicity 1659907SM

DAMPER

$5.49

$

In Stock, only 2 left!

0

3

Simplicity 2823358

NUT, Center Lock, 1/4-20

$

$

Not available

4

Simplicity 2817377

WASHER, Plain 1/4

$

$

Not available

5

Simplicity 2818447

PIN, Cotter 3/32 x 3/4

$

$

Not available

6

Simplicity 2823362

LOCKNUT, Hex 5/16-18

$

$

Not available

7

Simplicity 2827340

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$

$

Not available

8

Simplicity 2827429

SCREW, Hex Washer Hd., 1/4-20 x 5/8

$

$

Not available

9

Simplicity 1656852SM

PEDAL, Foot

$

$

Not available

10

Simplicity 1656854

PLATE, End

$

$

Not available

11

Simplicity 2157041SM

SPRING, Compression

$15.99

$

Usually ships in 2-12 days

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 2828804

SCREW, Set Sq. Hd. Cup., 1/4-20 x 3/8

$

$

Not available

14

Simplicity 1655270

ROD, Clutch

$

$

Not available

15

Simplicity 1655596

GUIDE ASSY., Rod

$

$

Not available

16

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

17

Simplicity 2173575SM

SPRING

$13.99

$

Usually ships in 2-12 days

0

18

Simplicity 1657599

ROD, Brake

$

$

Not available
