60010 - Troy-Bilt Front-Tine Mini-Tiller (SN: C001001 - C017818) CHAINCASE Parts Diagram

Front-Tine Mini-Tiller

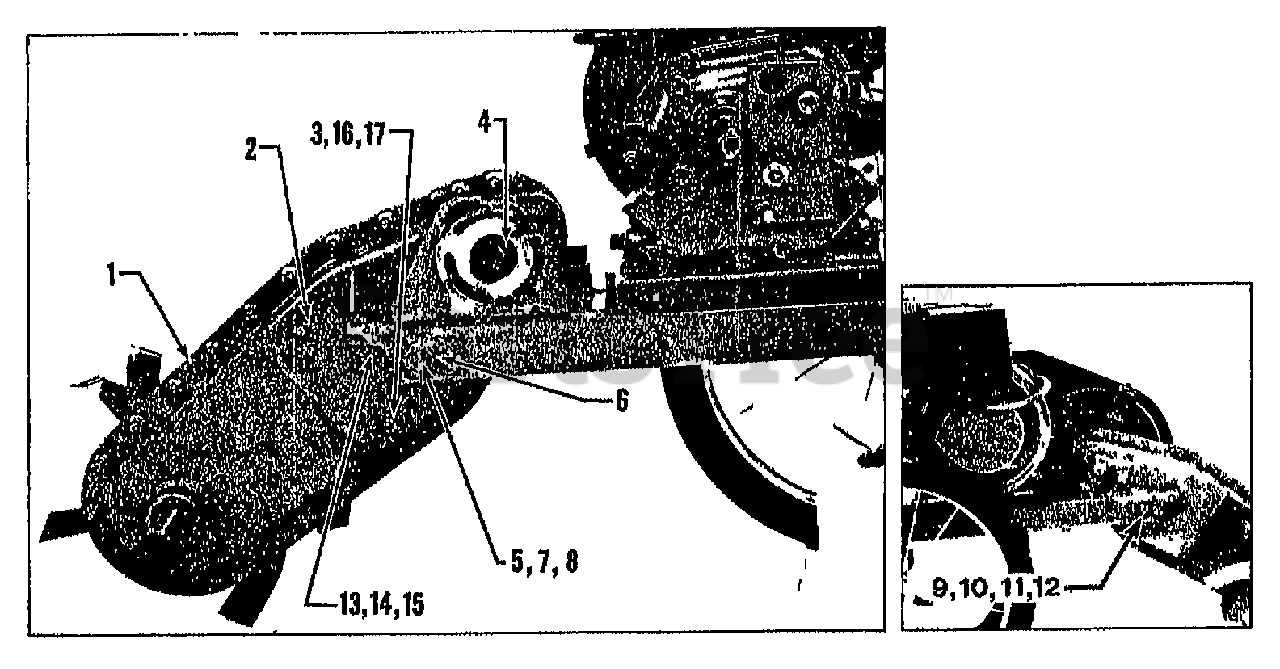

CHAINCASE Parts Diagram

  • Title

1

Troy-Bilt 60117

CHAINCASE-CULT PLUS (INCL. DRIVE GUARD MOUNTING BRACKET)

$

$

Currently unavailable

2

Troy-Bilt 9467

PLUG-OIL FILL 3/4-10
(Superseded to GW-9467)

$5.49

$

In Stock, only 1 left!

0

3

Troy-Bilt 9652

SCR-SLRH 5/16-18 X .5

$

$

Currently unavailable

4

Troy-Bilt 9619

SEAL-OIL

$

$

Currently unavailable

5

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

6

Troy-Bilt 9035

PLUG-# POSITIONING

$

$

Currently unavailable

7

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

8

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

9

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

10

Troy-Bilt 9499

SPACER-.745X.281X.37

$

$

Currently unavailable

11

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

12

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

13

Troy-Bilt 9578

BOLT-HH 5/16-18X3 G5 ZP (ATTACHES CHAIN CASE TO TINE ATTACHMENT)

$

$

Currently unavailable

14

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 9947

WASHER-.63X.312X.063 RUBBER

$

$

Currently unavailable

17

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 10

0
