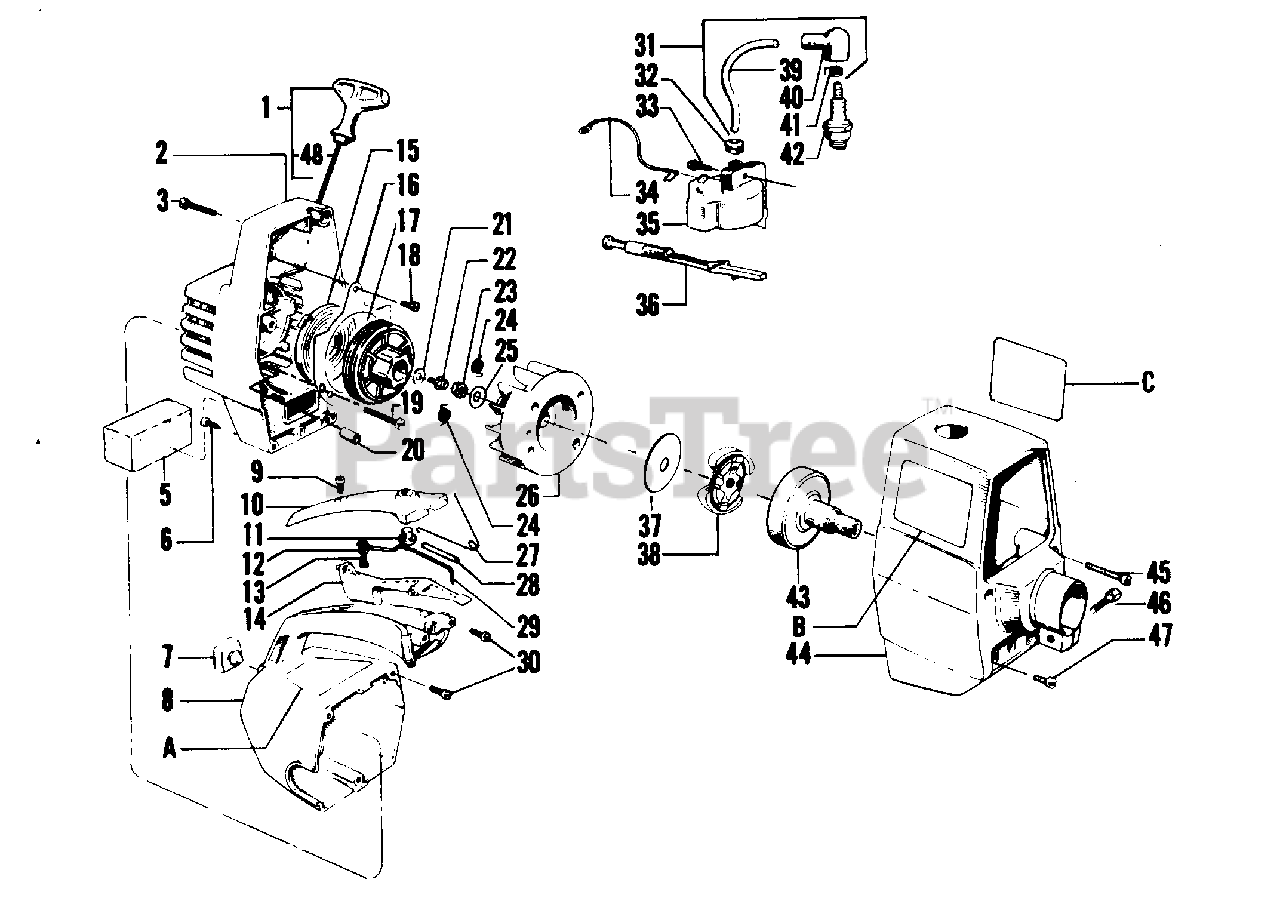

6000 - Weed Eater String Trimmer STARTER, & SHROUD Parts Diagram

String Trimmer

STARTER, & SHROUD Parts Diagram

  • Title

1

Rope & Handle - Starter - See Service Ref. 3.

$

$

Not available

2

Poulan 530069178

Fan Housing Kit (Inc. 16, 18, 19, 20, 28) - See Service Ref. 6

$46.99

$

Usually ships in 3-10 days

0

3

Poulan 530015583

Screw - 10 - 24 x 1-1/2 - Sems - Fan Hsg. - Top

$2.49

$

Usually ships in 3-10 days

0

5

Poulan 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

6

Poulan 530015582

Screw - 10 - 24 x 5/8 - Fan Hsg. - Bottom

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530024436

Bumper -Fuel Tank Housing

$

$

Not available

8

Poulan 530024656

Handle & Fuel Tank Housing

$

$

Not available

9

Poulan 530015247

Screw - 8 - 16 x 3/4 - Pan Hd. - Handle Cover

$

$

Not available

10

Poulan 530024661

Handle Cover

$

$

Not available

11

Poulan 530026679

Button - Kill Switch

$

$

Not available

12

Poulan 530015412

Washer - Kill Switch

$

$

Not available

13

Poulan 530015407

Screw - 8 - 16 x 3/8 - Pan Hd. - Kill Switch

$

$

Not available

14

Poulan 530024365

Trigger - Throttle

$

$

Not available

15

Starter Recoil Spring See Service Ref. 3.

$

$

Not available

16

Poulan 530026035

Air Baffle - See Service Ref. 6

$

$

Not available

17

Starter Pulley - See Service Ref. 3.

$

$

Not available

18

Poulan 530015373

Screw - #10 x 1/4 - Fil. Hd. - Air Baffle - See Service Ref. 6.

$

$

Not available

19

Poulan 530015305

Screw - 10 - 24 x 1-3/16 Fil. Hd. - Air Baffle See Service Ref. 6.

$1.99

$

Usually ships in 3-10 days

0

20

Poulan 530026122

Spacer

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530015123

Washer - Starter Pulley

$4.99

$

In Stock, only 4 left!

0

22

Poulan 530015479

Screw - #10 - 3/4 - Hex Washer Hd. - Starter Pulley
(Superseded to 530071620)

$34.99

$

In Stock, only 3 left!

0

23

Poulan 530626605

Nut - Flywheel - 5/16 x 24

$5.99

$

Usually ships in 3-10 days

0

24

Poulan 530042059

Spring - Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

25

Poulan 530015127

Washer - Flywheel

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 530039114

Flywheel Assembly (Inc. #24)

$

$

Not available

27

Poulan 530024461

Trigger Spring

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530021036

Insulation - Switch Spring

$

$

Not available

29

Poulan 530024407

Spring - Kill Switch

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 530015367

Screw - 10 - 14 x 3/4 - Fan Hsg. to Handle and Fuel Tank
(Superseded to 530015872)

$6.49

$

In Stock, Qty 17

0

31

Poulan 502039103

BEVEL GEAR COMPLETE
(Superseded to 502271102)

$364.99

$

Usually ships in 3-10 days

0

Poulan 530039103

HIGH TENSION LEAD NLA

$

$

Not available

32

Poulan 530024435

Grommet - Plug Wire

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530015128

Screw - 8 - 32 x 3/4 - Fil. Hd. - Ignition Module
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530024158

Lead Wire Switch

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 530069181

Kit - Ignition Module

$

$

Not available

36

Poulan 530024303

Knob - Choke

$

$

Not available

37

Poulan 530069196

Kit - Clutch - Washer - See Service Ref. 5

$

$

Not available

38

Kit - Clutch Ass'y. - See Service Ref. 1 & 5 (Inc. Clutch Washer)

$

$

Not available

39

Poulan 530039082

High Tension Lead Wire

$

$

Not available

40

Poulan 530003934

Boot - Spark Plug

$

$

Not available

41

Poulan 530003933

Connector - Spark Plug Lead
(Superseded to 507475326)

$

$

Not available

42

Poulan 530030077

Spark Plug

$

$

Not available

43

Poulan 530010797

Coupling and Bearing Assembly

$

$

Not available

44

Poulan 530011778

Shroud

$

$

Not available

45

Poulan 530015376

Screw - 10 - 24 x 1-1/3 Fil. Hd. - Shroud (Top)

$

$

Not available

46

Poulan 530093802

Bolt - Pinch Clamp

$

$

Not available

47

Poulan 530015168

Screw - 10 - 24 x 5/8 - Fil. Hd. - Shroud (Bottom)

$

$

Not available

48

Poulan 530022290

Rope (3.5 ft.)

$

$

Not available

A

Poulan 530025256

Decal - Starting Instructions

$

$

Not available

B

Poulan 530025159

Decal - Shroud (Right) (Not a serviceable part)

$

$

Not available

C

Poulan 530025160

Decal - Shroud (Left)

$

$

Not available
