6000-8811 - Troy-Bilt Horse III Rear-Tine Tiller Tiller Attachment Transmission Assemblies Parts Diagram

Horse III Rear-Tine Tiller

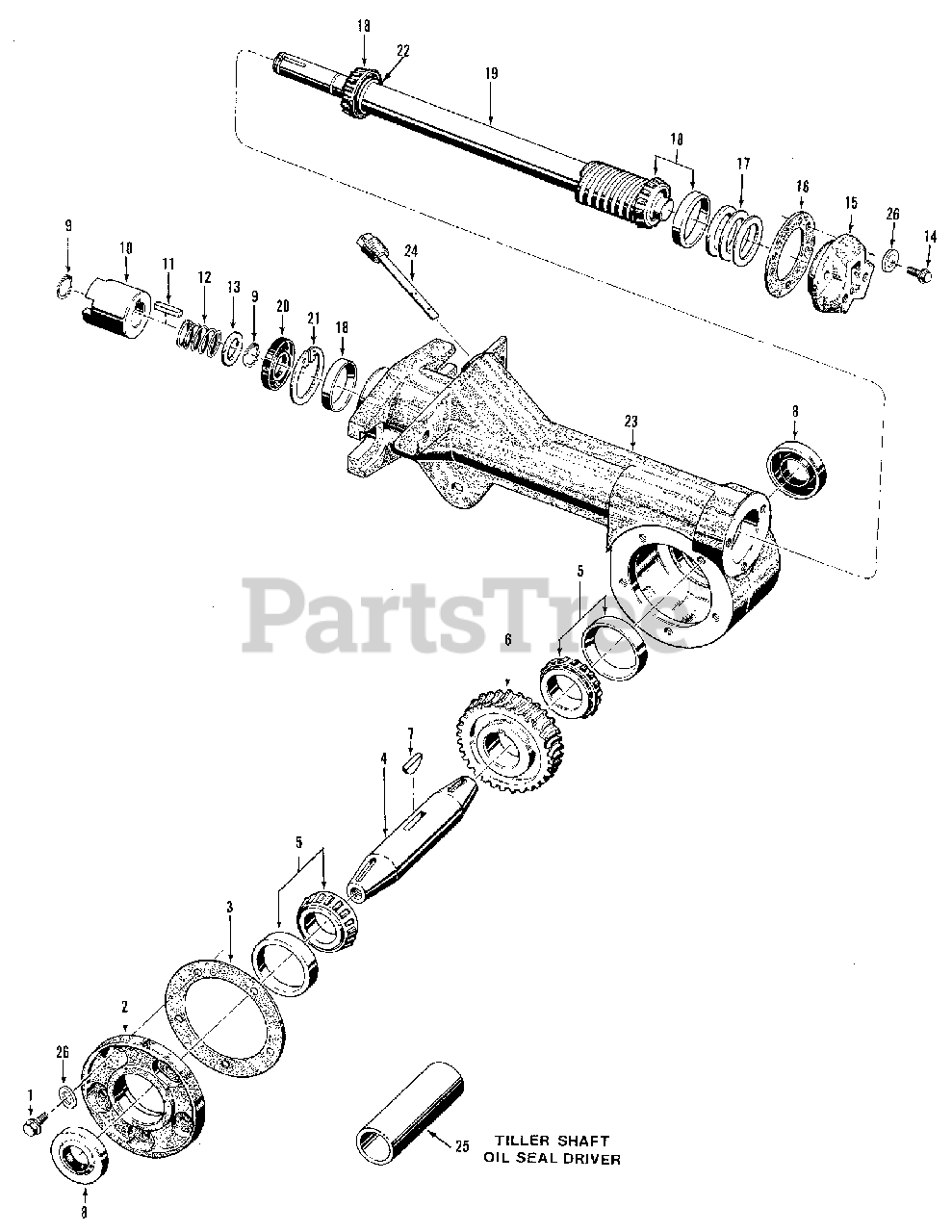

Tiller Attachment Transmission Assemblies Parts Diagram

  • Title

1

Troy-Bilt GW-9780

BOLT - hex. hd., 1/4"-20 x 5/8", self-locking flange TILLER TINE SHAFT ASSEMBLY
(Superseded to 1186309)

$

$

Not available

2

Troy-Bilt GW-2451

COVER- tiller housing Includes five #9780 bolts (Ref.No.1); TILLER TINE SHAFT ASSEMBLY
(Superseded to GW-10456)

$143.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt GW-1129-1

GASKET- tiller housing cover, .010" thick TILLER TINE SHAFT ASSEMBLY
(Superseded to GW-1129-1099)

Note: A/R

$8.99

$

In Stock, Qty 17

0

3

Troy-Bilt GW-1129-2

GASKET- same as above, .030" thick TILLER TINE SHAFT ASSEMBLY
(Superseded to GW-1129-2099)

Note: A/R

$8.99

$

In Stock, only 3 left!

0

4

Troy-Bilt GW-1026A

SHAFT-tiller tine Includes #1104 key(Ref. #7); TILLER TINE SHAFT ASSEMBLY

$200.99

$

In Stock, only 3 left!

0

5

Troy-Bilt GW-11522

BEARING & CUP - tapered cone roller bearing with cup (race). Cone and cup sold as set only TILLER TINE SHAFT ASSEMBLY

Note: includes 741-3050 cup and 741-3051 cone. Use with GW-11527

$69.99

$

In Stock, Qty 6

0

6

Troy-Bilt GW-1064

WORM GEAR-bronze, tiller tine shaft. Driven by worm on tiller driven shaft TILLER TINE SHAFT ASSEMBLY
(Superseded to GW-11527)

Note: Use GW-11527

$261.99

$

In Stock, only 1 left!

0

6

Troy-Bilt GW-11527

Kit-Tiller Gear, Cones & Cups. TILLER TINE SHAFT ASSEMBLY

Note: includes two 741-3050 cups and two 741-3051 cones. Use with GW-11522

$261.99

$

In Stock, only 1 left!

0

7

Troy-Bilt GW-1104

KEY - tiller tine shaft. Woodruff key with ends ground TILLER TINE SHAFT ASSEMBLY

$9.49

$

In Stock, only 1 left!

0

8

Troy-Bilt GW-9618

SEAL-oil, tiller tine shaft Replaces 9616; TILLER TINE SHAFT ASSEMBLY
(Superseded to GW-9618099)

$20.99

$

In Stock, Qty 20+

0

9

Troy-Bilt GW-9500

RETAINING RING -(snapring),external. Retains dog clutch to shaft TILLER DRIVE SHAFT ASSEMBLY
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt GW-2120-1

DOG CLUTCH - tiller drive shaft TILLER DRIVE SHAFT ASSEMBLY
(Superseded to 1902404)

$166.99

$

In Stock, only 1 left!

0

11

Troy-Bilt GW-9301

KEY-3/16" square X 1",dog clutch to tiller driveshaft TILLER DRIVE SHAFT ASSEMBLY

$3.99

$

In Stock, only 3 left!

0

12

Troy-Bilt GW-2127

SPRING - dog clutch TILLER DRIVE SHAFT ASSEMBLY

$5.99

$

In Stock, Qty 13

0

13

Troy-Bilt GW-1138-1

SHIM - dog clutch, 1/16" (.062") thick TILLER DRIVE SHAFT ASSEMBLY
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt GW-9773

BOLT - hex. hd., 1/4"-20 x 7/8", self locking flange TILLER DRIVE SHAFT ASSEMBLY
(Superseded to 1915069)

$4.49

$

In Stock, only 3 left!

0

15

Troy-Bilt GW-1115

CAP -rear bearing TILLER DRIVE SHAFT ASSEMBLY
(Superseded to 718-04406)

$50.99

$

In Stock, Qty 5

0

16

Troy-Bilt GW-1124-2

GASKET -rear bearing cap TILLER DRIVE SHAFT ASSEMBLY
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 19

0

17

Troy-Bilt GW-1224-1

SHIM - front bearing cap, .010" thick TILLER DRIVE SHAFT ASSEMBLY
(Superseded to 736-04308)

Note: A/R

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt GW-1224-2

SHIM - same as above, .030" thick TILLER DRIVE SHAFT ASSEMBLY
(Superseded to 736-04307)

Note: A/R

$4.49

$

In Stock, only 3 left!

0

17

Troy-Bilt GW-1224-3

SHIM - same as above, .005" thick TILLER DRIVE SHAFT ASSEMBLY
(Superseded to 736-04306)

Note: A/R

$4.49

$

In Stock, Qty 6

0

17

Troy-Bilt GW-1224-4

SHIM - same as above, .062" thick TILLER DRIVE SHAFT ASSEMBLY
(Superseded to 736-04305)

Note: A/R

$3.99

$

In Stock, Qty 16

0

18

Troy-Bilt GW-1714

BEARING & CUP - tapered cone roller bearing with cup (race). Cone and cup sold as set only TILLER DRIVE SHAFT ASSEMBLY
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 18

0

19

Troy-Bilt GW-1986

SHAFT- main tiller drive ; TILLER DRIVE SHAFT ASSEMBLY

Note: Includes welded-on worm gear, two pressed-on cone roller bearings, two bearing cups (Ref.#18) and one shoulder washer .766 X 1.0

$

$

Not available

20

Troy-Bilt GW-9617

SEAL- oil, drive shaft, front TILLER DRIVE SHAFT ASSEMBLY
(Superseded to 921-04030)

$12.99

$

In Stock, Qty 20+

0

21

Troy-Bilt GW-9517

RETAINING RING -(snapring),internal. Retains front bearing cup TILLER DRIVE SHAFT ASSEMBLY
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt GW-50043

WASHER - shoulder (drive shaft) TILLER DRIVE SHAFT ASSEMBLY
(Superseded to 736-04304)

$4.49

$

In Stock, Qty 11

0

23

Troy-Bilt GW-2206

HOUSING - tiller attachment TRANSMISSION HOUSING AND DIPSTICK

Note: Includes pressed-on sleeve in front of housing and one tine shaft bearing cone 741-3051 & cup 741-3050 mounted in right side of housing.

$

$

Not available

24

MTD GW-2136

DIPSTICK- oil level, tiller attachment TRANSMISSION HOUSING AND DIPSTICK

$

$

Not available

25

N/A

OIL SEAL DRIVER - for tiller shaft oil seals

Note: Purchase locally

$

$

Not available

26

Troy-Bilt GW-9945

WASHER-1/4",plastic MISCELLANEOUS PARTS

$

$

Not available

Troy-Bilt 737-04040

Transmission Oil, Gear. Quart
(Superseded to 490-000-V045)

$19.99

$

In Stock, only 2 left!

0
