600 SD (954130050) - Jonsered Walk-Behind Mower (2001-03) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

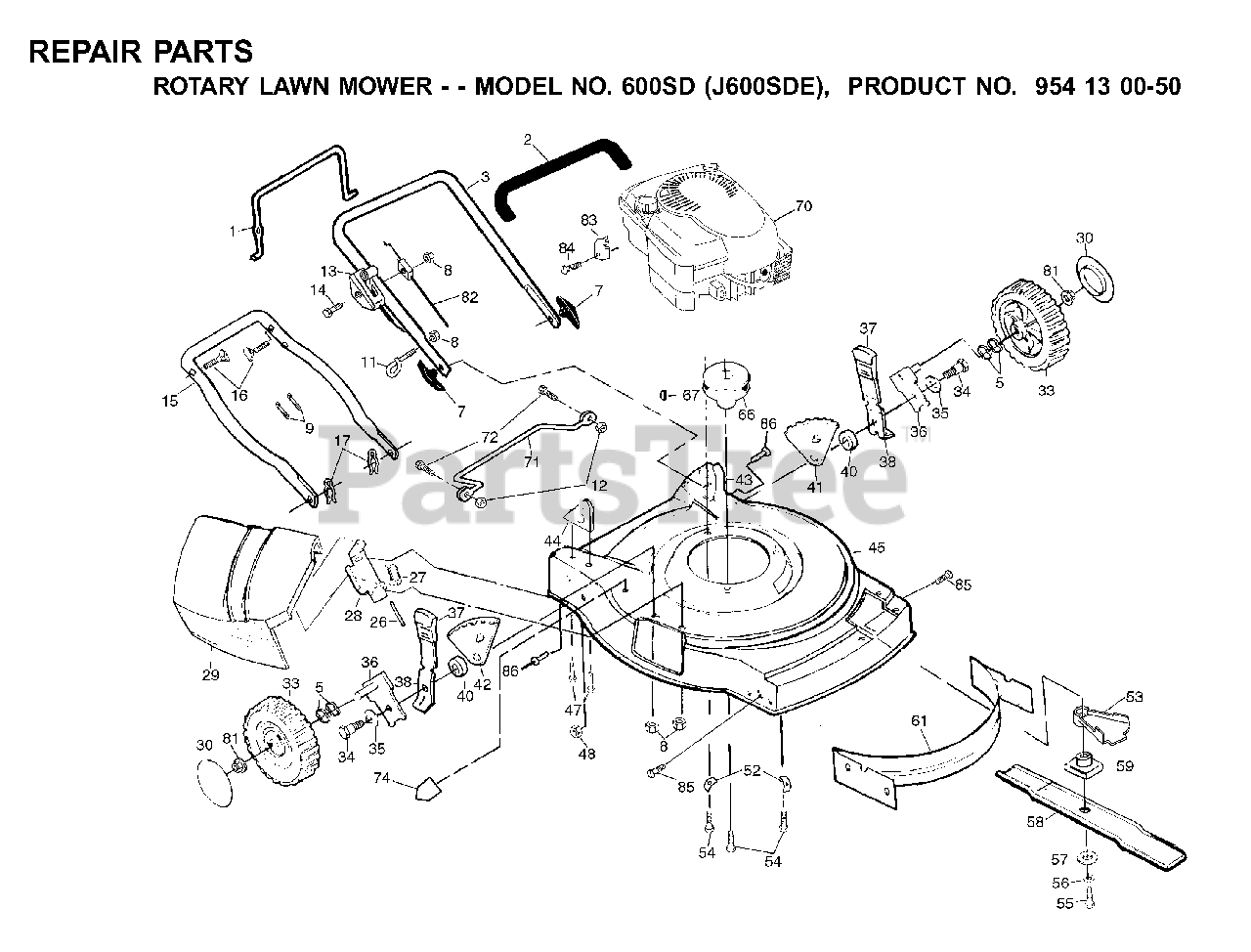

PRODUCT COMPLETE Parts Diagram

  • Title
1

Jonsered 532145794

CONTROL BAR ORANGE
(Superseded to 583678201)

$

$

Not available

2

Jonsered 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

3

Jonsered 532167163

No Description Available

$46.99

$

Usually ships in 3-10 days

0

5

Jonsered 532057143

WAVE WASHER
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

7

Jonsered 532136376

HANDLE KNOB
(Superseded to 532183724)

$

$

Not available

8

Jonsered 532063601

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

9

Jonsered 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

11

Jonsered 532153638

No Description Available

$

$

Not available

12

$6.49

$

Usually ships in 3-10 days

0

13

Jonsered 532166971

THROTTLE CONTROL
(Superseded to 532182157)

$

$

Not available

14

Jonsered 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

15

Jonsered 532153605

LOWER HANDLE
(Superseded to 532151721)

$

$

Not available

16

Jonsered 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

17

Jonsered 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

26

Jonsered 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 9

0

27

Jonsered 532087589

SPRING PM

$6.49

$

Usually ships in 3-10 days

0

28

Jonsered 532087593

BRACKET PM

$6.99

$

Usually ships in 3-10 days

0

$

$

Not available

30

Jonsered 532801153

No Description Available

$

$

Not available

33

Jonsered 532750550

WHEEL.8X2.PR.LP.RAD.GREY

$34.99

$

Usually ships in 3-10 days

0

34

Jonsered 532142748

BOLT
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

35

Jonsered 532062335

BELLEVILLE WASHER

$9.99

$

Usually ships in 3-10 days

0

36

Jonsered 532151254

AXLE ARM
(Superseded to 532145937)

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

38

Jonsered 532125259

No Description Available
(Superseded to 584386501)

$3.99

$

Usually ships in 3-10 days

0

40

Jonsered 532146630

RP SPACER HT ADJ
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

41

Jonsered 532134340

No Description Available

$

$

Not available

42

Jonsered 532134341

No Description Available
(Superseded to 584313501)

$2.99

$

Usually ships in 3-10 days

0

43

Jonsered 532170977

HANDLE BRACKET ASM. LH
(Superseded to 532170346)

$7.49

$

In Stock, only 1 left!

0

44

Jonsered 532170975

HANDLE BRACKET ASM. RH
(Superseded to 532170345)

$7.49

$

In Stock, only 1 left!

0

45

Jonsered 532170499

No Description Available

$

$

Not available

47

Jonsered 532149741

SCREW 5/16-18
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

48

Jonsered 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Jonsered 532125078

No Description Available

$5.99

$

Usually ships in 3-10 days

0

53

Jonsered 532134612

DEBRIS SHIELD
(Superseded to 532048283)

$

$

Not available

54

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

55

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

56

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

57

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

58

Jonsered 532850973

22" BLADE (FOR MODEL 56 SFEB)
(Superseded to 532406713)

$26.99

$

In Stock, Qty 11

0

59

Jonsered 532851514

RP BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

61

Jonsered 532170491

No Description Available

$

$

Not available

66

Jonsered 532084596

ENGINE.PULLEY.FWG

$34.99

$

In Stock, only 2 left!

0

67

Jonsered 532087677

HI PRO KEY PM

$

$

Not available

71

Jonsered 532154147

No Description Available

$

$

Not available

72

Jonsered 532085825

No Description Available
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

74

Jonsered 532145494

DECAL MOWER CUT/FINGER

$10.99

$

Usually ships in 3-10 days

0

81

Jonsered 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

82

Jonsered 532133107

ENGINE ZONE CONTROL

$20.99

$

In Stock, only 1 left!

0

83

Jonsered 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

84

Jonsered 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

86

Jonsered 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

--

Jonsered 532125381

No Description Available
(Superseded to 134027X479)

$

$

Not available

--

Jonsered 532168711

No Description Available

$4.99

$

Usually ships in 3-10 days

0

--

Jonsered 532168710

No Description Available

$5.99

$

Usually ships in 3-10 days

0

--

Jonsered GCK5000

No Description Available
(Superseded to 531307263)

$42.99

$

Usually ships in 3-10 days

0

--

Jonsered MK22SD

No Description Available

$

$

Not available
