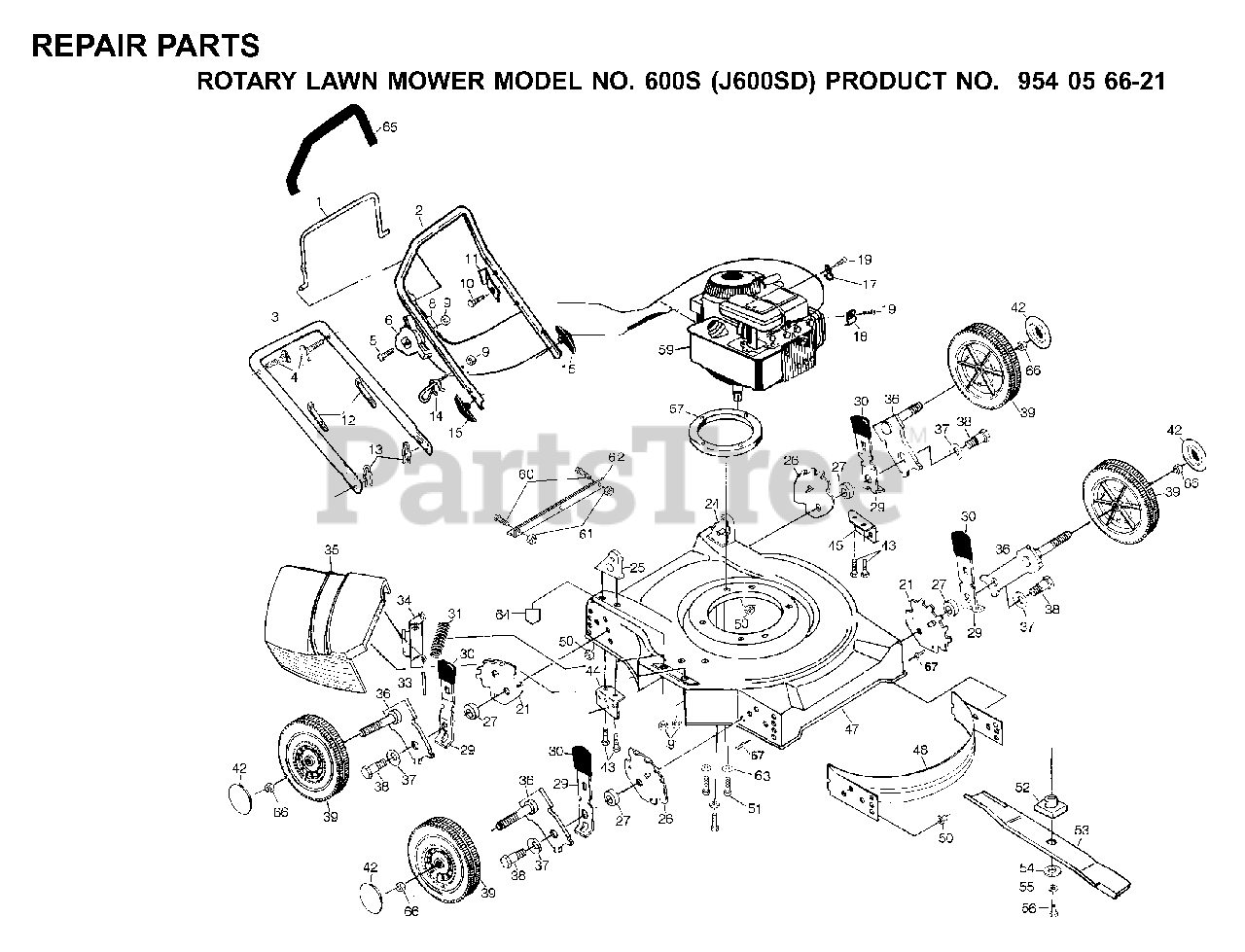

600 S (954056621) - Jonsered Walk-Behind Mower (2000-03) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title
1

Jonsered 532850735

CONTROL BAR/BLACK
(Superseded to 532800655)

$

$

Not available

2

Jonsered 532166355

No Description Available
(Superseded to 166355)

$

$

Not available

3

Jonsered 532159354

No Description Available
(Superseded to 532157082)

$

$

Not available

4

Jonsered 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

$

$

Not available

6

Jonsered 532851462

THROTTLE CONTROL
(Superseded to 532851463)

$

$

Not available

8

Jonsered 532130861

ENGINE ZONE CONTROL CABLE

$

$

Not available

9

Jonsered 532063601

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

10

Jonsered 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

11

Jonsered 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

12

Jonsered 53266426

No Description Available

$

$

Not available

13

Jonsered 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

14

Jonsered 532132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

15

Jonsered 532136376

HANDLE KNOB
(Superseded to 532183724)

$

$

Not available

17

Jonsered 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

18

Jonsered 532087930

GUIDE CLIP PM

$5.99

$

Usually ships in 3-10 days

0

19

Jonsered 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

21

Jonsered 532140836

BRACKET.WHL.ADJ.L
(Superseded to 532407493)

$

$

Not available

24

Jonsered 532170977

HANDLE BRACKET ASM. LH
(Superseded to 532170346)

$7.49

$

In Stock, only 1 left!

0

25

Jonsered 532170975

HANDLE BRACKET ASM. RH
(Superseded to 532170345)

$7.49

$

In Stock, only 1 left!

0

26

Jonsered 532140996

BRACKET.WHL.ADJ.R
(Superseded to 532407492)

$4.99

$

Usually ships in 3-10 days

0

27

Jonsered 532146630

RP SPACER HT ADJ
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

29

Jonsered 532141730

SELECTOR SPRING
(Superseded to 532700331)

$5.99

$

In Stock, only 2 left!

0

30

$6.49

$

In Stock, only 1 left!

0

31

Jonsered 532087589

SPRING PM

$6.49

$

Usually ships in 3-10 days

0

33

Jonsered 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 9

0

34

Jonsered 532087593

BRACKET PM

$6.99

$

Usually ships in 3-10 days

0

$

$

Not available

36

Jonsered 532149857

AXLE, REAR
(Superseded to 532145935)

$

$

Not available

37

Jonsered 532062335

BELLEVILLE WASHER

$9.99

$

Usually ships in 3-10 days

0

38

Jonsered 532142748

BOLT
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

39

Jonsered 532148436

No Description Available
(Superseded to 148436)

$9.49

$

Usually ships in 3-10 days

0

42

Jonsered 532077400

No Description Available

$7.49

$

In Stock, only 2 left!

0

43

Jonsered 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

44

Jonsered 532125424

No Description Available

$

$

Not available

45

Jonsered 532125423

No Description Available

$

$

Not available

47

Jonsered 532171941

No Description Available

$

$

Not available

48

Jonsered 532146026

No Description Available

$

$

Not available

--

Jonsered 532125046

No Description Available

$

$

Not available

50

Jonsered 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 2 left!

0

52

Jonsered 532850977

BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

53

Jonsered 532850972

%20"BLADE (FOR MODELS 50/51)
(Superseded to 532145106)

$20.99

$

Usually ships in 3-10 days

0

54

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

55

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

56

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

57

Jonsered 532701313

No Description Available

$

$

Not available

60

Jonsered 532085825

No Description Available
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

61

$6.49

$

Usually ships in 3-10 days

0

62

Jonsered 532154147

No Description Available

$

$

Not available

63

Jonsered 532053998

No Description Available

$

$

Not available

64

Jonsered 532145494

DECAL MOWER CUT/FINGER

$10.99

$

Usually ships in 3-10 days

0

65

Jonsered 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

66

Jonsered 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

67

Jonsered 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

--

Jonsered 532157759

No Description Available

$7.99

$

Usually ships in 3-10 days

0

--

Jonsered 532157758

No Description Available

$7.99

$

Usually ships in 3-10 days

0
